Product Details:
|
| Material: | Fiber Pipe | Colour: | Beige |
|---|---|---|---|
| Rated Voltage: | 600VDC | Rated Current: | 1000A |
| Breaking Capacity: | 50kA | Standard: | IEC60269, UL248 |
| Usage: | Overload Protection, Charging Station | Keyword: | NH Type HRC Fuse |
| High Light: | 50kA NH Type HRC Fuse,UL248 NH Type HRC Fuse,Thermal hrc fuse 100 amp |
||

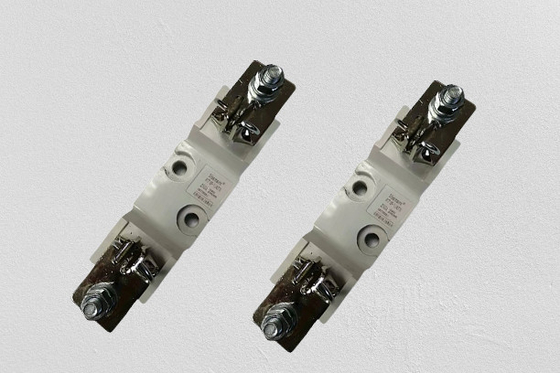

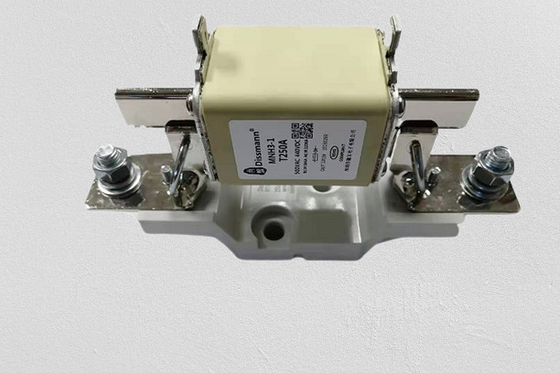

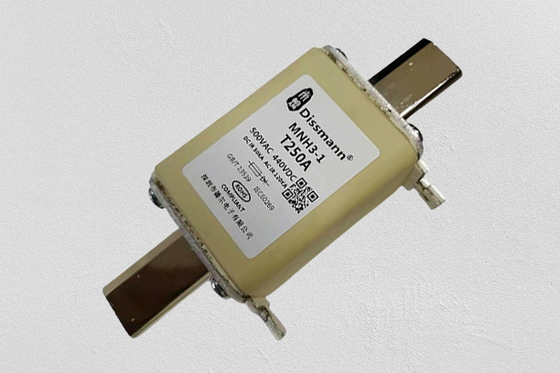

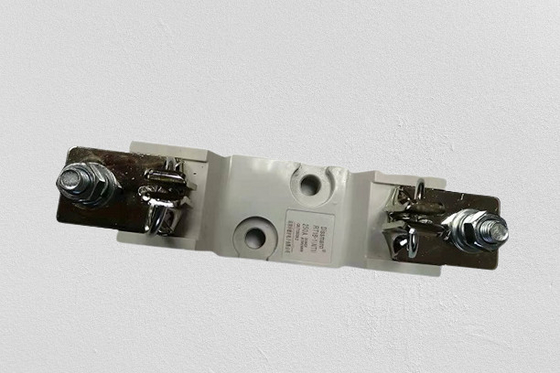

NH Type HRC Fuse Multiple Models Thermal 100a 250a 300a Fuse And Fuse Base
Material:
Noumenon: fiber pipe
Pins: Alloy
Features:
High Breaking Capacity Fuse
Many kinds of High Breaking Capacity Fuse
Current rating: 6A-630A
Voltage rating: AC500V/DC440V or lower
Breaking capacity:AC500V/120kA DC440V/50kA
Product Presentation:
|
Rated Voltage |
AC500V/DC440V |
Type Protection |
aR |
| Rated Current | 6A-630A |
Breaking Capacity |
AC500V/120kA DC440V/50kA (time constant 15-20ms) |
|
Meet the Requirement |
UL248-13,IEC60269.4 EU and Rosh Directive |
Remarks |
Overall dimensions of the product(mm)
| MNH3-00 | MNH3-1 | MNH3-2 | MNH3-3 | |
| a1 | 7.85±1.5 | 135±2.5 | 150±2.5 | 150±2.5 |
| a20-5 | 54 | 72 | 72 | 72 |
| a3 | 45±1.5 | 62±2.5 | 62±2.5 | 62±2.5 |
| f(Max) | 15 | 15 | 15 | 18 |
| b±0.2 | 15 | 20 | 25 | 32 |
| e1±3 | 57 | 62 | 72 | 82 |
| e2 | 29±1 | 48±2 | 58±2 | 67±3 |
Product type of EV Fuse
| Model | Rated Current | I2t(A2s) | Power dissipation | Size code | |
| 总 | |||||
| MNH3-00-T6A | 6 | 14 | 137 | 1.7 | 0 |
| MNH3-00-T10A | 10 | 60 | 280 | 2 | |
| MNH3-00-T16A | 16 | 280 | 960 | 3.1 | |
| MNH3-00-T20A | 20 | 580 | 2200 | 3.3 | |
| MNH3-00-T25A | 25 | 1050 | 3900 | 3.5 | |
| MNH3-00-T32A | 32 | 2050 | 5900 | 4.1 | |
| MNH3-00-T40A | 40 | 3800 | 9700 | 4.9 | |
| MNH3-00-T50A | 50 | 5200 | 13500 | 5.3 | |
| MNH3-00-T63A | 63 | 6600 | 20500 | 6.3 | |
| MNH3-00-T80A | 80 | 10500 | 30500 | 6.9 | |
| MNH3-00-T100A | 100 | 19500 | 59000 | 8.5 | |
| MNH3-00-T125A | 125 | 39500 | 119000 | 9.5 | |
| MNH3-00-T160A | 160 | 72000 | 192000 | 11.5 | |
| MNH3-1-T80A | 80 | 9900 | 29800 | 7.8 | 1 |
| MNH3-1-T100A | 100 | 19000 | 55000 | 9.6 | |
| MNH3-1-T125A | 125 | 39000 | 11800 | 11.5 | |
| MNH3-1-T160A | 160 | 69000 | 185000 | 12.8 | |
| MNH3-1-T200A | 200 | 119000 | 260000 | 15 | |
| MNH3-1-T224A | 224 | 169000 | 390000 | 17 | |
| MNH3-1-T250A | *250 | 240000 | 498000 | 20 | |
| MNH3-2-T125A | 125 | 39000 | 118000 | 12 | 2 |
| MNH3-2-T160A | 160 | 68000 | 175000 | 13.5 | |
| MNH3-2-T200A | 200 | 99000 | 250000 | 16 | |
| MNH3-2-T224A | 224 | 155000 | 380000 | 17.5 | |
| MNH3-2-T250A | *250 | 220000 | 485000 | 21 | |
| MNH3-2-T300A | 300 | 340000 | 750000 | 24 | |
| MNH3-2-T315A | 315 | 380000 | 860000 | 25 | |
| MNH3-2-T355A | 355 | 525000 | 1170000 | 28 | |
| MNH3-3-T400A | 400 | 720000 | 1550000 | 31 | |
| MNH3-3-T315A | 315 | 380000 | 860000 | 25 | 3 |
| MNH3-3-T355A | 355 | 510000 | 1150000 | 29 | |
| MNH3-3-T400A | *400 | 720000 | 1650000 | 31 | |
| MNH3-3-T425A | 425 | 885000 | 1980000 | 34 | |
| MNH3-3-T500A | *500 | 1240000 | 2950000 | 38 | |
| MNH3-3-T630A | 630 | 1820000 | 5300000 | 44 | |
Product Description
This series fuse is suitable for AC 50Hz,rated voltage to 660V,rated current to 1000A.lt is mainly used in the electric installation for protecting ircuit from overload and short circuit(gG/GL);it also may derive for protecting the semiconductor device and others complete set installment from hort-circuit(aR)as well as the electric motor from short-circuit(aM). he rated breaking capability for this series fuse is to 120KA.This series fuse conforms to national standard GB13539 and International electrical committee standard IEC60269.
