Product Details:
|
| Material: | Ceramic | Standard: | IEC60269-4 |
|---|---|---|---|
| Certificate: | UL, TUV | Rated Current: | 5A ~ 800A |
| Rated Voltage: | 500V ~ 1000VDC/VAC | ||
| High Light: | 1000VDC NH Type HRC Fuse,EV NH Type HRC Fuse,125 amp hrc fuse |
||

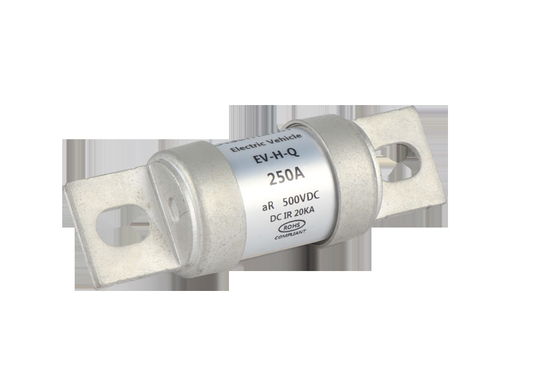

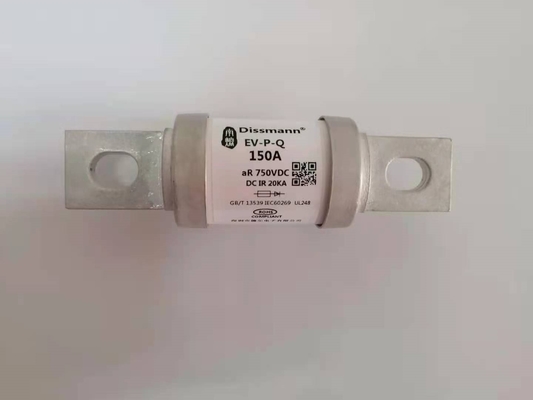

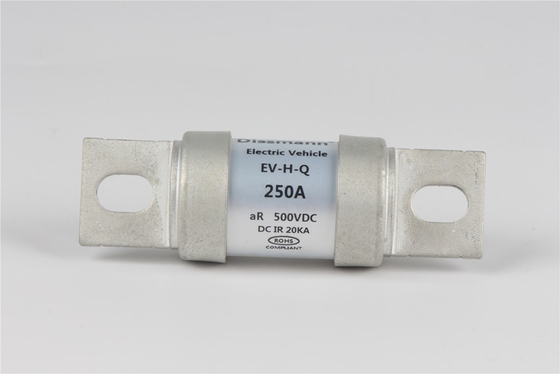

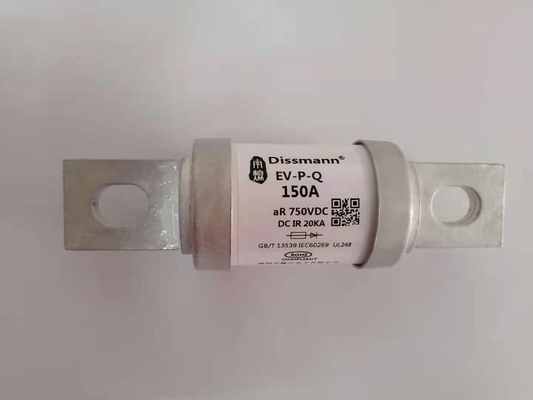

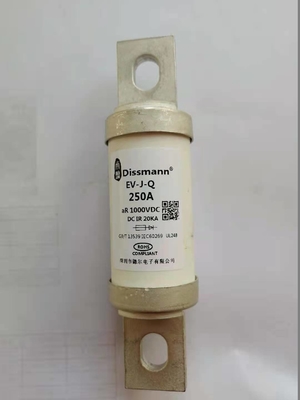

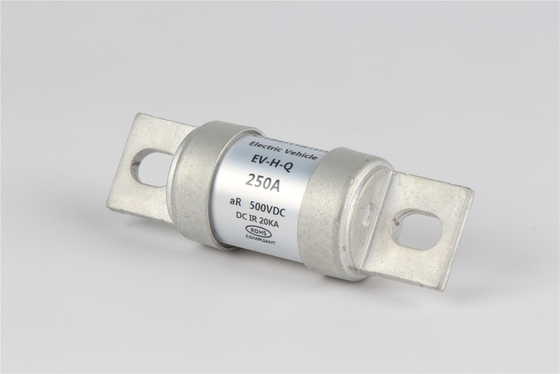

125 Amp NH Type HRC Fuse 1000VDC Rated For EV Charging Pile
Material:
Noumenon:Ceramic
Pins: Alloy
Features:
EV Charging Pile Fuse
Many kinds of EV Charging Pile Fuse
Current rating: 150A
Voltage rating: AC250V/DC150V
Breaking capacity:DC20KAAC100KA,DC20KA
Product Presentation:
|
Rated Voltage |
AC690/DC750V |
Type Protection |
aR |
| Rated Current | 10A-500A |
Breaking Capacity |
AC100KA,DC20KA |
|
Meet the Requirement
|
UL248-20,ISO8820,JASO-D622, EU and Rosh Directive |
Remarks
|
UL |
Overall dimensions of the product(mm)
|
Model |
Size code |
A±2 |
B±1.5 |
C±1 |
D±1.5 |
F±1 |
G±0.5 |
H±0.2 |
J±1 |
|
EV-P-Q |
VP1 |
109 |
30.4 |
68.5 |
90 |
9 |
25 |
4 |
13 |
|
VP2 |
129.5 |
37.3 |
65.5 |
98.5 |
11 |
25 |
6 |
15 |
|
|
VP3 |
155.5 |
53.5 |
91.2 |
125.3 |
12.5 |
40 |
6 |
20 |
Product type of EV Charging Pile
| Model | Rated current | I²t(A²s) | Power consumption | Size Code | Install | |
| Pre-arc | Fuse Blowing | |||||
| EV-P-Q-30 | 30 | 450 | 950 | 9 | VP1 | Mounting Bolt M8 recommended torque 11N·m |
| EV-P-Q-40 | 40 | 750 | 1800 | 11 | ||
| EV-P-Q-50 | 50 | 1250 | 2800 | 13 | ||
| EV-P-Q-60 | 60 | 1800 | 4700 | 15 | ||
| EV-P-Q-70 | 70 | 2400 | 6300 | 17 | ||
| EV-P-Q-80 | 80 | 3000 | 8500 | 20 | ||
| EV-P-Q-100 | 100 | 4800 | 12000 | 22 | ||
| EV-P-Q-125 | 125 | 1300 | 23800 | 22 | VP2 | Mounting Bolt M10 recommended torque 20N·m |
| EV-P-Q-150 | 150 | 1550 | 34000 | 25 | ||
| EV-P-Q-175 | 175 | 1800 | 46500 | 30 | ||
| EV-P-Q-200 | 200 | 2450 | 55000 | 34 | ||
| EV-P-Q-250 | 250 | 4300 | 95000 | 42 | ||
| EV-P-Q-300 | 300 | 6200 | 142000 | 50 | ||
| EV-P-Q-350 | 350 | 9150 | 200000 | 60 | ||
| EV-P-Q-400 | 400 | 12300 | 260000 | 69 | ||
| EV-P-Q-350 | 350 | 59000 | 158000 | 65 | ||
| EV-P-Q-400 | 400 | 77000 | 205000 | 80 | ||
| EV-P-Q-450 | 450 | 96000 | 269000 | 95 | VP3 | Mounting Bolt M12 recommended torque 28N·m |
| EV-P-Q-500 | 500 | 118000 | 328000 | 110 | ||
| EV-P-Q-600 | 600 | 175000 | 471000 | 115 | ||
| EV-P-Q-800 | 800 | 302000 | 800000 | 140 | ||
Product Applications
Test Equipment
Production equipment
