Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 32VDC | Rated Current:: | 10A-400A |
| Breaking Capacity:: | DC2700A | Standard:: | UL248-13、ISO8820、 JASO-D622、IEC60269 |
| Usage:: | Solar Combiner Box,telecom Power,pv Inverter | Keyword：: | Pv Inverter Fuse |
| High Light: | DC10KA high breaking capacity fuse,IEC60269 high breaking capacity fuse,DC10KA solar charge controller fuse |
||

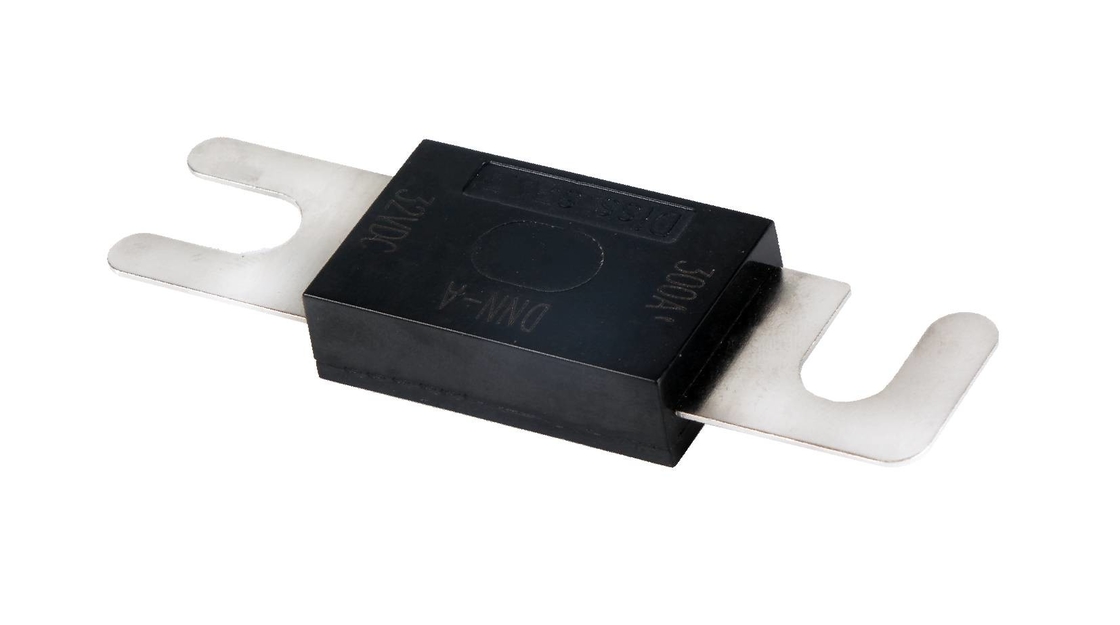

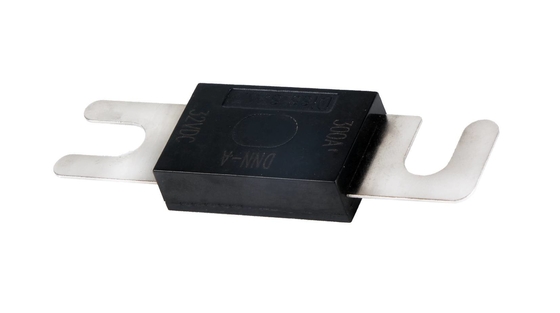

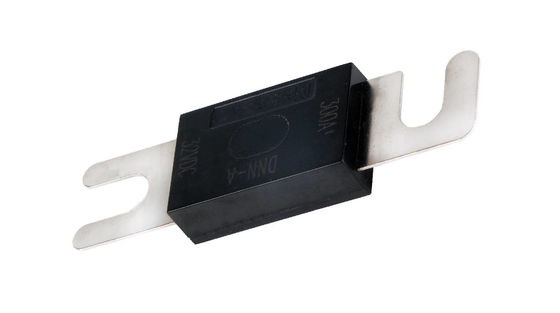

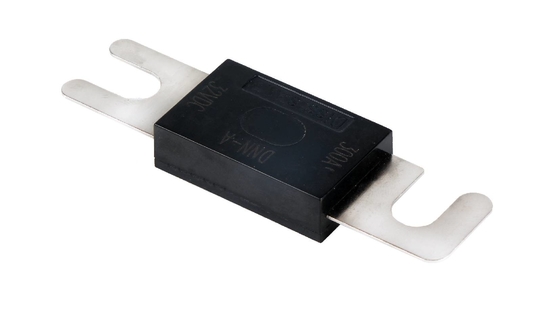

European Square Fuse Solar Combiner Box Fuse Pv Inverter Fuse
Material:
Noumenon: Electric Wood Shell
Pins: Cooper Alloy
Product Presentation:
|
Rated Voltage 额定电压 |
32VDC |
Type Protection 保护类别 |
Time-lag |
| Rated Current 额定电流 | 10A-500A |
Breaking Capacity 分断能力 |
DC2700A |
|
Meet the Requirement 符合要求 |
UL248-13,ISO8820,JASO-D622, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
制造材料/Manufacturing material
|
Component name 部件名称 |
Material 材料 |
|
Contact the foot 接触脚 |
Copper alloy 铜合金 |
|
Noumenon 本体 |
Electric wood shell 电木壳 |
性能标准/Performance criteria
| Load(测试电流) | Opening time(熔断时间) | |
| 10A～500A | ||
| 最小时间 min | 最大时间 max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(200A及以下) | 0 | 100 |
| 200%(200A以上) | 0 | 300 |
| 250%(200A及以下) | 0 | 60 |
| 250%(200A以上) | 0.8 | 120 |
| 600% | 0.02 | 10 |
|
Model 型号 |
Product code 产品代码 |
Rated current 额定电流 A |
Installation requirement 安装要求 |
| DNN-A | DNN-A-35 | 35 |
Install bolt M8, recommended torque 10N·m ±1 N·m 安装螺栓M8,推荐扭矩10N·m±1 N·m |
| DNN-A-40 | 40 | ||
| DNN-A-50 | 50 | ||
| DNN-A-60 | 60 | ||
| DNN-A-80 | 80 | ||
| DNN-A-100 | 100 | ||
| DNN-A-125 | 125 | ||
| DNN-A-130 | 130 | ||
| DNN-A-150 | 150 | ||
| DNN-A-175 | 175 | ||
| DNN-A-200 | 200 | ||
| DNN-A-225 | 225 | ||
| DNN-A-250 | 250 | ||
| DNN-A-275 | 275 | ||
| DNN-A-300 | 300 | ||
| DNN-A-325 | 325 | ||
| DNN-A-350 | 350 | ||
| DNN-A-400 | 400 | ||
| DNN-A-425 | 425 | ||
| DNN-A-450 | 450 | ||
| DNN-A-500 | 500 |
