Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 1000VDC | Rated Current: | 6A-700A |
| Breaking Capacity: | DC20KA | Standard: | UL248-20、ISO8820、 JASO-D622、GB/T13539、ROHS |
| Usage: | High Voltage Automotive，PV | Keyword: | High Voltage Automotive Fuse |
| High Light: | JASO-D622 High Current Automotive Fuses,1000VDC High Current Automotive Fuses,Ceramic High Voltage Automotive Fuse |
||

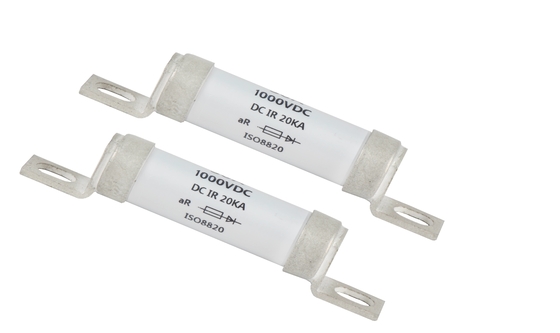

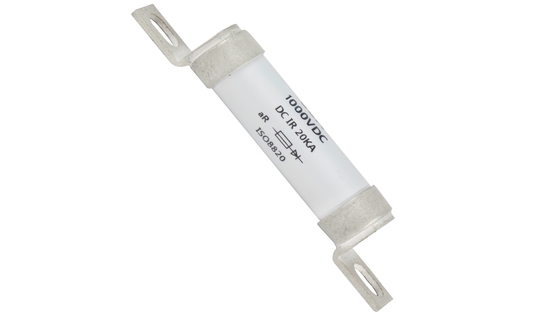

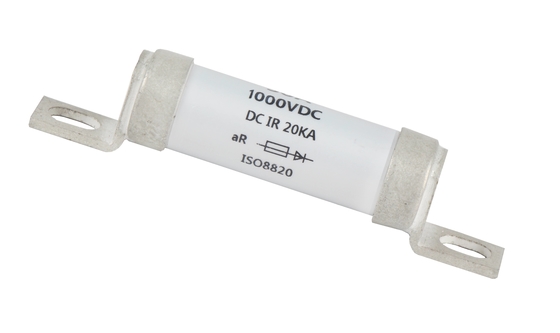

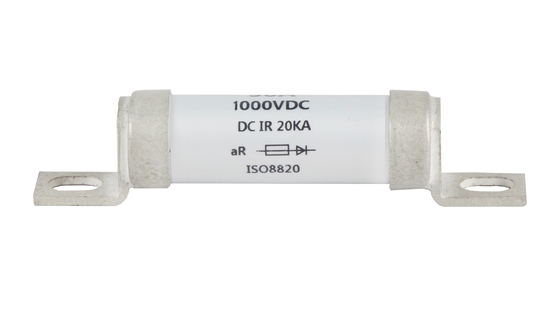

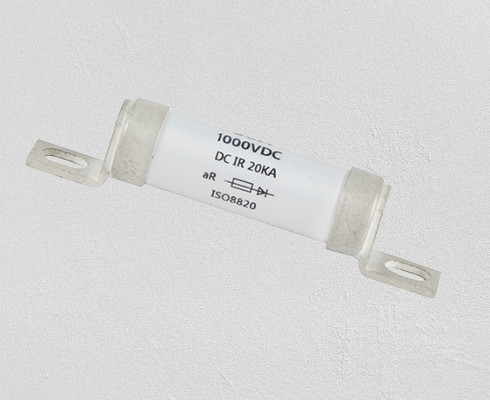

High Voltage Automotive Fuse BS88 Cartridge Fuse 20KA DC Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
High Voltage Automotive Fuse
Many kinds of High Voltage Automotive Fuse
Current rating:6A-700A
Voltage rating: 1000VDC
Breaking capacity:DC20KA
Product Presentation:
|
Rated Voltage 额定电压 |
DC1000V或低于 |
Type Protection 保护类别 |
aR |
|
Rated Current 额定电流 |
6A-700A |
Breaking Capacity 分断能力 |
DC20KA |
|
Meet the Requirement 符合要求 |
UL248-20,ISO8820,JASO-D622,GB/T13539, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
产品型号/Product type
|
Number 序号 |
Model 型号 |
Product code 产品代码 |
Rated current 额定电流 A |
I²t(A²Sec) |
Power consumption 功率损耗 W |
|
| 弧前 | 熔断 | |||||
| 1 | CPJ/CTJ | HBD-6CPJ/HBD-6CTJ | 6 | 2.2 | 13.5 | 2.0 |
| HBD-10CPJ/HBD-10CTJ | 10 | 7.4 | 48.0 | 3.0 | ||
| HBD-12CPJ/HBD-12CTJ | 12 | 10.5 | 67 | 3.2 | ||
| HBD-16CPJ/HBD-16CTJ | 16 | 17.0 | 110 | 7.0 | ||
| 2 | EPJ/ETJ | HBD-16EPJ/HBD-16ETJ | 16 | 26.0 | 132 | 3.2 |
| HBD-20EPJ/HBD-20ETJ | 20 | 41.0 | 228.0 | 3.5 | ||
| HBD-25EPJ/HBD-25ETJ | 25 | 26.5 | 257.0 | 7.0 | ||
| HBD-32EPJ/HBD-32ETJ | 32 | 33.0 | 350.0 | 11.0 | ||
| HBD-35EPJ/HBD-35ETJ | 35 | 52.8 | 500.0 | 11.2 | ||
| HBD-40EPJ/HBD-40ETJ | 40 | 108.0 | 910.0 | 9.0 | ||
| HBD-45EPJ/HBD-45ETJ | 45 | 110.0 | 1100.0 | 9.6 | ||
| HBD-50EPJ/HBD-50ETJ | 50 | 123.0 | 1250.0 | 10.8 | ||
| HBD-56EPJ/HBD-56ETJ | 56 | 140.0 | 1550.0 | 13.5 | ||
| HBD-63EPJ/HBD-63ETJ | 63 | 170.0 | 1990.0 | 15.5 | ||
| HBD-80EPJ/HBD-80ETJ | 80 | 360.0 | 4000.0 | 18.0 | ||
| 3 | HPJ/HTJ | HBD-32HPJ/HBD-32HTJ | 32 | 110 | 1300 | 10.8 |
| HBD-40HPJ/HBD-40HTJ | 40 | 170 | 2200 | 13.0 | ||
| HBD-50HPJ/HBD-50HTJ | 50 | 270 | 3400 | 16.0 | ||
| HBD-63HPJ/HBD-63HTJ | 63 | 490 | 6100 | 19.3 | ||
| HBD-80HPJ/HBD-80HTJ | 80 | 920 | 11400 | 23.0 | ||
| HBD-100HPJ/HBD-100HTJ | 100 | 1500 | 18800 | 28.5 | ||
| HBD-125HPJ/HBD-125HTJ | 125 | 2500 | 30800 | 34.0 | ||
| HBD-160HPJ/HBD-160HTJ | 160 | 4400 | 54800 | 37.3 | ||
| 4 | EEPJ/EETJ | HBD-90EEPJ/HBD-90EETJ | 90 | 500 | 4510 | 19.0 |
| HBD-110EEPJ/HBD-110EETJ | 110 | 610 | 6700 | 26.5 | ||
| HBD-140EEPJ/HBD-140EETJ | 140 | 1100 | 12000 | 34.0 | ||
| HBD-160EEPJ/HBD-160EETJ | 160 | 1600. | 17000 | 38.0 | ||
| 5 | SMJ/STJ | HBD-180SMJ/HBD-180STJ | 180 | 1390 | 13400 | 39.2 |
| HBD-200SMJ/HBD-200STJ | 200 | 2600 | 17900 | 40.0 | ||
| HBD-225SMJ/HBD-225STJ | 225 | 3600 | 25400 | 42.5 | ||
| HBD-250SMJ/HBD-250STJ | 250 | 5050 | 36000 | 47.0 | ||
| HBD-280SMJ/HBD-280STJ | 280 | 6950 | 52000 | 48.0 | ||
| HBD-315SMJ/HBD-315STJ | 315 | 9900 | 72800 | 54.0 | ||
| HBD-350SMJ/HBD-350STJ | 350 | 14400 | 98000 | 55.5 | ||
| HBD-400SMJ/HBD-400STJ | 400 | 19000 | 128000 | 58.0 | ||
| 6 | SMMJ/STTJ | HBD-400SMMJ/HBD-400STTJ | 400 | 9800 | 69700 | 84.0 |
| HBD-450SMMJ/HBD-450STTJ | 450 | 14300 | 96000 | 90.0 | ||
| HBD-500SMMJ/HBD-500STTJ | 500 | 19500 | 138000 | 97.5 | ||
| HBD-550SMMJ/HBD-550STTJ | 550 | 27900 | 197000 | 100.0 | ||
| HBD-630SMMJ/HBD-630STTJ | 630 | 41200 | 275000 | 102.0 | ||
| HBD-700SMMJ/HBD-700STTJ | 700 | 55500 | 375000 | 119.5 | ||
