Product Details:
|
| Material: | Ceramic | Colour: | Blue,Yellow,Red,Green |
|---|---|---|---|
| Rated Voltage: | 32VDC | Rated Current: | 2A-30A |
| Breaking Capacity: | DC1KA | Standard: | UL248、ISO8820、ROHS |
| Usage: | Automotive | Keyword: | Automotive Fuse |
| High Light: | Ceramic miniature cartridge fuse,ISO8820 miniature cartridge fuse,1000 amp fuse |
||

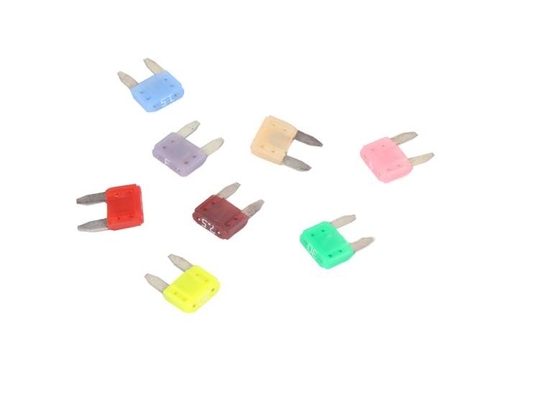

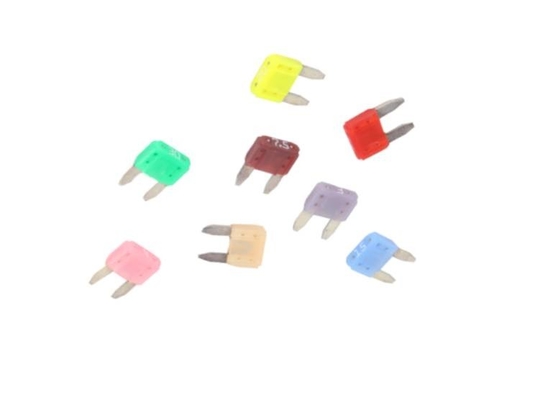

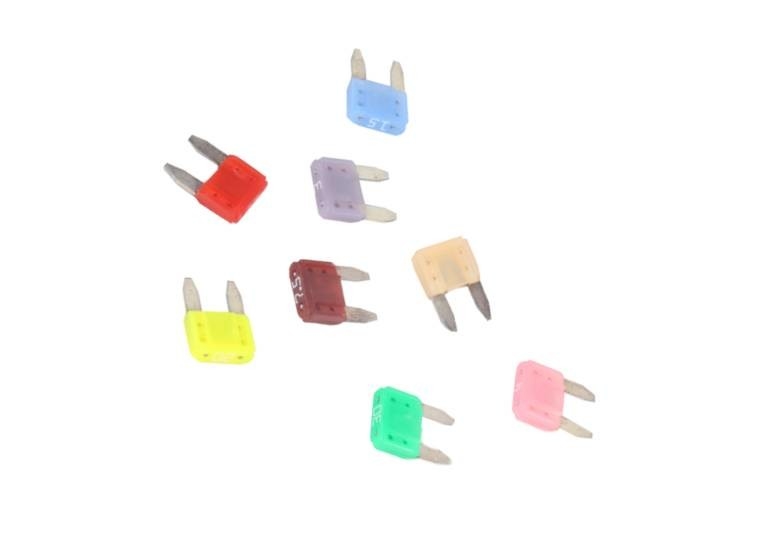

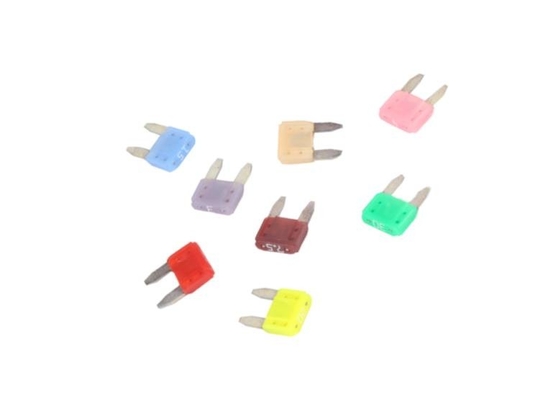

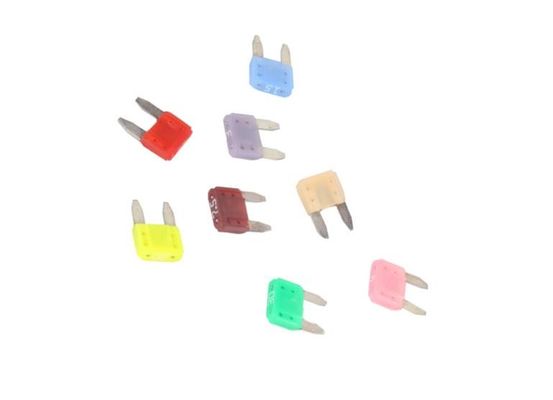

32volt Dc Fuse Low Current Fuse Mini Cartridge Fuse 1KA DC Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
Mini Cartridge Fuse
Many kinds of Mini Cartridge Fuse
Current rating:2A-30A
Voltage rating: 32VDC
Breaking capacity:DC1KA
Product Presentation:
|
Rated Voltage
|
32VDC |
Characteristic
|
Fast Blowing |
| Rated Current | 2A-30A |
Breaking Capacity
|
DC1000A |
|
Meet the Requirement
|
UL248,ISO8820, EU and Rosh Directive |
Remarks
|
UL |
Overall dimensions of the product(mm)
Current characteristic curve of Ceramic Miniature Cartridge Fuse
Product type of Ceramic Fuse
| Model | Product code | Rated current | I²t | Voltage drop | Pigment |
| (A²Sec) | |||||
| DKN-A | DKN-A-2 | 2 | 2.8 | 170 | (Gray) |
| DKN-A-3 | 3 | 9.3 | 152 | (Violet) | |
| DKN-A-4 | 4 | 17 | 120 | (Pink) | |
| DKN-A-5 | 5 | 24 | 128 | (Tan) | |
| DKN-A-7.5 | 7.5 | 66 | 135 | (Brown) | |
| DKN-A-10 | 10 | 92 | 108 | (Red) | |
| DKN-A-15 | 15 | 270 | 98 | (Blue) | |
| DKN-A-20 | 20 | 380 | 96 | (Yellow) | |
| DKN-A-25 | 25 | 620 | 85 | (Clear) | |
| DKN-A-30 | 30 | 1120 | 86 | (Green) |
Performance criteria
| Test current item(A) | Current | Minimum time(s) | Maximum time(s) |
| 110% | 2A-30A | 360000 | ∞ |
| 135% | 2A-30A | 0.75 | 600 |
| 200% | 2A-30A | 0.15 | 5 |
| 350% | 2A-30A | 0.08 | 0.5 |
| 600% | 2A-30A | 0.03 | 0.1 |
