Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 58VDC | Rated Current: | 200A |
| Breaking Capacity: | DC1500A | Standard: | UL248-20、ISO8820、 JASO-D622、ROHS |
| Usage: | Automotive,Charging Pile | Keyword: | Automotive Fuse |
| High Light: | 58VDC NH Type HRC Fuse,200A NH Type HRC Fuse,Low Breaking Capacity Fuse |
||

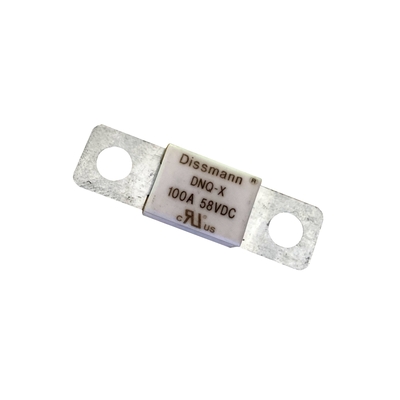

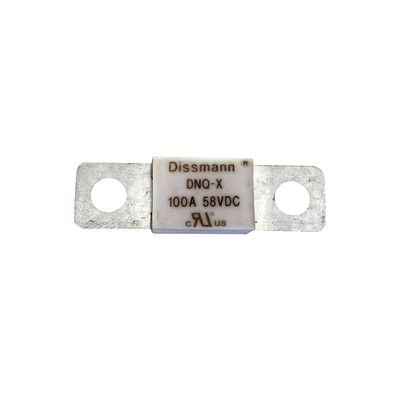

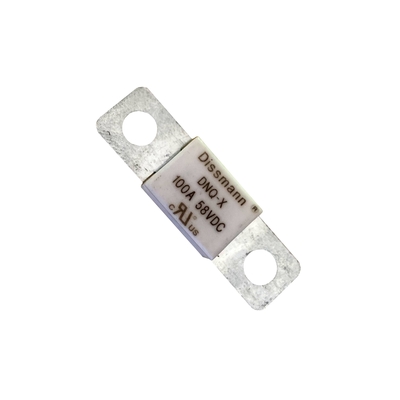

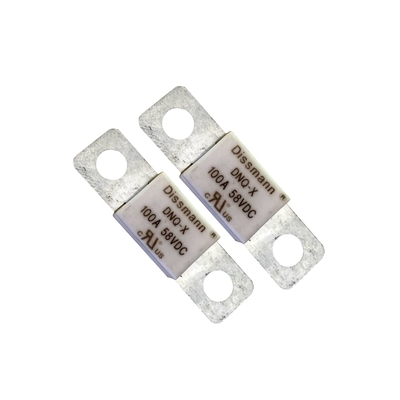

Low Current Fuse 58volt DC Fuse Low Breaking Capacity Fuse Automotive Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Product Presentation:
|
Rated Voltage |
32VDC/58VDC/80VDC |
Type Protection |
Time-lag |
| Rated Current | 5A-200A |
Breaking Capacity |
DC1500A |
|
Meet the Requirement
|
UL248-20,ISO8820,JASO-D622, Europe and RoHs Directive |
Remarks
|
UL |
Overall dimensions of the product(mm)
Manufacturing material
|
Component name |
Material |
|
Contact the foot |
Kirsite / Copper alloy |
|
Noumenon |
Ceramics |
Product type
|
Model
|
Rated current |
Rated voltage |
Rated voltage |
| DNQ-A | 5A～200A | 32Vdc | 1.5KA |
| DNQ-X | 5A～200A | 58Vdc | 1.5KA |
| DNQ-H | 5A～200A | 80Vdc | 1.5KA |
| DNM-A | 5A～200A | 32Vdc | 1.5KA |
| DNM-X | 5A～200A | 58Vdc | 1.5KA |
| DNM-H | 5A～200A | 80Vdc | 1.5KA |
UL certificate:
