Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt

Certification
China Dissmann | Global Expert Fuse for EV | HEV | Photovoltaic | Battery | Energy Storage Solutions certification
China Dissmann | Global Expert Fuse for EV | HEV | Photovoltaic | Battery | Energy Storage Solutions certification
I'm Online Chat Now

Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt

Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt
Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt

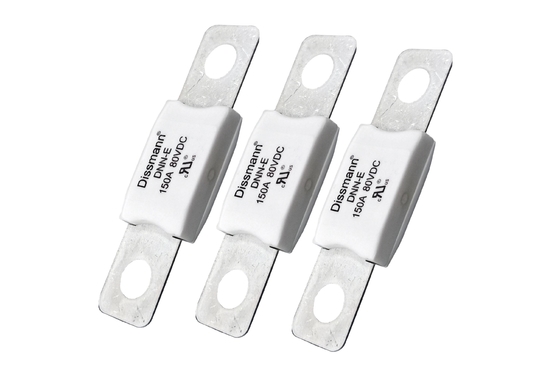

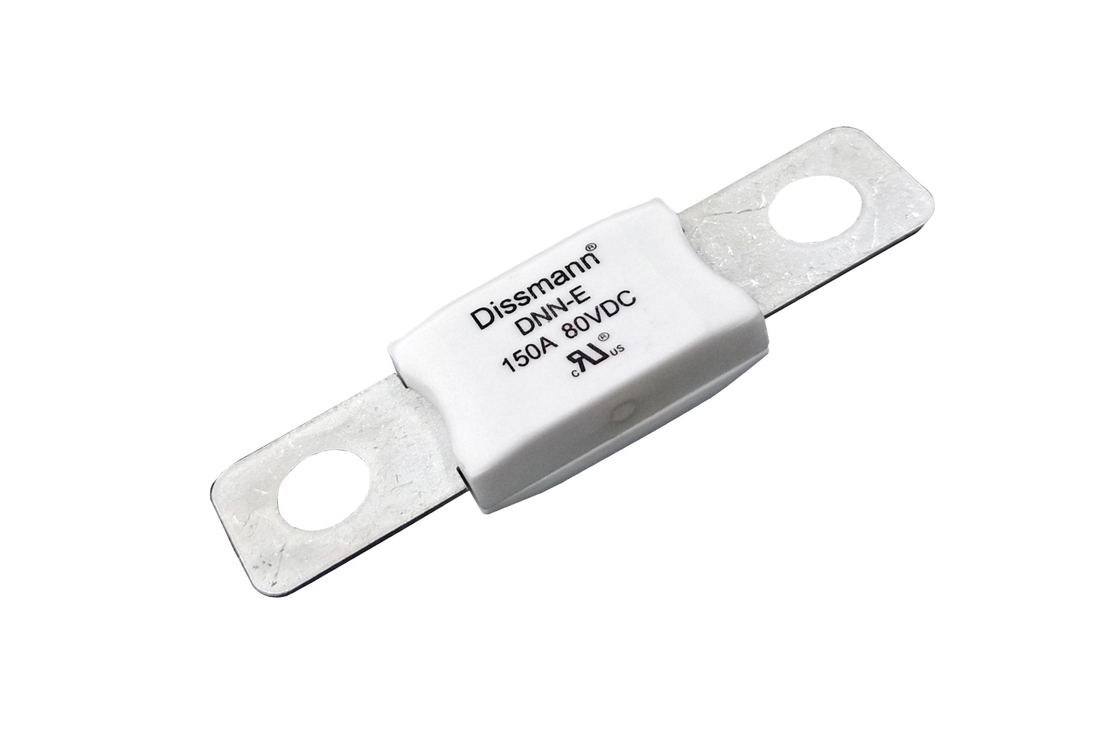

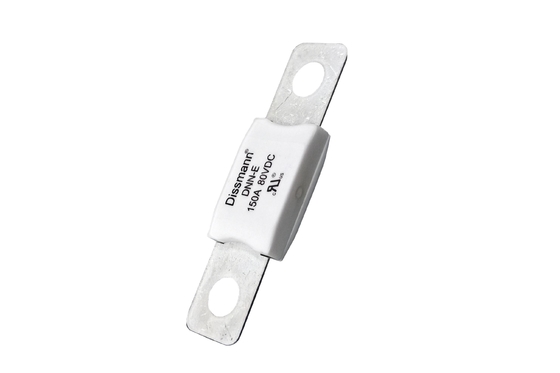

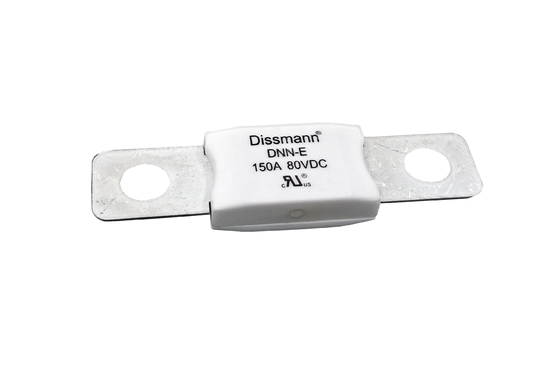

Large Image :  Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL
Model Number: DNN-E
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs

Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt

Description
Material: Ceramic Colour: White
Rated Voltage: 80VDC Rated Current: 150A
Breaking Capacity: DC2700A Standard: UL248-13、ISO8820、 JASO-D622、ROHS
Usage: Automotive,Charging Pile Keyword: Automotive Fuse
High Light:

ISO8820 150 amp cartridge fuse

,

150 amp cartridge fuse

,

80volt cartridge fuse for car

80volt DC Fuse Low Current Fuse Automotive Cartridge Fuse Mini Fuse



Material:
Noumenon: Ceramic
Pins: Copper alloy



Product Presentation:

Rated Voltage

32VDC/58VDC/80VDC

Type Protection

Time-lag
Rated Current  10A-500A

Breaking Capacity

DC2700A

Meet the Requirement

UL248-13,ISO8820,JASO-D622,EU and Rosh Directive

Remarks

UL



Overall dimensions of the product(mm)

Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt 0Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt 1



    Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt 2



Manufacturing material

Component name

Material

Contact the foot

copper alloy

Noumenon

Ceramics



Product type of Mini Cartridge Fuse

Rated current

Rated voltage

Rated voltage

10A~500A 32Vdc 2700A
10A~500A 58Vdc 2700A
10A~500A 80Vdc 2700A



UL Certificate

Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt 3


Test equipment
Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt 4

Production equipment
Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt 5
Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt 6

Our Certificates
Mini 150 Amp Cartridge Fuse ISO8820 Standard Low Current 80volt 7
