Product Details:
|
| Material: | PBT | Colour: | Red,Green,Yellow,Blue,Yellow |
|---|---|---|---|
| Rated Voltage: | 32VDC | Rated Current: | 1A-40A |
| Breaking Capacity: | DC1KA | Standard: | UL248、ISO8820、ROHS |
| Usage: | Automotive | Keyword: | Automotive Fuse |
| High Light: | 32VDC NH Type HRC Fuse,DC1000A NH Type HRC Fuse,low voltage hrc fuse |
||

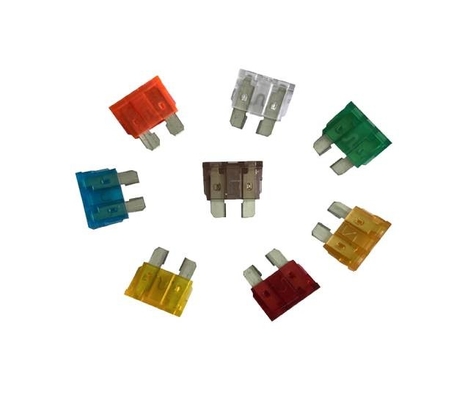

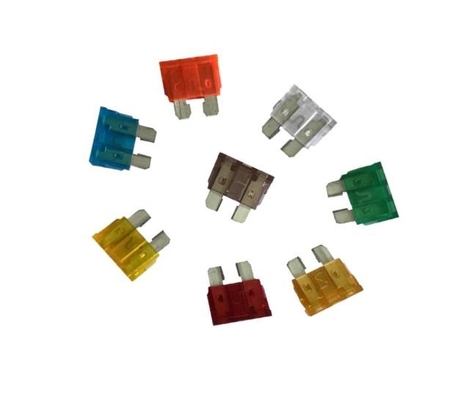

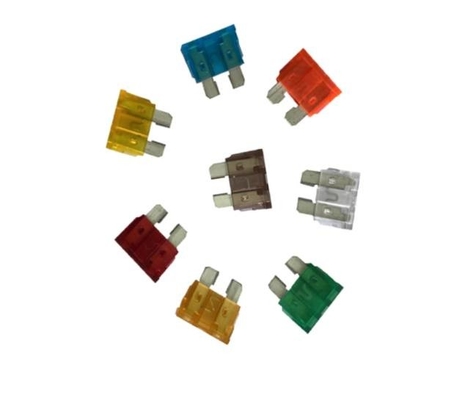

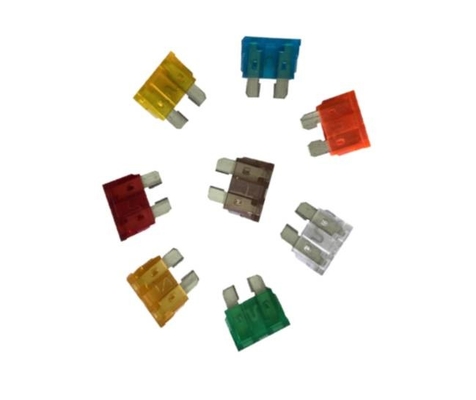

Low Voltage Fuse Low Current Automotive Fuse Low Breaking Capacity Fuse
Material:
Noumenon: PBT
Pins: Copper alloy
Product Presentation:
|
Rated Voltage 额定电压 |
32VDC |
Characteristic 特性 |
F快断 |
| Rated Current 额定电流 | 1A-40A |
Breaking Capacity 分断能力 |
DC1000A |
|
Meet the Requirement 符合要求 |
UL248,ISO8820, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
产品型号/Product type
|
Model 型号 |
Product code 产品代码 |
Rated current 额定电流 A |
I²t (A²Sec) |
Voltage drop 电压降 mV |
Pigment 颜色 |
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | 黑色(Black) |
| DFN-A-2 | 2 | 1.5 | 140 | 灰色(Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | 浅紫色(Violet) | |
| DFN-A-4 | 4 | 13 | 135 | 粉红色(Pink) | |
| DFN-A-5 | 5 | 25 | 125 | 浅棕色(Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | 棕色(Brown) | |
| DFN-A-10 | 10 | 110 | 110 | 红色(Red) | |
| DFN-A-15 | 15 | 295 | 102 | 蓝色(Blue) | |
| DFN-A-20 | 20 | 480 | 96 | 黄色(Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | 透明色(Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | 绿色(Green) | |
| DFN-A-35 | 35 | 2205 | 88 | 深绿色(Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | 橙色(Orange) |
电流特性曲线图/
Current characteristic curve
