Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 10A-500A | Rated Voltage: | 32VDC/58VDC/80VDC |
| Keyword: | Low Voltage Bolt Type Fuse | Breaking Capacity: | DC2700A |
| Installation: | Bolt On | Application: | Electric Vehicle |
| High Light: | Bolt Type Ceramic Automotive Fuses,58VDC Bolt Type Fuse,80VDC Bolted Fuses |
||
Any datasheet&specification,pls feel free to contact by email:holly@delfuse.com or whatsapp me:+8618813915908

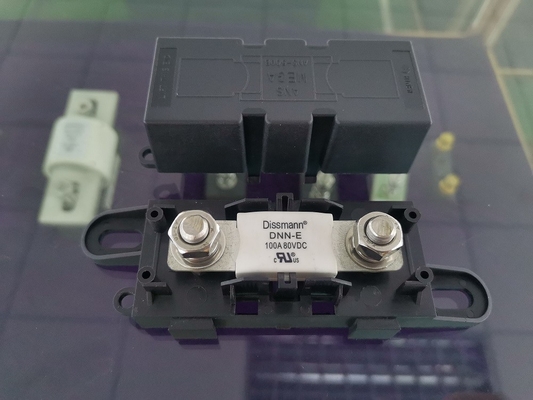

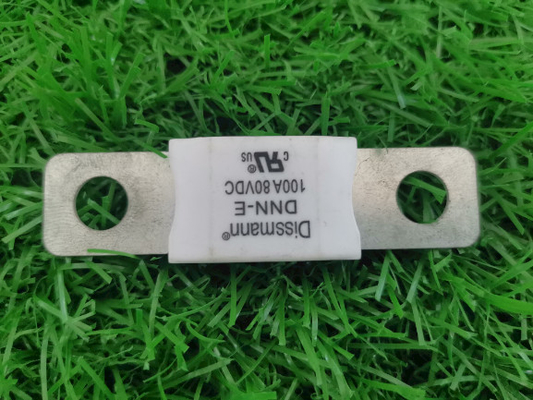

32VDC ceramic bolt type fuses
Specification of the 32VDC ceramic fuse
DNN-C/D/E Series Fuses, Dimension and performance conform to UL248,GB13539,IEC60268, GB31465.
Rated Voltage: 32/58/80DC,Rated Current:10-500A, Breaking capacity: DC2700A.
UL certificate number:E496054
Scope of the 32VDC ceramic fuse
32VDC and below DC voltage.
The rated voltage of this product is 32VDC. It is used in circuits whose actual working voltage is lower than or equal to 32VDC. If it is used in a working voltage environment higher than the rated 32VDC voltage of this product, it may cause serious adverse consequences,The company does not accept responsibility.
Dimension of the 32VDC ceramic fuse
Manufacturing material
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
Performance test requirements
| Load | Opening time | |
| 80A | ||
| minimum time | Max time | |
| 100% | 14400s | ∞ |
| 200% | 0 | 100s |
| 600% | 0 | 1s |
