Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 150VDC/240VAC | Current Rating:: | 400A |
| Size:: | 29&18mm | Usage:: | EV,power Optimizer,inverter |
| Keyword:: | EV Fuse | Standard:: | UL248-20、ISO8820、 JASO-D622、ROHs |
| High Light: | 240VAC Ceramic Automotive Fuses,ROHs Ceramic Automotive Fuses,18mm stud mount fuse |
||

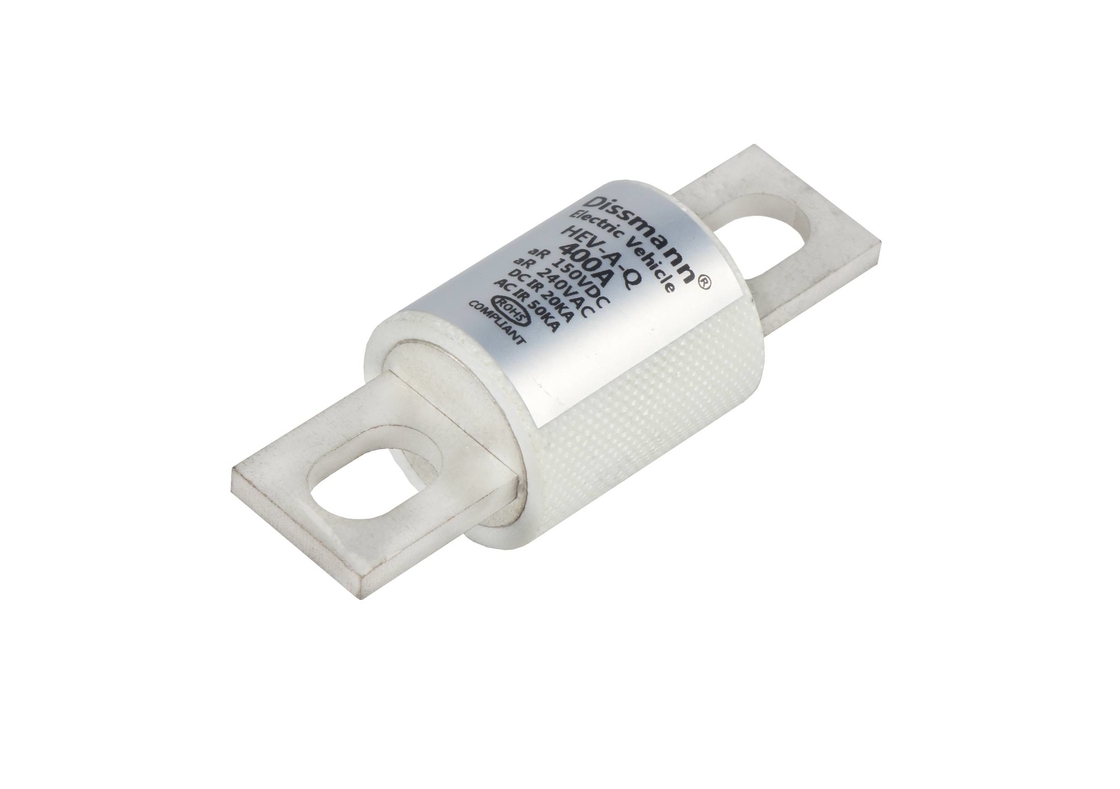

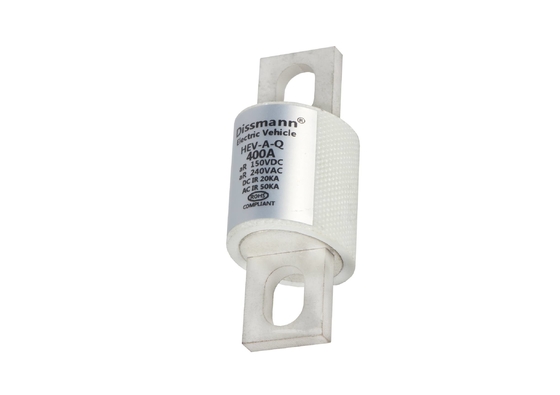

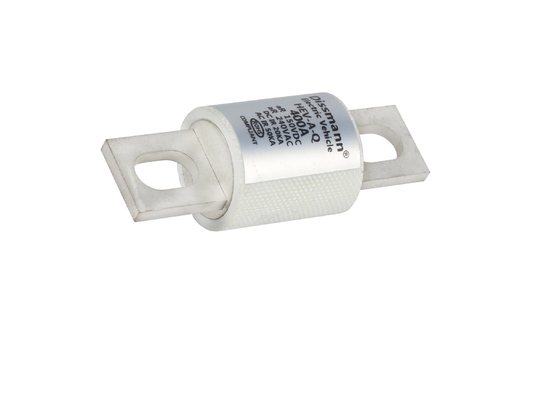

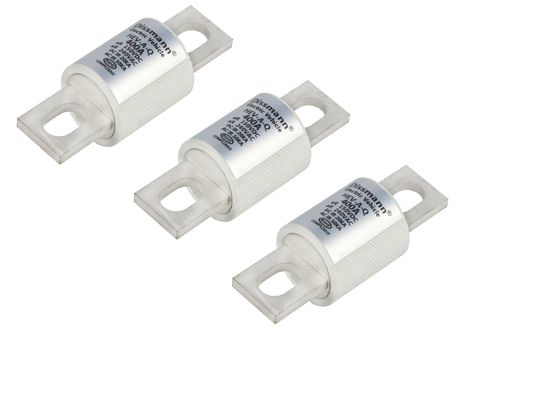

400 amp 250 volt ceramic fuse EV fuse low voltage fuse stud mount fuse
Detailed:
Fact Acting fuse for DC Application
Mounting Bolt, optional for other installation
Excellent DC performance
Comply RoHS directive
Rated Current:- 5A-800A
Rated Voltage:- 150VDC/240VAC
Breaking Capacity: DC20KA
Product presentation
Rated Voltage | AC250V/DC150V | Type Protection | aR |
| Rated Current | 5A-800A | Breaking Capacity | DC20KA (time constant≤15ms) |
Meet the Requirement | UL248-20,ISO8820,JASO-D622, EU and RoHS Directive | Remarks | — |
Shape and mounting dimensions of fuses
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HW1 | 68.2 | 25 | 29 | 44 | 53 | 9 | 18 | 3.3 | 13.5 |
| HW2 | 94 | 38 | 38 | 54 | 74.5 | 10.5 | 25 | 6 | 20.7 |
Allowable current curve Current characteristic curve 150V(70-1000)A
Model | Rated Current (A) | I2t(A2s) | Power dissipation (W) | Size code | Install | |
| Pre-Arc | After-Arc | |||||
| HEV-A-Q-70 | 70A | 460 | 3920 | 6.8 | HW1 | Mounting Bolt M8 recommended torque 11N·m |
| HEV-A-Q-80 | 80A | 665 | 5850 | 7.5 | ||
| HEV-A-Q-100 | 100A | 1120 | 11100 | 8.8 | ||
| HEV-A-Q-125 | 125A | 1840 | 17600 | 11.0 | ||
| HEV-A-Q-150 | 150A | 2650 | 25400 | 12.8 | ||
| HEV-A-Q-200 | 200A | 4750 | 44000 | 17.5 | ||
| HEV-A-Q-250 | 250A | 7420 | 68500 | 22.5 | ||
| HEV-A-Q-300 | 300A | 11000 | 99000 | 26.5 | ||
| HEV-A-Q-350 | 350A | 14800 | 139000 | 30.4 | ||
| HEV-A-Q-400 | 400A | 18800 | 180000 | 34.8 | ||
| HEV-A-Q-500 | 500A | 36000 | 110000 | 34.5 | HW2 | Mounting Bolt M10 recommended torque 20N·m |
| HEV-A-Q-600 | 600A | 43500 | 125000 | 45.6 | ||
| HEV-A-Q-700 | 700A | 68000 | 198000 | 48.5 | ||
| HEV-A-Q-800 | 800A | 86000 | 255000 | 57.0 | ||
| HEV-A-Q-1000 | 1000A | 152000 | 470000 | 59.5 | ||
