Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 10A-500A | Rated Voltage: | 32VDC/58VDC/80VDC |
| Keyword: | Electric Vehicle Fuse | Breaking Capacity: | DC2700A |
| Installation: | Bolt On | Application: | Electric Vehicle,power Battery |
| High Light: | Flat Mini Bolt Type Fuse,UL248-13 Bolt Type Fuse,58VDC Ceramic Car Fuses |
||
Any datasheet&specification,pls feel free to contact by email:holly@delfuse.com or whatsapp me:+8618813915908

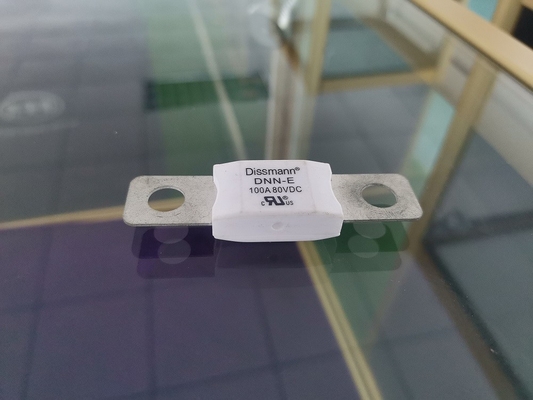

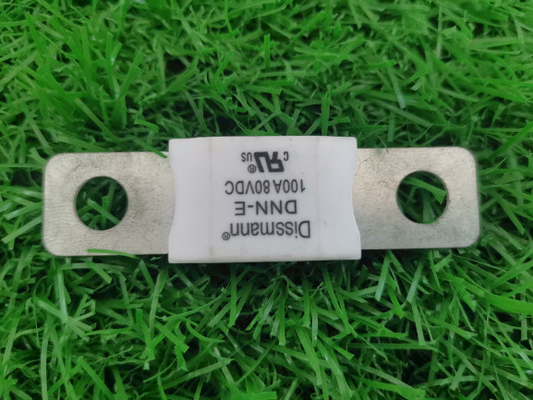

DC32V/58V/80V automotive ceramic fuse supplier
Specification of the DC32V/58V/80V automotive fuse
The low voltage automotive DC32V/58V/80V bolt type ceramic fuse suitable line in circuit of 32V/58V/80V,rated current of 10A-500A,the installation available in center to center bolt on,the breaking capacity up to DC2700A.Its dimension and performance conform to UL248-13,ISO8820,JASO-D622,RoHS compliant.
Dimension of the DC32V/58V/80V automotive fuse
Product type of DC32V/58V/80V automotive fuse
| DNN-C/D/E | Rated current | Rated voltage | Breaking Capacity |
| 10A～500A | 32Vdc | 2700A | |
| 10A～500A | 58Vdc | 2700A | |
| 10A～500A | 80Vdc | 2700A |
Performance test requirements
| Load | Opening time | |
| 20A/50A/100A | ||
| minimum time | Max time | |
| 100% | 14400s | - |
| 200% | 0 | 100s |
| 600% | 0 | 1s |
Manufacturing material
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
