Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Usage: | Automotive | Breaking Capacity: | DC2700A |
| Rated Voltage: | 80VDC | Current Rating: | 150A |
| Keyword: | Automotive Fuse | Standard: | UL248-13、ISO8820、 JASO-D622、ROHS |
| High Light: | Low Current automotive bolt down fuse,Low Voltage automotive bolt down fuse,150 amp dc fuse |
||

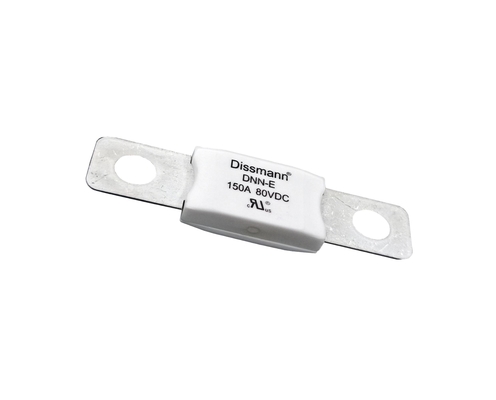

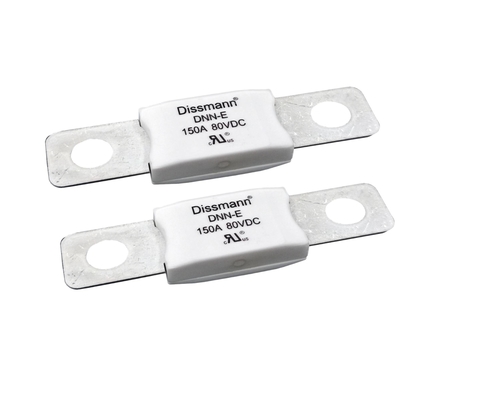

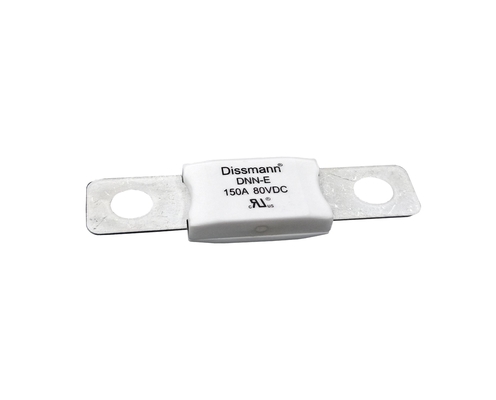

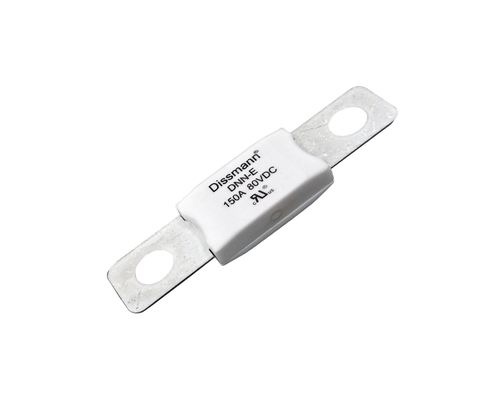

Low Current Fuse Low Voltage Fuse Automotive Ceramic Bolt Down Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
Automotive Ceramic Bolt Down Fuse
Many kinds of Automotive Ceramic Bolt Down Fuse
Current rating:150A
Voltage rating: 80VDC
Breaking capacity:DC2700A
Product Presentation:
|
Rated Voltage 额定电压 |
32VDC/58VDC/80VDC |
Type Protection 保护类别 |
Time-lag慢断 |
| Rated Current 额定电流 | 10A-500A |
Breaking Capacity 分断能力 |
DC2700A |
|
Meet the Requirement 符合要求 |
UL248-13,ISO8820,JASO-D622, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
制造材料/Manufacturing material
|
Component name 部件名称 |
Material 材料 |
|
Contact the foot 接触脚 |
copper alloy 铜合金 |
|
Noumenon 本体 |
Ceramics 陶瓷 |
产品型号/Product type
|
Rated current 额定电流 |
Rated voltage 额定电压 |
Rated voltage 分断能力 |
| 10A～500A | 32Vdc | 2700A |
| 10A～500A | 58Vdc | 2700A |
| 10A～500A | 80Vdc | 2700A |
UL Certificate:
Product Applications
Test Equipment
Our Certificates
