Product Details:
|
| Protection Type: | AR | Materials: | Ceramic |
|---|---|---|---|
| Breaking Capacity: | DC50KA | Certifications: | TUV |
| High Light: | TUV Certified Dissmann Fuse,High Breaking Capacity Dissmann Fuse,Ceramic Automotive Fuses 750VDC |
||

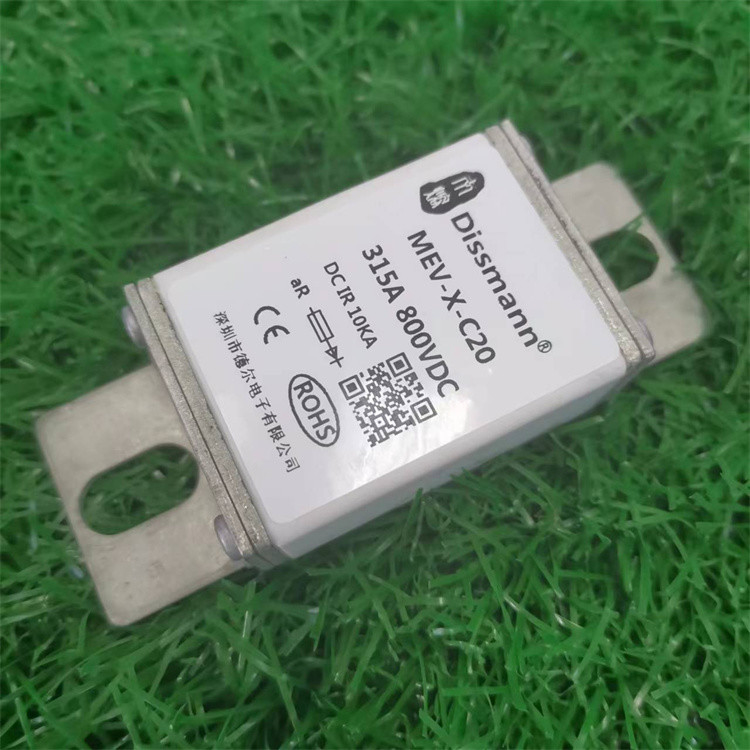

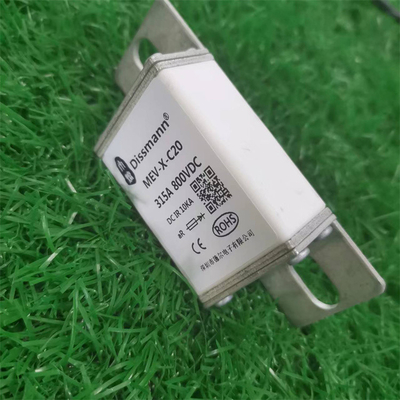

750VDC Dissmann Fuse Europe Square Ceramic Fuse with High Breaking Capacity TUV Certified Made in China
Dissmann fuse MEV series fuse 800VDC
Dissmann fuse MEV series fuse 1500VDC
Basic information of the 750VDC MEV-P series fuse:
1.MEV-P series Rated Voltage:750VDC, Rated Current:10A-400A,Breaking Capacity:50KA, TUV Certification:B 113737 0001
| Product Code | Rated Current A |
I²t(A²Sec) | Power Dissipation | |
| Pre-arc | Total | W | ||
| MEV-P-C10 MEV-P-C20 |
10 | 3.8 | 25.5 | 3 |
| 16 | 7.2 | 48 | 5.5 | |
| 20 | 11.5 | 78 | 7 | |
| 25 | 19 | 130 | 9 | |
| 32 | 40 | 270 | 10 | |
| 40 | 69 | 460 | 12 | |
| 50 | 115 | 770 | 15 | |
| 63 | 215 | 1450 | 16 | |
| 80 | 380 | 2550 | 19 | |
| 100 | 695 | 4650 | 24 | |
| 125 | 1200 | 8500 | 28 | |
| 160 | 2300 | 16000 | 32 | |
| 200 | 4200 | 28000 | 37 | |
| 250 | 7750 | 51500 | 42 | |
| 315 | 12000 | 80500 | 52 | |
| 350 | 14500 | 98500 | 58 | |
| 400 | 19500 | 133000 | 67 | |
