Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 10A-800A | Rated Voltage: | 1000VDC |
| Breaking Capacity: | DC20KA | Category: | AR |
| Keyword: | Electric Vehicle Fuse | Application: | Short-circuit Protection Fuses Of Pure Electric Vehicles And Hybrid Electric Vehicles |
| High Light: | ISO8820 Smart Fuses,DC20KA Smart Fuses,DC1000V High Breaking Fuse |
||

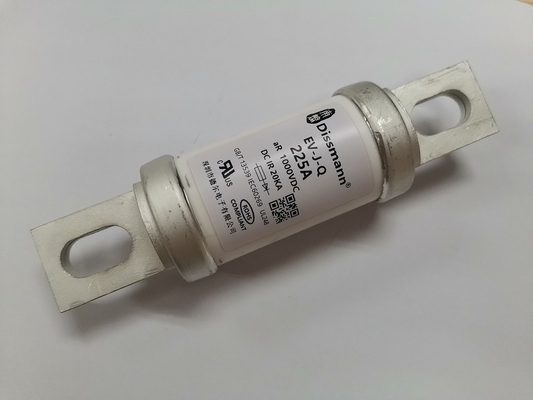

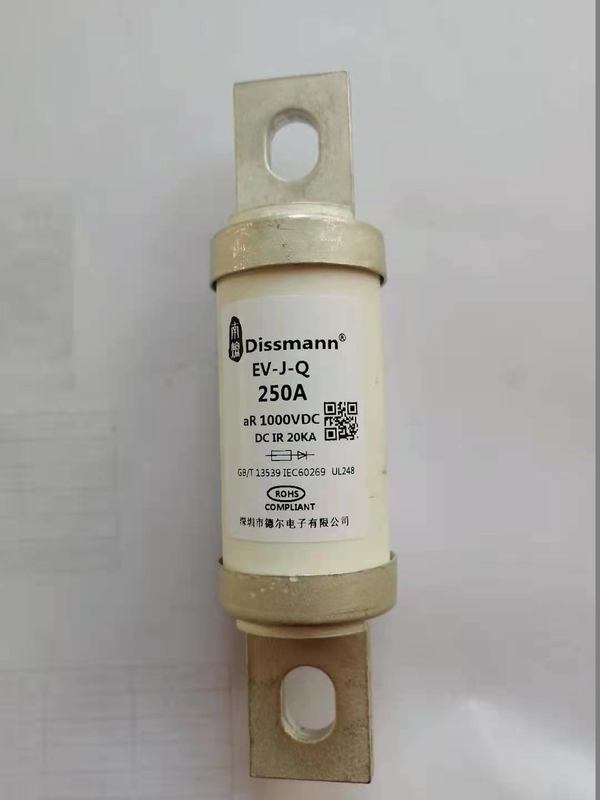

Smart fuses EV series bolt type connection
Product details of the EV series fuses
This EV series fuses can line in circuit of DC500V/DC750V/DC1000V,the rated current range of 10A-800A,breaking capacity up to DC20KA.They are available in bolt connecting,the performance and dimension conform to UL248-20,ISO8820,JASO-D622,RoHS compliant.
Application of the EV series fuses
The EV series fuses applicable for electric vehicle drive power system,Energy storage and power batteries,Energy storage capacitor,Frequency conversion controller,charger, wire and other automotive parts and equipment’s short circuit, overload and backup protection.
Product dimension of the EV series fuses
Product system code of the EV series fuses
Material of the EV battery fuse
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
FAQ
Question:Does this 1000VDC EV Battery Fuse have a base?
Answer:Now this 1000VDC EV series has no base, only 250A has a base.
