Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 5A-800A | Rated Voltage: | AC690V/DC750V |
| Breaking Capacity: | AC100KA/DC50KA | Category: | AR |
| Keyword: | Electric Vehicle Fuse | Application: | Short-circuit Protection Fuses Of Pure Electric Vehicles And Hybrid Electric Vehicles |
| Highlight: | Short Circuit Protection HEV Fuses,HEV Fuses 750VDC,Sinofuse Replacement Ceramic Automotive Fuses |
||

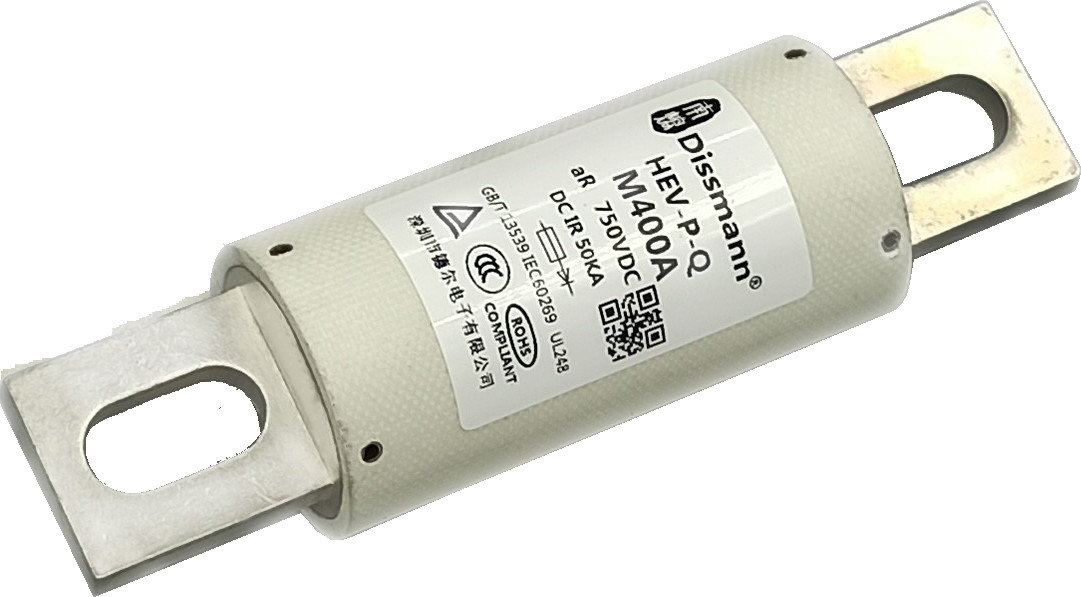

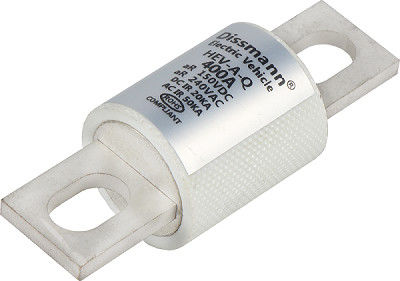

750VDC HEV fuses Sinofuse replacement
Product details of the 750VDC HEV fuses
This 750VDC HEV fuses is model of HEV-P-Q,suitable line in circuit of DC750V,rated current range of 5A-800A,breaking capacity of DC50KA.The dimension and performance conform to UL248-20,ISO8820,JASO-D622,RoHS compliant.This series of products are round tube Bolt install connection fuse, with small size, low I²t, high breaking ability characteristics and other characteristics.
Application of the ceramic bolt type fuse
This HEV-P-Q series fuse is applicable to frequency converter, rectifier, inverter, various types of power supply and other semiconductor equipment, and power battery, electric motor, capacitor, cable and equipment or component’s short-circuit and back-up protection. This product has good vibration resistance and flame retardant performance. Suitable for vibration environment applications such as rail transit and motor vehicles.
Dimension of the ceramic bolt type fuse
Product system code of the ceramic bolt type fuse
Product Characteristic Data
| Model | Rated Current (A) | 100% voltage drop (mV) | Dimension Code | Installation |
| HEV-P-Q-40 | 40A | 269 | HT2 | Install Bolt M8 Recommend Torque: 11Nm |
| HEV-P-Q-50 | 50A | 248 | ||
| HEV-P-Q-60 | 60A | 220 | ||
| HEV-P-Q-70 | 70A | 265 | ||
| HEV-P-Q-80 | 80A | 280 | ||
| HEV-P-Q-125 | 125A | 170 | HT3 | Install Bolt:M10, Recommend Torque: 20N.m |
| HEV-P-Q-150 | 150A | 267 | ||
| HEV-P-Q-200 | 200A | 168 | ||
| HEV-P-Q-250 | 250A | 229 | ||
| HEV-P-Q-300 | 300A | 362 | HT4 | Install Bolt:M10, Recommend Torque: 20N.m |
