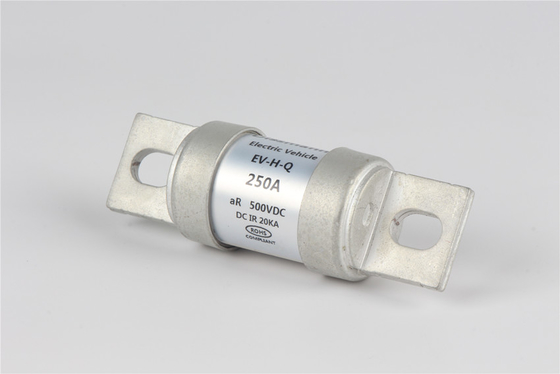

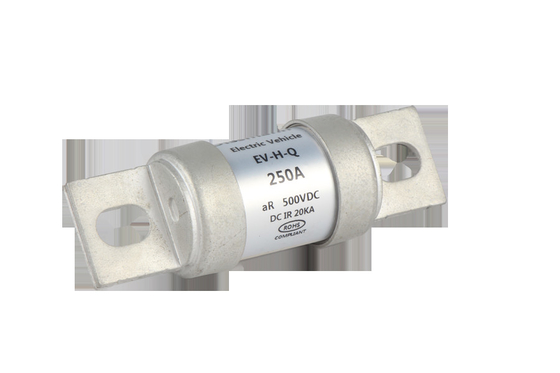

Ceramic Bolt Type Fuse , UL Certified Automotive Fuses Reliable

Chinese ceramic bolt type fuses conform to UL248-20,ISO8820,JASO-D622,RoHS compliant

Product basic information of the ceramic bolt type fuse

EV-H-Q series fuse,dimension and performance conform:UL248-20,GB13539,IEC60269,GB31465

Rated Voltage: DC500VAC/DC

Rated Current:100A

Breaking Capacity:DC20kA,AC100KA

The executive standard is UL248-20, GB13539, IEC60269, GB31465

Compliance with EU and China RoHS directives

Acquired UR certification

Application of the ceramic bolt type fuse

This EV-H-Q series fuse is suitable for short-circuit and backup protection of electric vehicle drive power system, energy storage and power battery, energy storage capacitor, power conversion system, inverter controller, charger, wire and other vehicle components and equipment.

Dimension of the ceramic bolt type fuse

Packing method, shipping, storage

Avoid rain and snow and mechanical damage during packaging and transportation.

Storage temperature

Products storage temperature: -40℃～105℃. The relative humidity is not more than 70% when 40℃. The relative humidity is not more than 80% when 30℃. The relative humidity is not more than 90% below 20℃.

Packaging storage temperature: -40℃～70℃. The relative humidity is not more than 40% when 40℃. The relative humidity is not more than 50% when 30℃. The relative humidity is not more than 90% below 20℃, no condensation.

Fuses can be stored for average 1 year when the relative humidity ≦75%.

Not in the open air, fuses can be stored at most 30 days when the relative humidity 95%.

The number of stacking layers of the outer packaging carton does not exceed 5 layers; the total stacking height does not exceed 1.5m, and should take measures to prevent collapse.

Fireproof, waterproof, and avoid contact with liquid, prevent sharp objects from penetrating, damage the cabinet, avoid contact with corrosive substances and gases.
