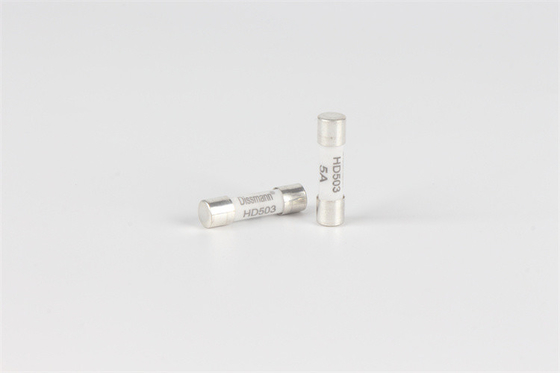

Dissmann HDP6 Series Ceramic Fuse 6x32mm High Voltage Fuse For Charging Pile Module

Large Image : Dissmann HDP6 Series Ceramic Fuse 6x32mm High Voltage Fuse For Charging Pile Module

Product Details:

Place of Origin:	China
Brand Name:	Dissmann
Certification:	UL
Model Number:	HDP6 series

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Carton Packing
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T
Supply Ability:	1000000pcs

Contact Now

Dissmann HDP6 Series Ceramic Fuse 6x32mm High Voltage Fuse For Charging Pile Module

Description

Material:	Ceramic	Size:	6x32 Mm
Rated Voltage:	300VDC-1000VDC	Rated Current:	1-40A
Protection Type:	AR	Breaking Capacity:	10KA
UL Certification:	E343461
Highlight:	Ceramic Fuse 6x32mm , Charging Pile Module Ceramic Fuse , UL Certified High Voltage Fuse

Dissmann HDP6 series Ceramic fuse 6x32mm High Voltage fuse for Charging Pile Module UL Certified made in China

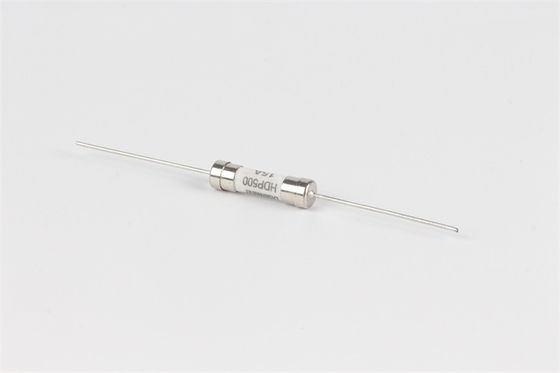

HDP601

Product dimension drawing of HDP6XX

Dissmann HDP6 Series Ceramic Fuse 6x32mm High Voltage Fuse For Charging Pile Module 2

HD600

Dissmann HDP6 Series Ceramic Fuse 6x32mm High Voltage Fuse For Charging Pile Module 3

Product dimension drawing of HD6XX

The Dissmann HD/HDP6 series fuse include Including the following rated voltage products:

1.HD/HDP6XX Rated Voltage:300VAC/300VDC Rated Current:1-15A；Breaking Capacity is:10000A；

2.HD/HDP6XX Rated Voltage:500VAC/500VDC Rated Current:1-30A；Breaking Capacity is:1500A；

3.HD/HDP6XX Rated Voltage:600VAC/600VDC Rated Current:1-15A；Breaking Capacity is:10000A；

4.HD/HDP6XX Rated Voltage:660VAC/660VDC Rated Current:1-40A；Breaking Capacity is:10000A；

5.HD/HDP6XX Rated Voltage:750VAC/750VDC Rated Current:1-40A；Breaking Capacity is:10000A；

6.HD/HDP6XX Rated Voltage:1000VAC/1000VDC Rated Current:1-15A；Breaking Capacity is:10000A；

The specific optional model information is shown in the table below:

HD/HDP601 500VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD601 HDP601	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
	20	464	196.2
	25	1193	170.6
	30	1858	154.7
HD/HDP602 500VDC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD602 HDP602	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
	20	464	196.2
	25	1193	170.6
	30	1858	154.7
HD/HDP603 500VDC/500VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD603 HDP603	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
	20	464	196.2
	25	1193	170.6
	30	1858	154.7
HD/HDP604 600VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD604 HDP604	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
HD/HDP605 600VDC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD605 HDP605	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
HD/HDP606 600VDC/600VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD606 HDP606	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
HD/HDP607 1000VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD607 HDP607	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
HD/HDP608 1000VDC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD608 HDP608	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
HD/HDP609 1000VDC/1000VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD609 HDP609	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
HD/HDP610 300VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD610 HDP610	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
HD/HDP611 300VDC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD611 HDP611	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
HD/HDP612 300VDC/300VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD612 HDP612	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
HD/HDP613 660VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD613 HDP613	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
	20	464	196.2
	25	1193	170.6
	30	1858	154.7
	40	4441	207.5
HD/HDP614 660VDC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD614 HDP614	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
	20	464	196.2
	25	1193	170.6
	30	1858	154.7
	40	4441	207.5
HD/HDP615 660VDC/660VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD615 HDP615	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
	20	464	196.2
	25	1193	170.6
	30	1858	154.7
	40	4441	207.5
HD/HDP616 750VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD616 HDP616	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
	20	464	196.2
	25	1193	170.6
	30	1858	154.7
	40	4441	207.5
HD/HDP617 750VDC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD617 HDP617	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
	20	464	196.2
	25	1193	170.6
	30	1858	154.7
	40	4441	207.5
HD/HDP618 750VDC/750VAC
产品代码	额定电流 A	I²t	100%电压降
产品代码	额定电流 A	(A²Sec)	mV
HD618 HDP618	1	0.75	575
	2	2.93	851
	3	3.94	422
	4	11	311.6
	5	30	299
	8	91	244.1
	10	164.3	242.8
	15	235	190.6
	20	464	196.2
	25	1193	170.6
	30	1858	154.7
	40	4441	207.5
