Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 10A-800A | Rated Voltage: | DC1000V |
| Breaking Capacity: | DC20KA | Category: | AR |
| Executive Standard: | UL248-20、ISO8820、JASO-D622、GB/T13539、RoHS Compliant | Appliaction: | Energy Storage And Power Batteries |
| High Light: | EV Series Ceramic Fuses,Ceramic Fuses DC1000V,JASO-D622 Battery Fuses |
||

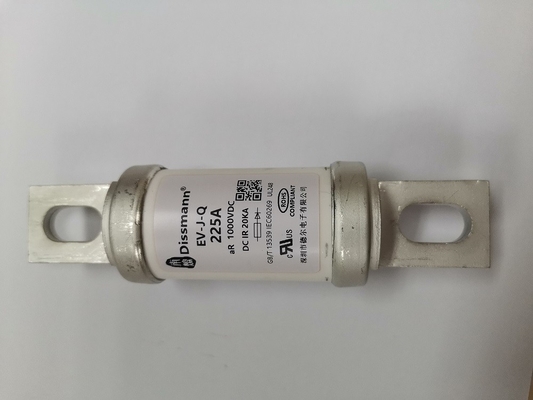

China EV series ceramic fuses aR protection
Product description of EV series ceramic fuses
This EV series ceramic fuses suitable line in circuit of voltage of DC1000V,rated current of 10A-800A,breaking capacity up to DC20KA.They are applicable for electric vehicle drive power system,Energy storage and power batteries,Energy storage capacitor,Frequency conversion controller,charger, wire and other automotive parts and equipment’s short circuit, overload and backup protection.
Dimension of the EV series fuse
| Model | Size Code | A±3 | B±1.5 | C±2 | D±2.5 | F±1 | G±1 | H±0.5 | J±1 |
| EV-J-Q | VJ2 | 140 | 37.3 | 77 | 109.5 | 11 | 25 | 6 | 20 |
Electrical parameters
| Model | Code |
Rated Current A |
100% voltage drop mV |
| HBD-EPL | HBD-16EPL | 16 | 266.6 |
| HBD-EPL | HBD-20EPL | 20 | 317.4 |
| HBD-EPL | HBD-32EPL | 32 | 253.5 |
| HBD-EPL | HBD-40EPL | 40 | 224.4 |
Packing method, shipping, storage
Avoid rain and snow and mechanical damage during packaging and transportation.
Storage temperature
Products storage temperature: -40℃～105℃. The relative humidity is not more than 70% when 40℃. The relative humidity is not more than 80% when 30℃. The relative humidity is not more than 90% below 20℃.
Packaging storage temperature: -40℃～70℃. The relative humidity is not more than 40% when 40℃. The relative humidity is not more than 50% when 30℃. The relative humidity is not more than 90% below 20℃, no condensation.
Fuses can be stored for average 1 year when the relative humidity ≦75%.
Not in the open air, fuses can be stored at most 30 days when the relative humidity 95%.
The number of stacking layers of the outer packaging carton does not exceed 5 layers; the total stacking height does not exceed 1.5m, and should take measures to prevent collapse.
Fireproof, waterproof, and avoid contact with liquid, prevent sharp objects from penetrating, damage the cabinet, avoid contact with corrosive substances and gases.
FAQ
Question:Is thisEV series products sufficient inventory?
Answer:Most of our EV series products have inventory. Except for individual currents, there is no inventory, but it is generally sufficient material, and the production date is also short.
