Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 6A-700A | Rated Voltage: | DC750V |
| Breaking Capacity: | DC20KA | Category: | AR |
| Executive Standard: | UL248-20、ISO8820、JASO-D622、GB/T13539、RoHS Compliant | Appliaction: | Electric Vehicle Drive Power System, Power Conversion System |
| High Light: | 6A Ceramic Automotive Fuses,700A Ceramic Automotive Fuses,Ceramic Truck Protection Fuses |
||

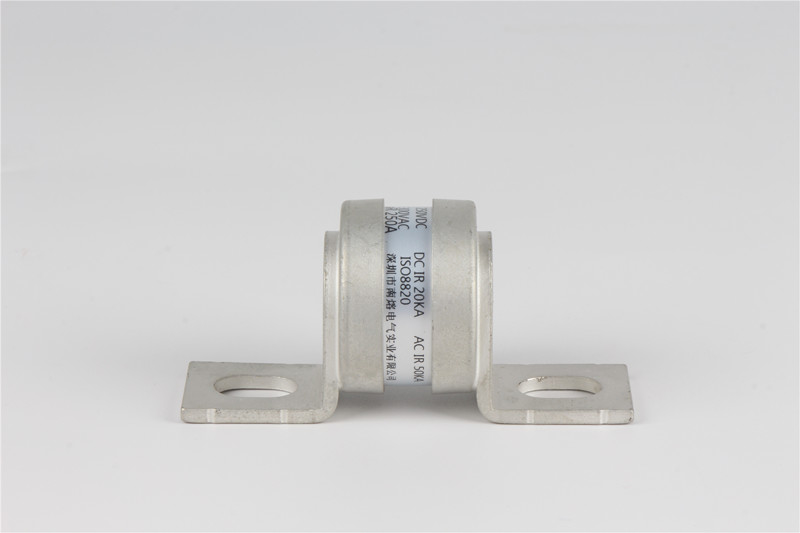

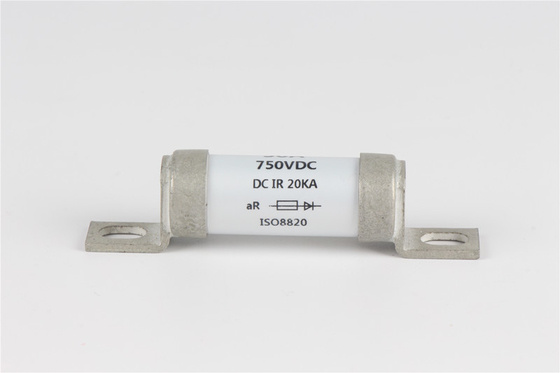

Commercial vehicle fuses DC750V ceramic tube
Product description of DC750V fuse
| Material |
Body :Copper alloy Caps :Copper alloy Terminal : Copper alloy |
| Characteristic | Use in electric vehicles charging protection boards |
| Interrupting Rating | DC20KA at 750VDC |
| Ampere Raing | 6A-700A |
| Voltage ( DC) | 750VDC |
| Permissible Conditions of Use |
-5°C ~ 40°C |
| Green Mark | RoHS |
| Safety Approvals | UL |
Dimension of the BS88 series fuse
Electrical parameters
| Model | Code |
Rated Current A |
100% voltage drop mV |
| HBD-EPL | HBD-16EPL | 16 | 266.6 |
| HBD-EPL | HBD-20EPL | 20 | 317.4 |
| HBD-EPL | HBD-32EPL | 32 | 253.5 |
| HBD-EPL | HBD-40EPL | 40 | 224.4 |
Packaging,Transportation and Storage
Transportation
Packaging Quantity
A: Each blister box contains 10pcs fuse links, and each strip box contains 2 blister boxes.
B: 20 long strip boxes per carton, a total of 400pcs fuse links.
C: One outer box label is attached to each box, and one shipping inspection report is placed per box.
Note:The packaging will be adjusted according to the actual situation.
Transportation and Storage
Shipping
Avoid rain and snow and mechanical damage during packaging and transportation.
Storage Temperature
Products storage temperature: -40°C ~ 120°C. The relative humidity is not more than 70% when 40°C. The relative humidity is not more than 80% when 30°C. The relative humidity is not more than 90% when below 20°C.
Packaging storage temperature:-40℃～70℃.The relative humidity is not more than 90%, no condensation.
FAQ
Question:Is this BS88 series products sufficient inventory?
Answer:Most of our BS88 series products have inventory. Except for individual currents, there is no inventory, but it is generally sufficient material, and the production date is also short.
