Sinofuse Replacement BS88 Series Ceramic Fuses DC750V UL Standard Fuses

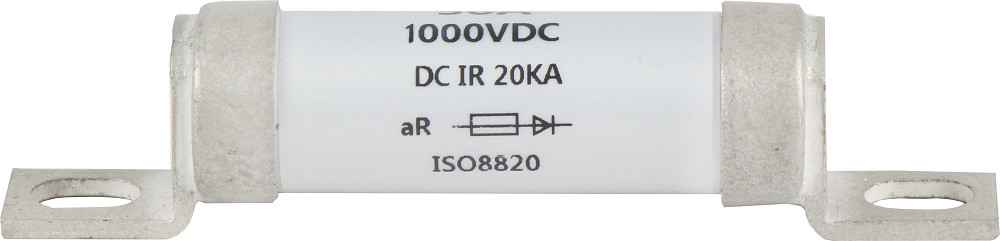

BS88 series ceramic fuse DC750V made in China

Product description of BS88 series fuse

This BS88 series fuse suitable line in circuit of DC750V,rated current of 6A-700A,breaking capacity of DC20KA,which have the characteristics of small size, and high reliability.The performance and dimenison of the BS88 series fuses conform to  GB13539,IEC60269,UL248.

Application of the BS88 series fuse

Applicable to a wide temperature range, can withstand high-intensity mechanical vibration and shock, temperature shock and strong chemical load, suitable for road vehicle industry applications, can be used as electric vehicle drive power system, power conversion system, energy storage and power battery, energy storage.

Dimension of the BS88 series fuse

Mechanical characteristics

The anti-vibration and shock tolerance of this series of fuses are in line with the rail transit class II application environment.

This series of fuses have the ability to withstand vibration and shock, which is suitable for general motor vehicles. The application environment with strong vibration generally needs to be tested and verified Class of Pollution.

Installation torque: Install the fuse on the test fixture according to the regulations. The test is carried out without connecting the terminals and cables.

The bolts are M6, and the installation torque is 4N m. The fuse shall remain intact after the test and can be removed from the fixture.

FAQ

Question:Is this BS88 series products sufficient inventory?

Answer:Most of our BS88 series products have inventory. Except for individual currents, there is no inventory, but it is generally sufficient material, and the production date is also short.
