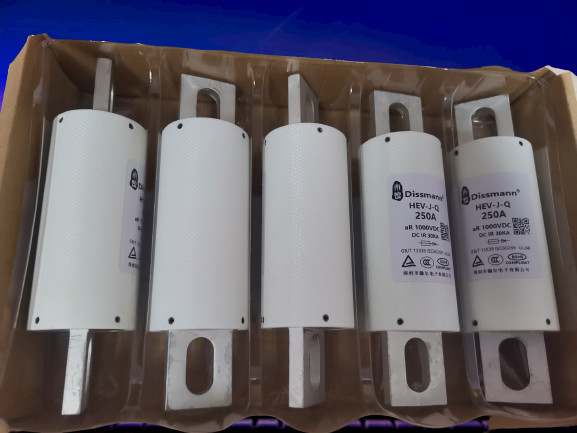

M8 Bolt HEV Series Fuses DC1000V Fiber Automotive Fuses 600A High Current Fuses

M8 Bolt HEV Series Fuses DC1000V Fiber Automotive Fuses 600A High Current Fuses
M8 Bolt HEV Series Fuses DC1000V Fiber Automotive Fuses 600A High Current Fuses

Large Image :  M8 Bolt HEV Series Fuses DC1000V Fiber Automotive Fuses 600A High Current Fuses

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: TUV/CCC
Model Number: HEV-J-Q
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8days
Payment Terms: L/C/TT
Supply Ability: 1,000,000pcs

M8 Bolt HEV Series Fuses DC1000V Fiber Automotive Fuses 600A High Current Fuses

Description
Material: Ceramic Color: White
Rated Current: 5A-800A Rated Voltage: DC1000V
Category: AR Breaking Capacity: DC30KA
Executive Standard: UL248-20、ISO8820、JASO-D622、RoHS Compliant Application: pure Electric Vehicle And Hybrid Vehicle Power Battery
High Light:

Electric Vehicle Fuses

,

Ceramic Fuses

M8 bolt HEV series fuses available line in 250/500/750/1000VDC circuit

Description of the HEV series fuse

  • Bolt connection fast type fuse, Dimension and performance conform to UL248,GB13539,IEC60269
  • Rated Voltage: 1000VDC or lower,Rated Current: 600A, type of protection:aR,Breaking capacity: DC30KA(Time constant≤15ms)
  • Compliance with EU and ROHS directive.
  • Approved by CCC and TUV certificate

Material of the HEV series fuse

Part Material
End cap Copper alloy
Fuse body glass fibre
Filler Quartz sand



Dimension of the HEV fuse(mm)

M8 Bolt HEV Series Fuses DC1000V Fiber Automotive Fuses 600A High Current Fuses 0

M8 Bolt HEV Series Fuses DC1000V Fiber Automotive Fuses 600A High Current Fuses 1



Size Code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HF1 124 25 78 100 109 9 18 4 13.5
HF2 117 33 78 93 100 9 22 5 12.5
HF3 139.5 38 83.5 99.5 120 10.5 25 6 20.7
HF4 146.5 50 89.5 106 126.5 10.5 38 6 20.7
HF5 197.5 63 89.5 123.5 162.5 13.5 50 10 33



Installation conditions

Normal working conditions

  • The fuse is installed separately in natural air without ventilation. Except for the connecting wires, there are no other heat-generating parts or heat-dissipating parts within 1m.
  • The fuse connection terminal should ensure stable and reliable electrical contact. The contact resistance should not significantly affect the operation of the fuse.
  • The fuse can be installed vertically, horizontally or obliquely. If you rely on spring pressure to ensure the electrical connection of the fuse, you should choose a suitable location during installation to avoid the adverse effects of gravity and vibration on the electrical connection.

FAQ

Question:My battery product nominal current is 250A, and the pulse current is 380A. So how much of the fuse of the current is protected?

Answer:Generally, we use your pulse current as the basis for selection, and the 600A fuse is required.
