Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 5A-800A | Rated Voltage: | DC1000V |
| Category: | AR | Breaking Capacity: | DC30KA |
| Executive Standard: | UL248-20、ISO8820、JASO-D622、RoHS Compliant | Application: | pure Electric Vehicle And Hybrid Vehicle Power Battery |
| High Light: | Electric Vehicle Fuses,Ceramic Fuses |
||
TUV certified HEV series fuse supplier in China
Characteristic of the HEV series fuse
This series of products are round-tube bolt-connected fuses,which have the characteristics of small size, fast blowing, low I2t, and high reliability.We are Dissmann brand most of HEV series fuses applying for charging pile protection,deep develop in charging pile industry for nearly 10 years, it has become the main supplier of most leading enterprises.Currently our main customer is Star Charge,Sinexcel,Chargecore,Winline etc.

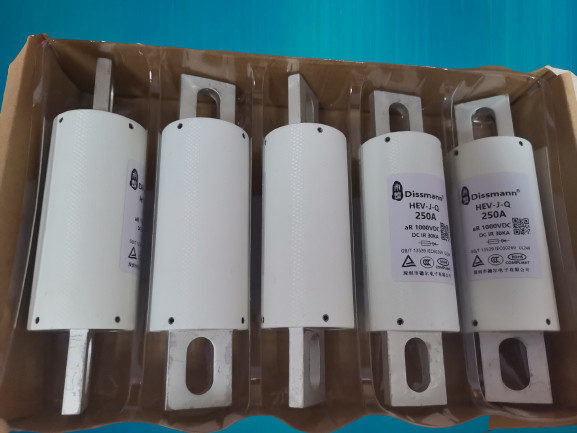

Strcture of the HEV series fuse
The HEV fuse is composed of a tube body and two end caps.The tube is made of glass fiber,and the knife at both ends is copper alloy tin plating.
Dimension of the HEV fuse(mm)
| Size Code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HF1 | 124 | 25 | 78 | 100 | 109 | 9 | 18 | 4 | 13.5 |
| HF2 | 117 | 33 | 78 | 93 | 100 | 9 | 22 | 5 | 12.5 |
| HF3 | 139.5 | 38 | 83.5 | 99.5 | 120 | 10.5 | 25 | 6 | 20.7 |
| HF4 | 146.5 | 50 | 89.5 | 106 | 126.5 | 10.5 | 38 | 6 | 20.7 |
| HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 33 |
Product type of the DC1000V HEV fuse,Choose the size according to the rated current.
| Model | Rated Current | I2t(A2s) | Power dissipation | Size code | Install | |
| Pre-arc | Total | |||||
| HEV-J-Q-5 | 5A | 20 | 115 | 1.8 | HF1 | Mounting Bolt M8 recommended torque 11N·m |
| HEV-J-Q-10 | 10A | 30 | 170 | 2.2 | ||
| HEV-J-Q-15 | 15A | 48 | 220 | 3.1 | ||
| HEV-J-Q-20 | 20A | 72 | 360 | 3.6 | ||
| HEV-J-Q-25 | 25A | 85 | 510 | 4.2 | ||
| HEV-J-Q-30 | 30A | 110 | 830 | 5.1 | ||
| HEV-J-Q-35 | 35A | 180 | 1250 | 6.3 | ||
| HEV-J-Q-40 | 40A | 290 | 1650 | 7.8 | ||
| HEV-J-Q-45 | 45A | 350 | 1900 | 8.5 | ||
| HEV-J-Q-50 | 50A | 440 | 2450 | 10 | ||
| HEV-J-Q-60 | 60A | 600 | 3500 | 12.5 | ||
| HEV-J-Q-70 | 70A | 820 | 5500 | 14 | ||
| HEV-J-Q-80 | 80A | 1050 | 6500 | 16 | ||
| HEV-J-Q-90 | 90A | 1800 | 10500 | 17 | HF2 | |
| HEV-J-Q-100 | 100A | 2300 | 12000 | 18 | ||
| HEV-J-Q-125 | 125A | 3400 | 21000 | 20 | ||
| HEV-J-Q-150 | 150A | 4900 | 25500 | 27 | ||
| HEV-J-Q-175 | 175A | 9200 | 40000 | 30 | HF3 | Mounting Bolt M10 recommended torque 20N·m |
| HEV-J-Q-200 | 200A | 15000 | 60000 | 32 | ||
| HEV-J-Q-225 | 225A | 19000 | 105000 | 40 | ||
| HEV-J-Q-250 | 250A | 24000 | 113000 | 47 | ||
| HEV-J-Q-275 | 275A | 25000 | 130000 | 49 | ||
| HEV-J-Q-300 | 300A | 26000 | 160000 | 52 | ||
| HEV-J-Q-325 | 325A | 33000 | 180000 | 55 | ||
| HEV-J-Q-350 | 350A | 42000 | 230000 | 60 | HF4 | |
| HEV-J-Q-400 | 400A | 71000 | 320000 | 65 | ||
| HEV-J-Q-450 | 450A | 78000 | 300000 | 80 | ||
| HEV-J-Q-500 | 500A | 105000 | 350000 | 95 | ||
| HEV-J-Q-600 | 600A | 163000 | 530000 | 105 | HF5 | Mounting bolt M12 recommended torque 28N·m |
| HEV-J-Q-700 | 700A | 320000 | 680000 | 155 | ||
| HEV-J-Q-800 | 800A | 420000 | 870000 | 185 | ||
HF1:The rated current range of 5A-80A,available in mounting bolt M8 recommended torque 11N·m;
HF2:The rated current range of 90A-150A,available in mounting bolt M8 recommended torque 11N·m;
HF3:The rated current range of 175A-325A,available in mounting bolt M10 recommended torque 20N·m;
HF4:The rated current range of 350A-500A,available in mounting bolt M8 recommended torque 20N·m;
HF5:The rated current range of 600A-800A,available in mounting bolt M12 recommended torque 28N·m;
FAQ
Question:My battery product nominal current is 250A, and the pulse current is 380A. So how much of the fuse of the current is protected?
Answer:Generally, we use your pulse current as the basis for selection, and the 600A fuse is required.
