Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 10A-800A | Rated Voltage: | AC/DC1000V |
| Breaking Capacity: | DC20KA/AC100KA | Type Protection: | AR |
| Keyword: | Battery Protection Fuse | Application: | pure Electric Vehicles And Hybrid Electric Vehicles |
| High Light: | Electric Vehicle Fuses,Ceramic Fuses |
||
500VDC EV type fuse supplier in China
Product basic information EV type fuse

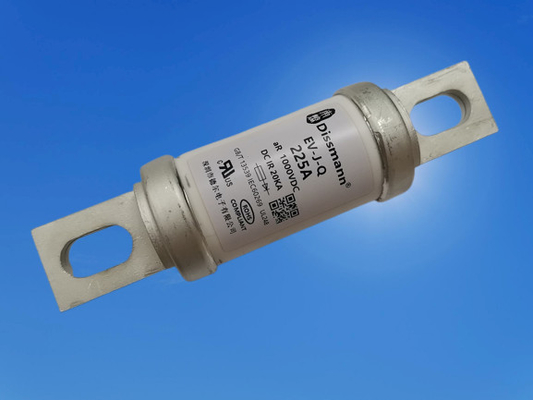

This EV-J-Q fuse are ceramic bolt-connected fuses, which have the characteristics of small size, and high reliability.They are available in rated voltage of 1000VDC,rated current range of 10A-800A,breaking capacity of DC20KA,category protection is aR.
Application of the EV type fuse
This EV type fuse can be used as electric vehicle drive power system, power conversion system, energy storage and power battery, energy storage Short-circuit and backup protection for capacitors, inverter controllers, chargers, wires, and other automotive components and equipment.
Dimension of the EV battery fuse(mm)
Product model of the EV type fuse
| Model | Rated current | I²t(A²s) | Power consumption | Size Code | Install | |
| Pre-arc | Fusing | |||||
| EV-J-Q-30 | 30 | 120 | 850 | 5 | VJ1 | Mounting Bolt M8 recommended torque 11N·m |
| EV-J-Q-40 | 40 | 300 | 1700 | 7.5 | ||
| EV-J-Q-50 | 50 | 450 | 2500 | 10 | ||
| EV-J-Q-60 | 60 | 620 | 3600 | 12.5 | ||
| EV-J-Q-70 | 70 | 850 | 5600 | 14 | ||
| EV-J-Q-80 | 80 | 1100 | 6600 | 15.5 | ||
| EV-J-Q-90 | 90 | 1850 | 10600 | 17 | ||
| EV-J-Q-100 | 100 | 2300 | 12000 | 18 | ||
| EV-J-Q-125 | 125 | 3400 | 21000 | 20 | ||
| EV-J-Q-150 | 150 | 4800 | 25000 | 25 | ||
| EV-J-Q-175 | 175 | 9200 | 40000 | 30 | VJ2 | Mounting Bolt M10 recommended torque 20N·m |
| EV-J-Q-200 | 200 | 15000 | 60000 | 34 | ||
| EV-J-Q-225 | 225 | 19000 | 105000 | 40 | ||
| EV-J-Q-250 | 250 | 23500 | 113000 | 43 | ||
| EV-J-Q-275 | 275 | 24800 | 128000 | 48 | ||
| EV-J-Q-300 | 300 | 26000 | 155000 | 52 | ||
| EV-J-Q-325 | 325 | 32700 | 175000 | 56 | ||
| EV-J-Q-350 | 350 | 40000 | 223000 | 60 | VJ3-1 | Mounting Bolt M12 recommended torque 28N·m |
| EV-J-Q-400 | 400 | 56000 | 290000 | 65 | ||
| EV-J-Q-450 | 450 | 78000 | 390000 | 80 | ||
| EV-J-Q-500 | 500 | 105000 | 490000 | 90 | ||
| EV-J-Q-600 | 600 | 165000 | 560000 | 105 | VJ3-2 | |
| EV-J-Q-800 | 800 | 420000 | 870000 | 175 | ||
Conditions of use
Normal use conditions and parameter correction
The fuse works under the normal use conditions described below and does not require additional modification.
When it exceeds the normal use conditions, if it is within the allowable use conditions, it may be necessary to modify some parameters or consult. If it exceeds the range of allowable use conditions, you should consult our company, and conduct work suitability assessment and testing of the conditions.
It is recommended that the current value of long-term flow is not more than 80% of the rated current. Please refer to the above-mentioned temperature evaluation curve for over-temperature use.
Altitude: The altitude of the installation site does not exceed 2000m. If the altitude exceeds 2000m, the rated voltage needs to be reduced. 2000~4000m, the rated voltage is reduced by 90% for every 1000m increase.
Ambient air temperature
Normal use conditions: -5℃～60℃.
Allowable use conditions: -55℃～120℃.
