Product Details:
|
| Material: | Ceramic | Rated Current: | 10A-500A |
|---|---|---|---|
| Rated Voltage: | 500VDC | Breaking Capacity: | DC20KA |
| Type Of Protection: | AR | Application: | Energy Storage Capacitor, Frequency Conversion Controller |
| Keyword: | Charging Pile Fuse | Executive Standard: | UL248, GB13539, IEC60269, GB31465 |
| High Light: | Semiconductor Ceramic Bolt Type Fuse,150Amp Fast Acting Fuses |
||

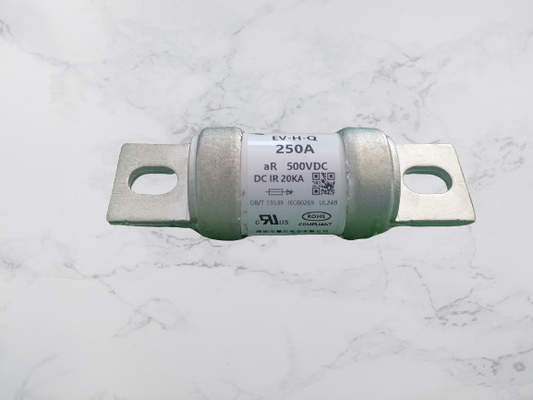

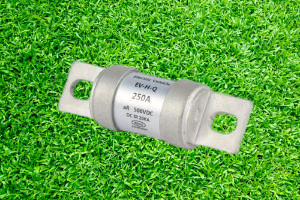

DC20KA 500VDC bolt type EV fuse designed for charging pile
Product information
This series fuse performance and dimension conform to UL248, GB13539, IEC60269, and GB31465,the rated current range is 10A to 500A,rated voltage is 500VDC,breaking capacity up to DC20KA.Applicable for road vehicle with small size, High Breaking capacity, Temperature shock resistance, Current surge, Mechanical vibration and shock, and Strong chemical load.
Dimension of the EV fuse
Material of EV fuse
| Part | Material |
| Fuse element | Silver copper tin alloy |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic tube |
| Filler | Quartz sand |
| Materials List for EV-H-Q | |
Nomal working conditions
Normal using conditions: -5°C ~ 60°C
Permitted conditions: -55°C ~ 120°C
