Product Details:
|
| Rated Voltage: | 32VDC | Rated Current: | 30A-200A |
|---|---|---|---|
| Protection Type: | AR | Breaking Capacity: | DC1KA |
| Installation: | Install Bolt M5,Recommend Torque: 2.5N.m | UL Certification No.: | E496054 |
| High Light: | 32V DC Fuse,32VDC MIDI Fuse |
||

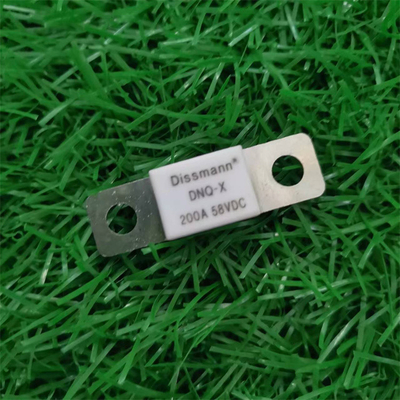

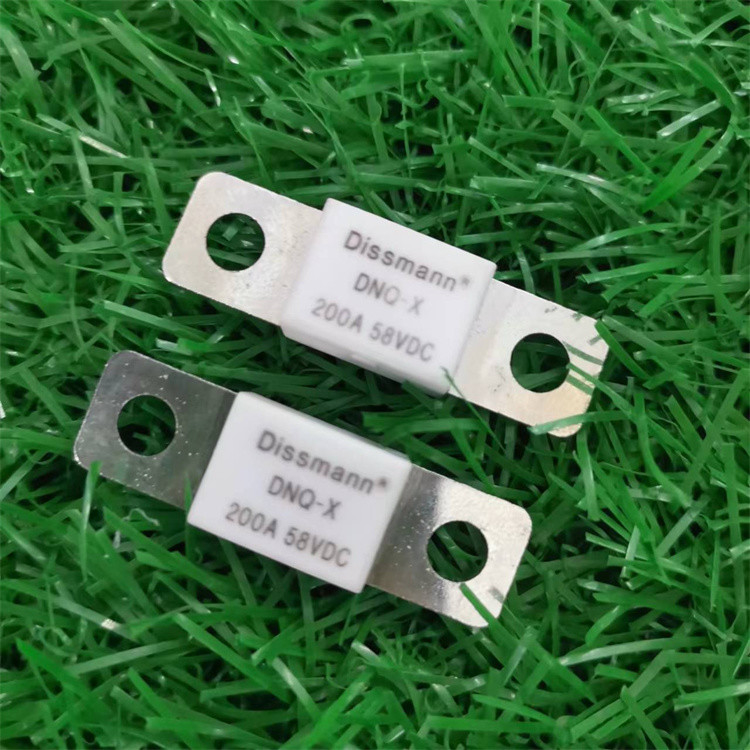

Dissmann fuse Equal to Littlefuse MIDI Fuse 32VDC Standard Circuit Protection Devices made in China
1.Dissmann® Fuses are a cost-effect, space saving protection solution for high current wiring.
2.Dissmann® Fuses are common standard circuit protection devices for automobiles and trucks. The fuse features a bolt-on design that saves space and fits right in to your application or project.
3.Tin plated contacts on the Dissmann® Fuses provide excellent corrosion resistance to keep the fuse protected and performing.
4.Dissmann® Fuses are available in 30 Amp to 200 Amp options.
5.Protect your vehicles currents with a comfortable and secure fit with one of our Dissmann® Fuses.
| DNQ-A 32VDC | Standard Performance | ||||
| Product code | Rated Current A |
Load(Testing current) | Opening Time (Sec) | ||
| Mini Time | Max Time | ||||
| DNQ-A-30 | 40 | 100% | 100h | ∞ | |
| DNQ-A-40 | 50 | 150% | 0 | 3600 | |
| DNQ-A-50 | 60 | 200% | 0 | 100 | |
| DNQ-A-60 | 70 | 300% | 0 | 3 | |
| DNQ-A-70 | 80 | 350% | / | / | |
| DNQ-A-80 | 100 | 500% | 0 | 1 | |
| DNQ-A-100 | 125 | 600% | / | / | |
| DNQ-A-125 | 130 | 75% | 100h | ∞ | |
| DNQ-A-150 | 150 | 200% | 0 | 15 | |
| DNQ-A-175 | 175 | 350% | 0 | 5 | |
| DNQ-A-200 | 200 | 600% | 0 | 1 | |
PRODUCT DRAWING
MANUFACTURING METEARIAL:
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Zinc alloy or copper alloy |
| Fuse leg | Zinc alloy or copper alloy |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
Storage temperature:
Other Bowt-down fuses you can choose from Dissmann fuse:
