Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 10A-500A | Rated Voltage: | 32VDC/58VDC/80VDC |
| Breaking Capacity: | DC2700A | Meet The Requirement: | UL248-13、ISO8820、JASO-D622、RoHS Compliant |
| Application: | Battery,EV Charger | Type Protection: | AR |
| High Light: | 80VDC Ceramic Automotive Fuses,Cold Storage Battery Fuses |
||

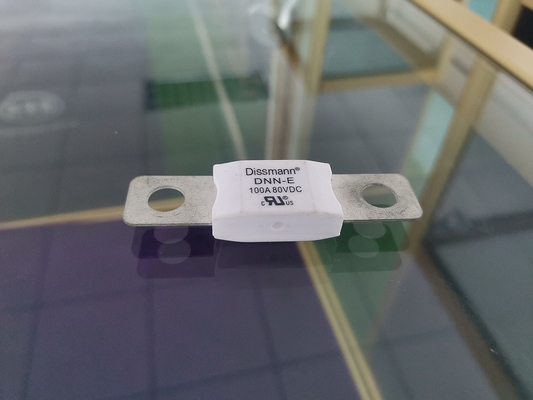

Low voltage ceramic automotive fuse supply in China
Product basic information of low voltage ceramic fuse
This series fuse with rated voltage of 32VDC/58VDC/80VDC and rated current of 10A-500A,high breaking capacity of DC2700A,widely used in the charger,charging pile and vehicle-mounted battery etc.The characteristic of products are Medium Plate Type Automobile Fuse with small size, low power consumption, high breaking capacity.
Product characteristic of the low voltage ceramic fuse
DNN-D-40,DNN-D50,DNN-D-60,DNN-D-70,DNN-D-80,DNN-D-100,DNN-D-125,DNN-D-130,DNN-D-175,DNN-D-200,DNN-D-225,DNN-D-250,DNN-D-275,DNN-D-300,DNN-D-350,DNN-D-400,DNN-D-450,DNN-D-500
Note:
If you need other rate of current, please do contact us.

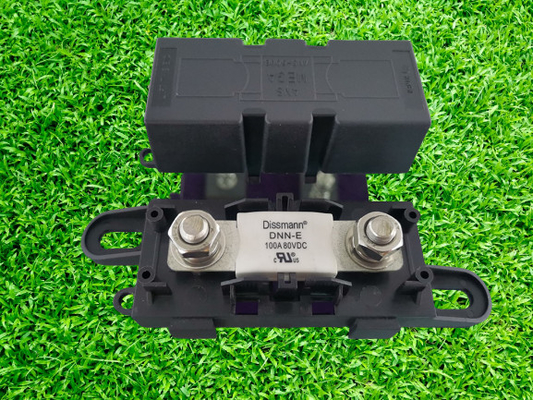

The Fuse Base: ANM-B
Dimension of the two wheeler fuse(mm)
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
Fuse Base Appearance and Dimension (mm)
Manufacturing material
| Part | Material |
| Insulating Body | Copper Alloy |
| Main Body | Ceramic |
| Terminal | Copper Alloy |
