Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 10A-500A | Rated Voltage: | 32VDC/58VDC/80VDC |
| Breaking Capacity: | DC2700A | Meet The Requirement: | UL248-13、ISO8820、JASO-D622、RoHS Compliant |
| Application: | Battery,EV Charger | Type Protection: | AR |
| High Light: | DC2700A Two Wheeler Battery Fuses,58VDC Electric Motor Fuses |
||

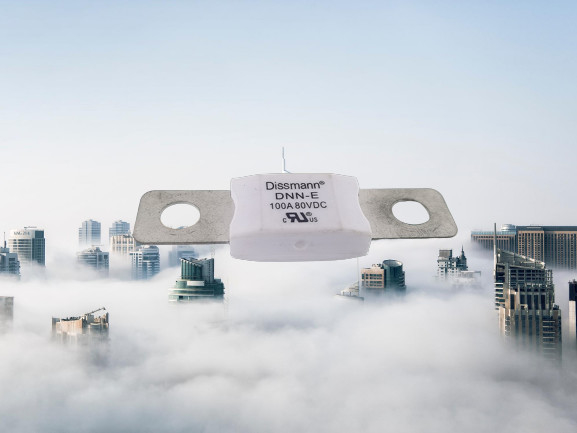

Two wheeler battery fuse 32VDC/58VDC/80VDC
Product basic information
Medium Plate Type Automobile fuses (Bolt Type Installation), The Dimension and Performance conform to UL248.
Rate Voltage: 58VDC, Rate Current: 40A - 500A, Breaking Capacity: DC 2700A
Compliance with EU and China RoHS Directives.
Executive Standard: UL248, UL Certification: E496054.
This series of products are Medium Plate Type Automobile Fuse with small size, low power consumption, high breaking capacity.
Product characteristic of the two wheeler battery fuse
| Model | Code | Rate Current (A) | Rate Voltage (V) | Installation |
| DNN-D | DNN-D-40 | 40 | 58VDC | Install Bolt M8, Recommend Torque: 11Nm |
| DNN-D-50 | 50 | |||
| DNN-D-60 | 60 | |||
| DNN-D-70 | 70 | |||
| DNN-D-80 | 80 | |||
| DNN-D-100 | 100 | |||
| DNN-D-125 | 125 | |||
| DNN-D-130 | 130 | |||
| DNN-D-150 | 150 | |||
| DNN-D-175 | 175 | |||
| DNN-D-200 | 200 | |||
| DNN-D-225 | 225 | |||
| DNN-D-250 | 250 | |||
| DNN-D-275 | 275 | |||
| DNN-D-300 | 300 | |||
| DNN-D-350 | 350 | |||
| DNN-D-400 | 400 | |||
| DNN-D-450 | 450 | |||
| DNN-D-500 | 500 |
Note:
If you need other rate of current, please do contact us.
The Fuse Base: ANM-B
Dimension of the two wheeler fuse(mm)
Fuse Base Appearance and Dimension (mm)
Manufacturing material
| Part | Material |
| Insulating Body | Copper Alloy |
| Main Body | Ceramic |
| Terminal | Copper Alloy |
