Product Details:
|
| Material: | PC | Color: | Brown,Red,Yellow,Orange,Green,Blue |
|---|---|---|---|
| Rated Current: | 1A-40A | Rated Voltage: | 32VDC |
| Breaking Capacity: | DC1000A | Related Standard: | UL248、ISO8820、RoHS Compliant、EU |
| Characteristic: | Fast | Application: | Car Battery, High-voltage Circuit, On-board Charger |
| High Light: | PC Car Blade Fuses,UL Standard Automotive Fuses |
||

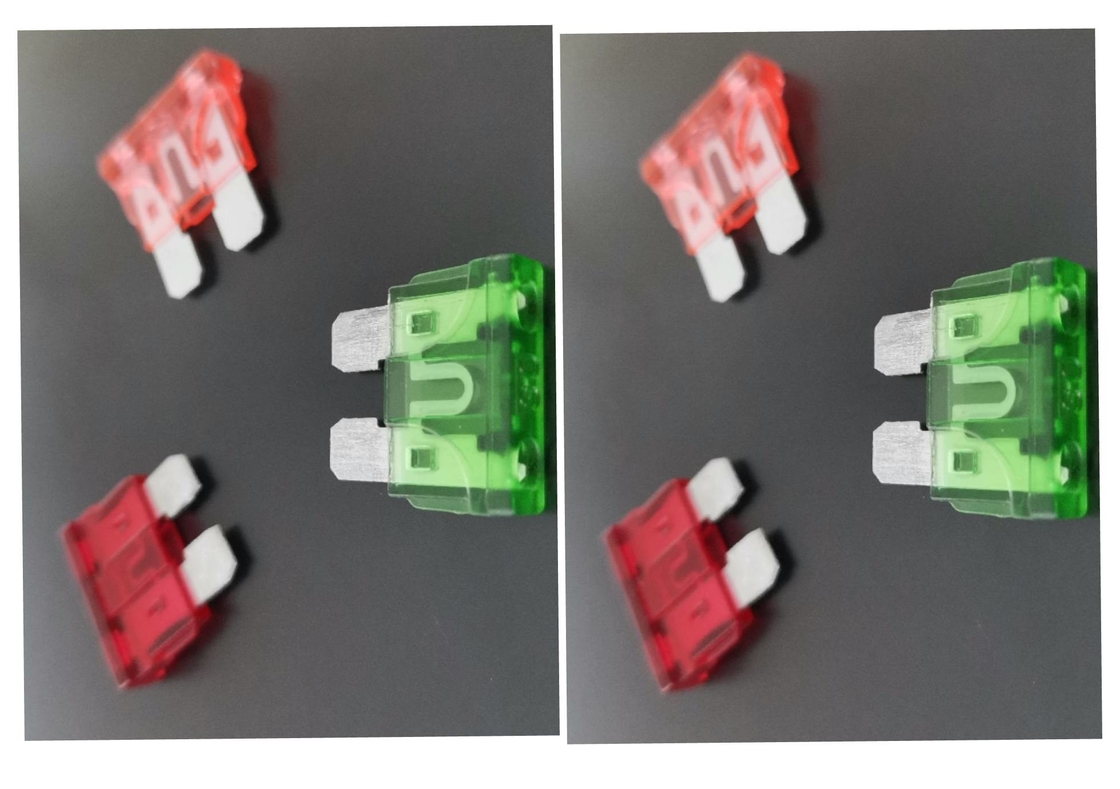

UL standard automotive Medium car blade fuse equal to Littelfuse
Scope of the medium car blade fuse
Charateristic:Fast Acting
Voltage Rating : DC32V
Interrupting Rating:DC 1000A @32VDC
Rating current Range: 1A-40A
Related standard:UL248,ISO8820,RoHS compliant and EU detective
Materials :
1. Zinc Alloy
2. Plastic
Dimension in milimeter
Product type
| Model | Product code | Rated current | I²t | Voltage drop | Pigment |
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | (Orange) |
FAQ
Question:What are the advantages of your car blade fuse and Littelfuse?
Answer:Our car blade fuse are cheaper in terms of price, and our products are also in line with UL certification, and the price / performance ratio is equivalent to Littelfuse.
