Product Details:
|
| Material:: | Zinc Alloy , Plastic | Usage:: | Automotive |
|---|---|---|---|
| Breaking Capacity:: | DC1000A | Rated Voltage:: | 32VDC |
| Current:: | 3A ~ 40A | Keyword:: | Fast Acting Fuse |
| High Light: | 40A small blade car fuses,withstand capacity mini blade car fuses,Fast Acting mini blade car fuses |
||

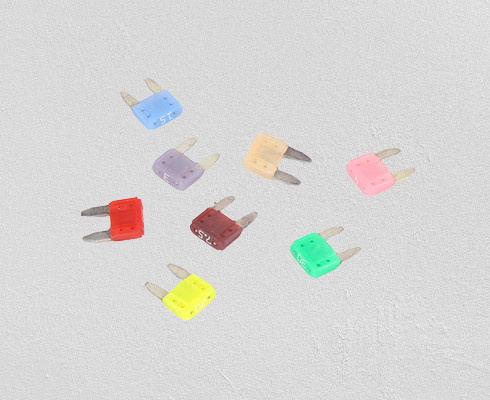

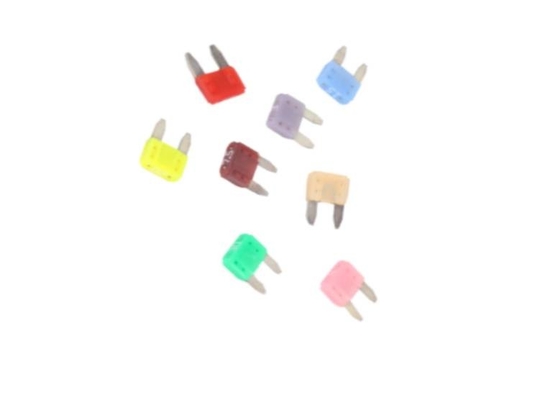

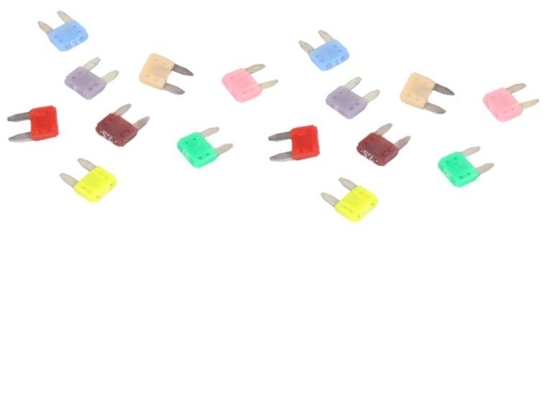

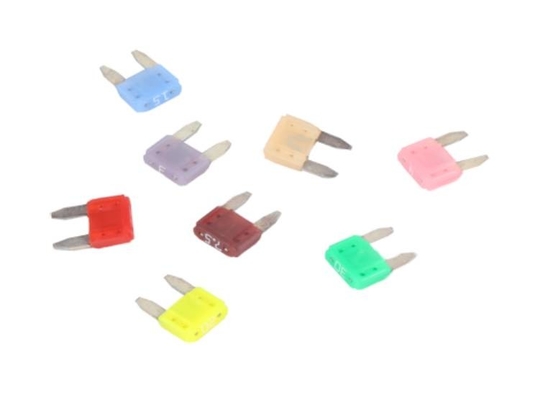

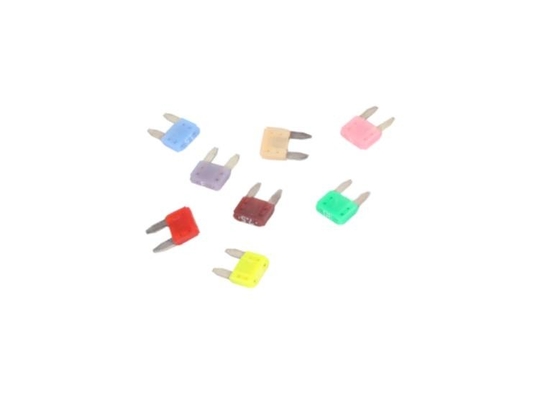

Mini auto fuse blade fuse fast acting fuse low voltage fuse DC fuse
Material:
Base / Cap: PC
Pins: Zinc Alloy
Operating Temperature: -55 º C to +125 º C
Features:
Automotive Fuse
Many kinds of automotive fuse.
Current rating: 3A ~ 40A.
Voltage rating: 32Vdc
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock
Product presentation:
|
Rated Voltage 额定电压 |
32VDC |
Characteristic 特性 |
F快断 |
|
Rated Current 额定电流 |
2A-30A |
Breaking Capacity 分断能力 |
DC1000A |
|
Meet the Requirement 符合要求 |
UL248,ISO8820, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
电流特性曲线图/Current characteristic curve
产品型号/Product type
|
Model 型号 |
Product code 产品代码 |
Rated current 额定电流 A |
I²t (A²Sec) |
Voltage drop 电压降 mV |
Pigment 颜色 |
| DKN-A | DKN-A-2 | 2 | 2.8 | 170 | 灰色(Gray) |
| DKN-A-3 | 3 | 9.3 | 152 | 浅紫色(Violet) | |
| DKN-A-4 | 4 | 17 | 120 | 粉红色(Pink) | |
| DKN-A-5 | 5 | 24 | 128 | 浅棕色(Tan) | |
| DKN-A-7.5 | 7.5 | 66 | 135 | 棕色(Brown) | |
| DKN-A-10 | 10 | 92 | 108 | 红色(Red) | |
| DKN-A-15 | 15 | 270 | 98 | 蓝色(Blue) | |
| DKN-A-20 | 20 | 380 | 96 | 黄色(Yellow) | |
| DKN-A-25 | 25 | 620 | 85 | 透明色(Clear) | |
| DKN-A-30 | 30 | 1120 | 86 | 绿色(Green) |
性能标准/Performance criteria
|
测试电流项目 Test current item(A) |
电流 Current |
最小时间 Minimum time(s) |
最大时间 Maximum time(s) |
| 110% | 2A-30A | 360000 | ∞ |
| 135% | 2A-30A | 0.75 | 600 |
| 200% | 2A-30A | 0.15 | 5.0 |
| 350% | 2A-30A | 0.08 | 0.5 |
| 600% | 2A-30A | 0.03 | 0.1 |
