UL Certified Automotive Bolt-Down 51mm Fuse Equal to MEGA® HP 70V SF51 Series Fuse made in China

        The Dissmann DNN-E series Fuse is designed for high current circuit protection up to 500A and also provides time delay characteristics. Designed and patented by Dissman fuse and the performance and dimension are equal to the Littlefuse MEGA® High Performance 70V SF51 Series Fuse,and is ideal for protecting batteries, alternators, and heavy gauge wire harnesses that experience large inrushes of current.

Features:

• Voltage Rating: 80VDC
• Interrupting Rating: 2700A @ 80VDC
• Current ratings 10A - 500A

Applications:

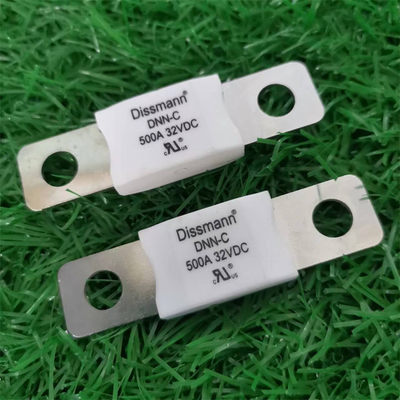

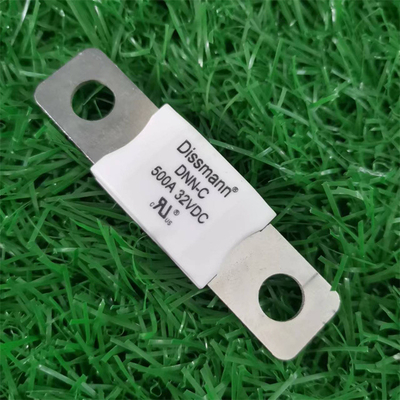

UL Certification Fuse Low Voltage 32VDC Fuse DNN-C series

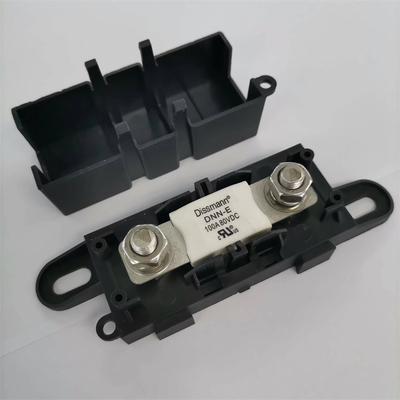

DC32V ceramic Fuse with Fuse Holder

Basic information of the fuse:

• Type:Flat plug type automobile fuse (bolt-down type installation)
• Dimensions and performance conforming to UL248
• Conform to EU and China RoHS directives
• The executive standard is UL248, UL certification number: E496054
• M6 (9 Nm 1 Nm) and M8 (20 Nm 1 Nm) mounting holes
• This series of products are automobile flat plug fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to low-speed electric vehicles, motors and charging modules.
• Equal to Littlefuse MEGA® HP 70V SF51 Series Fuse.

Dimension of the fuse:


                            Rated Current ≤275A                                                               Rated Current ≥300A

When the Rated current ≥300Ampere,the contact foot will be thicker.

Materials of the DC80V Bolt-down fuse:

Application of the Dissman 80VDC bolt-down fuse:
