Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 58VDC | Rated Current: | 200A |
| Breaking Capacity: | DC1500A | Standard: | UL248-20、ISO8820、 JASO-D622、ROHS |
| Usage: | Automotive | Keyword: | Automotive Fuse |
| High Light: | DNQ high voltage current limiting fuse,58VDC high voltage current limiting fuse,Ceramic Low Breaking Capacity Fuse |
||

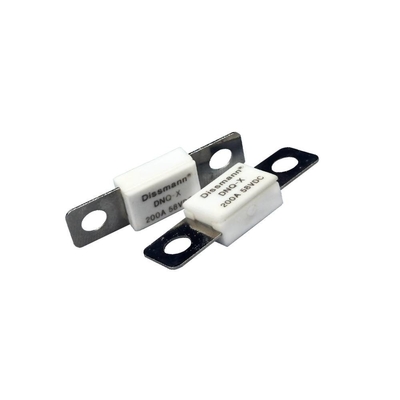

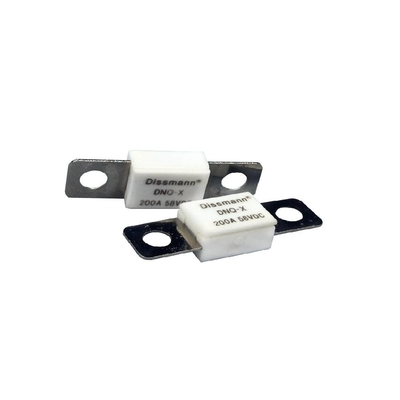

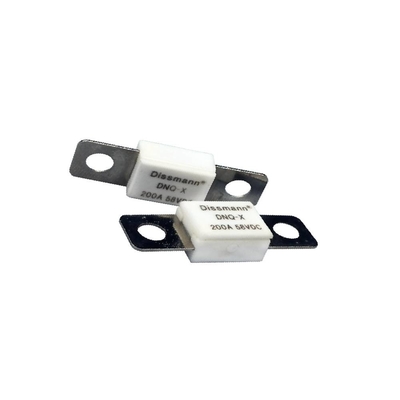

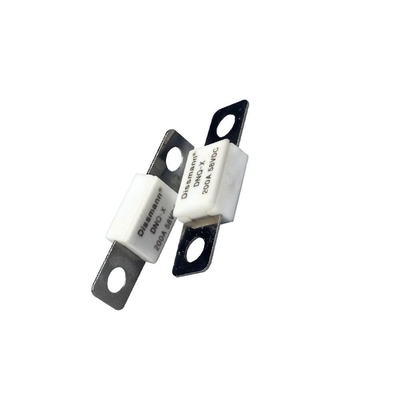

Low Voltage Fuse Low Breaking Capacity Fuse DNQ Series Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Product Presentation:
|
Rated Voltage
|
32VDC/58VDC/80VDC |
Type Protection
|
Time-lag |
| Rated Current | 5A-200A |
Breaking Capacity
|
DC1500A |
|
Meet the Requirement
|
UL248-20,ISO8820,JASO-D622, Europe and RoHs Directive |
Remarks |
UL |
Overall dimensions of the product(mm)
Manufacturing material
Component name:
Contact the foot (Material:Kirsite/Copper alloy )
Noumenon (Material:Ceramics)
Product type
|
Model |
Rated current |
Rated voltage |
Rated voltage |
| DNQ-A | 5A～200A | 32Vdc | 1.5KA |
| DNQ-X | 5A～200A | 58Vdc | 1.5KA |
| DNQ-H | 5A～200A | 80Vdc | 1.5KA |
| DNM-A | 5A～200A | 32Vdc | 1.5KA |
| DNM-X | 5A～200A | 58Vdc | 1.5KA |
| DNM-H | 5A～200A | 80Vdc | 1.5KA |
UL certificate:
