Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | AC/DC500V | Rated Current: | 250A |
| Breaking Capacity: | DC20KA/AC100KA | Standard: | UL248-20、ISO8820、 JASO-D622、ROHS |
| Usage: | Solar,automotive,charging Pile | Keyword: | Solar Fuse |
| High Light: | UL248-20 electric car fuse,White 250 amp automotive fuse,250 amp automotive fuse |
||

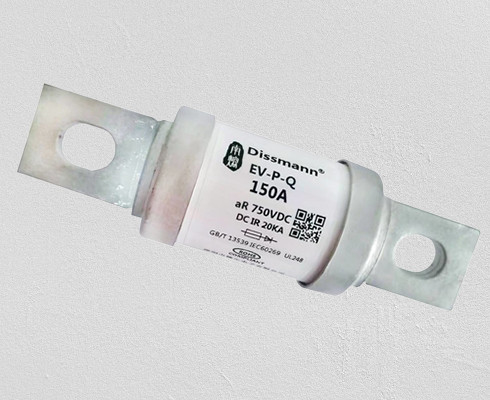

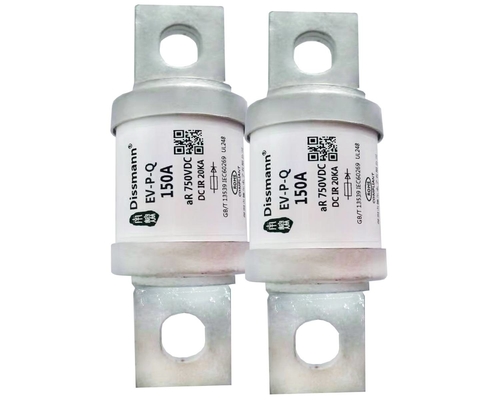

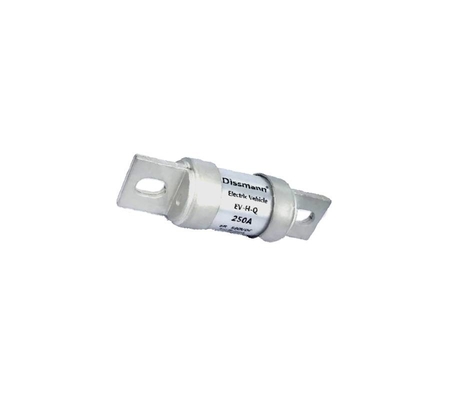

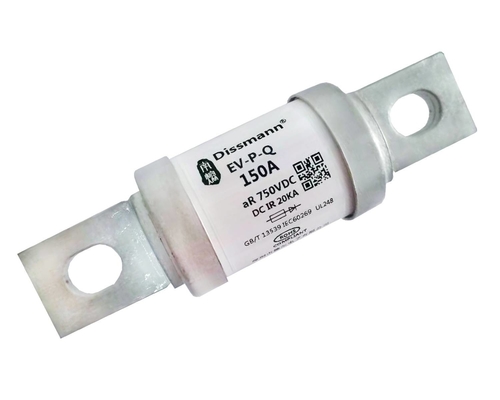

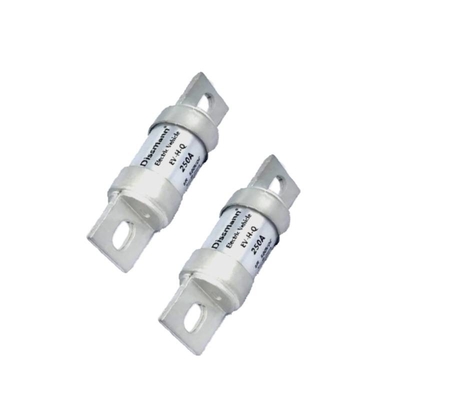

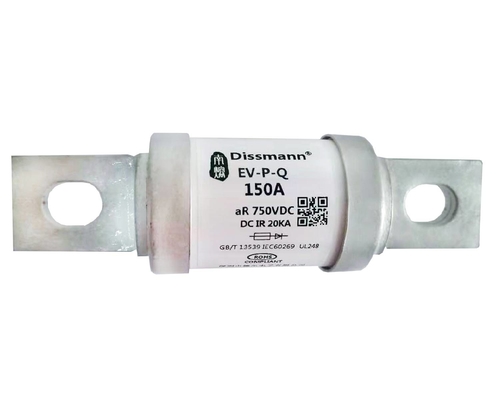

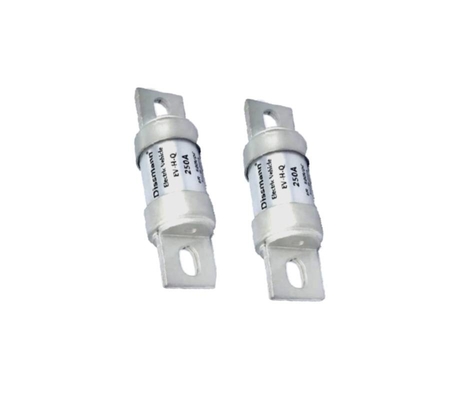

High Current Ev Fuse 250amp Fuse High Braking Capacity Fuse Charging Pile Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Product Presentation
|
Rated Voltage |
AC/DC500V |
Type Protection |
aR |
| Rated Current | 10A-500A |
Breaking Capacity |
AC100KA,DC20KA |
|
Meet the Requirement
|
UL248-20,ISO8820,JASO-D622, Europe and RoHS directive |
Remarks
|
UL |
Overall dimensions of the product(mm)
| Model | Dimension code | A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-H-Q | VH1 | 94.5 | 30.5 | 52.5 | 74.5 | 9 | 25 | 4 | 13 |
| VH2 | 119.5 | 37 | 56.5 | 88.5 | 11 | 25 | 6 | 15 |
Current characteristic curve
Product type
|
Model |
Rated current (A) |
I²t(A²s) |
Power consumption (W) |
Size Code |
Install |
|
| Pre-Arc | After-Arc | |||||
| EV-H-Q-80 | 80 | 5500 | 6400 | 15 | VH1 |
Mounting Bolt M8 recommended torque 11N·m
|
| EV-H-Q-100 | 100 | 8700 | 10000 | 19 | ||
| EV-H-Q-125 | 125 | 15000 | 17810 | 23.5 | ||
| EV-H-Q-150 | 150 | 25000 | 29000 | 28 | ||
| EV-H-Q-175 | 175 | 40500 | 45000 | 33 | ||
| EV-H-Q-200 | 200 | 60300 | 68000 | 37 | ||
| EV-H-Q-225 | 225 | 83100 | 95000 | 40 | ||
| EV-H-Q-250 | 250 | 120000 | 138000 | 45 | ||
| EV-H-Q-275 | 275 | 173200 | 189000 | 48 | ||
| EV-H-Q-300 | 300 | 203000 | 243000 | 55.5 | ||
| EV-H-Q-350 | 350 | 252000 | 355000 | 62 | ||
| EV-H-Q-300 | 300 | 148500 | 260000 | 53.5 | VH2 |
Mounting Bolt M10 recommended torque 20N·m
|
| EV-H-Q-315 | 315 | 168000 | 280000 | 57 | ||
| EV-H-Q-350 | 350 | 203000 | 350000 | 61 | ||
| EV-H-Q-400 | 400 | 312000 | 496000 | 68 | ||
| EV-H-Q-500 | 500 | 550000 | 865000 | 78 | ||
