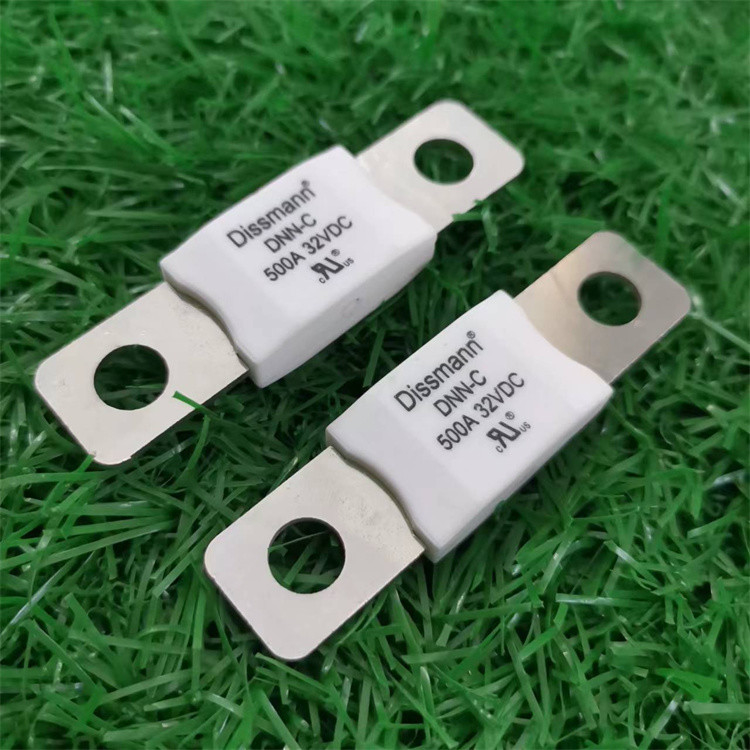

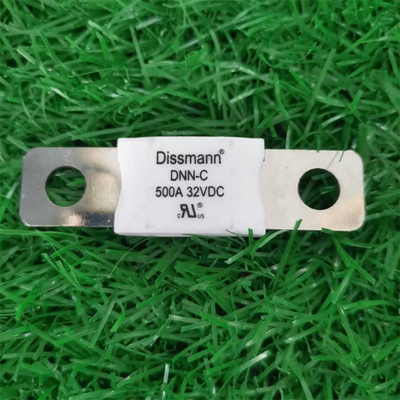

Automotive Passenger Car Fuse UL Certified DC32V Fuse Equal to MEGA+ 32V Fuse made in China

The Dissmann DNN-C series Fuse is designed for high current circuit protection up to 500A and also provides time delay characteristics. Designed and patented by Dissman fuse and the performance and dimension are equal to the Little fuse MEGA+® 32VFuse,and is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.

Features:

• Voltage Rating: 32VDC
• Interrupting Rating: 2700A @ 32VDC
• Current ratings 10A - 500A

UL Certification Fuse Low Voltage 32VDC Fuse DNN-C series

DC32V ceramic Fuse with Fuse Holder

Basic information of the fuse:

• Type:Flat plug type automobile fuse (bolt-down type installation)
• Dimensions and performance conforming to UL248
• Conform to EU and China RoHS directives
• The executive standard is UL248, UL certification number: E496054
• This series of products are automobile flat plug fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to low-speed electric vehicles, motors and charging modules.
• Equal to Little fuse MEGA+ 32V Fuse.

1.Dimension of the fuse:


                            Rated Current ≤275A                                                               Rated Current ≥300A

When the Rated current ≥300Ampere,the contact foot will be thicker.

2.The product type you can Choose from Dissmann Fuse:

3.Materials of the DC32V Bolt-down fuse:



4.Application of the Dissman 32VDC bolt-down fuse:

5.More bolt-down fuse that you can choose from our company:
