Product Details:
|
| Materials: | PBT | Rated Voltage: | DC32V/58V/80V |
|---|---|---|---|
| Breaking Capacity: | DC1000A | Meet The Requirements: | UL248-13, ISO8820, RoHS |
| High Light: | Low Voltage Automotive Blade Fuse,UL Certified Automotive Blade Fuses |
||

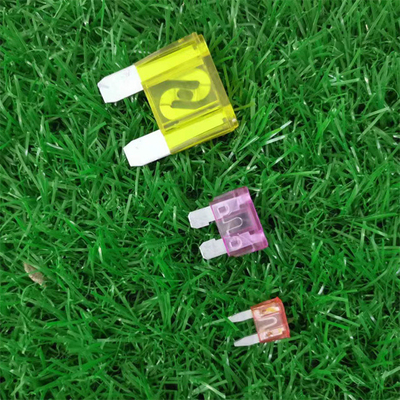

Large size automotive blade fuse 80VDC 50Amp
Medium size automotive blade fuse 32VDC 3Amp
Small size automotive blade fuse 32VDC 4Amp
Dimensions of the Automotive blade fuse:
Product Type:
|
Model |
Product code |
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment |
| DFN-E | DFN-E-20 | 20 | 3500 | 100 | (Yellow) |
| DFN-E-30 | 30 | 8200 | 97 | (Green) | |
| DFN-E-40 | 40 | 14200 | 93 | (Orange) | |
| DFN-E-50 | 50 | 22500 | 90 | (red) | |
| DFN-E-60 | 60 | 23000 | 95 | (Blue) |
Product Type:
|
Model |
Product code |
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment |
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | (Orange) |
|
Model |
Product code |
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment |
| DKN-A | DKN-A-2 | 2 | 2.8 | 170 | (Gray) |
| DKN-A-3 | 3 | 9.3 | 152 | (Violet) | |
| DKN-A-4 | 4 | 17 | 120 | (Pink) | |
| DKN-A-5 | 5 | 24 | 128 | (Tan) | |
| DKN-A-7.5 | 7.5 | 66 | 135 | (Brown) | |
| DKN-A-10 | 10 | 92 | 108 | (Red) | |
| DKN-A-15 | 15 | 270 | 98 | (Blue) | |
| DKN-A-20 | 20 | 380 | 96 | (Yellow) | |
| DKN-A-25 | 25 | 620 | 85 | (Clear) | |
| DKN-A-30 | 30 | 1120 | 86 | (Green) |
