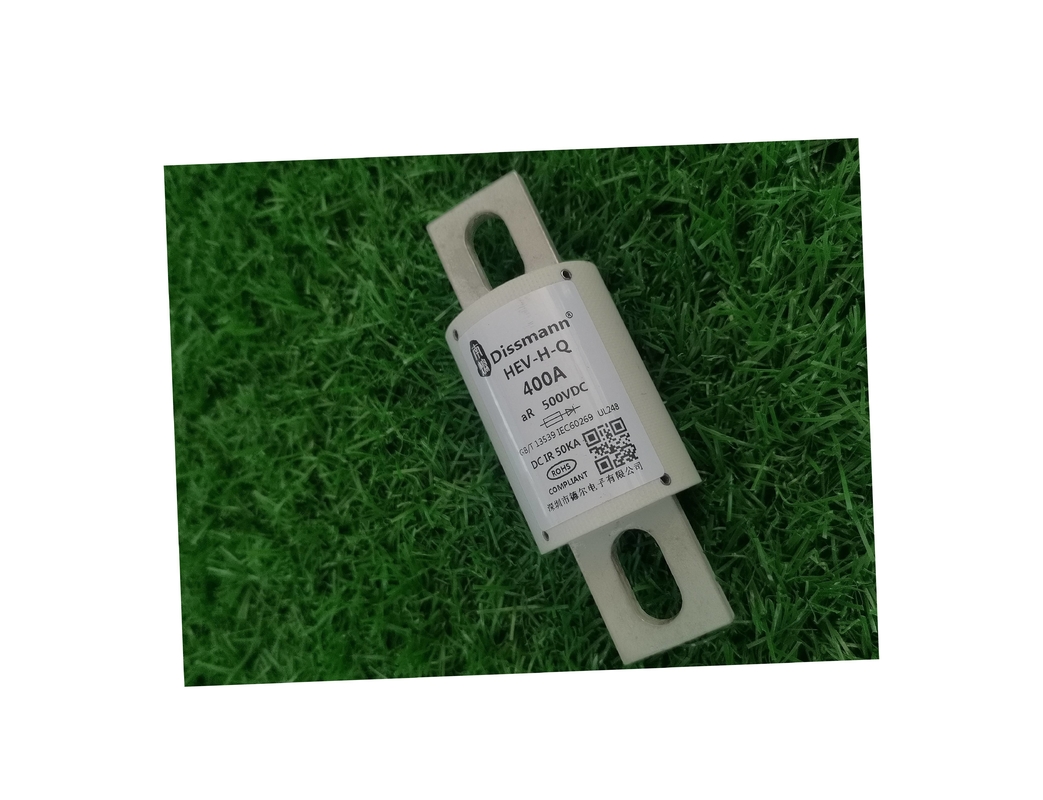

Ceramic 500VDC Semiconductor Fuse , DC50KA High Breaking Capacity Fuse

Ceramic 500VDC Semiconductor Fuse , DC50KA High Breaking Capacity Fuse
Ceramic 500VDC Semiconductor Fuse , DC50KA High Breaking Capacity Fuse

Large Image :  Ceramic 500VDC Semiconductor Fuse , DC50KA High Breaking Capacity Fuse

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL
Model Number: HEV-H-Q
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8days
Payment Terms: TT/LC
Supply Ability: 1,000,000pcs

Ceramic 500VDC Semiconductor Fuse , DC50KA High Breaking Capacity Fuse

Description
Material: Ceramic Rated Current: 5A-800A
Rated Voltage: AC/DC500V Breaking Capacity: AC100KA/DC50KA
Type Protection: AR Application: Battery,EV Charger
High Light:

500VDC Semiconductor Fuse

,

DC50KA High Breaking Capacity Fuse

500VDC high voltage round tube fuse

Product specification of the 500VDC fuse

Material

Body :Fiber glass

Caps :Copper alloy

Terminal : Copper alloy

Characteristic Use in electric vehicles charging protection boards
Interrupting Rating AC100KA,DC50KA at 500VDC
Ampere Raing 5A-800A
Voltage ( DC) 500VDC
Voltage(AC) 500VAC
Permissible Conditions of Use -40℃~120℃
Green Mark RoHS
Safety Approvals UL248



Dimension of the 500VDC fuse

Ceramic 500VDC Semiconductor Fuse , DC50KA High Breaking Capacity Fuse 0



Ceramic 500VDC Semiconductor Fuse , DC50KA High Breaking Capacity Fuse 1



Size Code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1.5
HZ4 109 38 53 69 89.5 10.5 25 6 20.7



Product system code

Ceramic 500VDC Semiconductor Fuse , DC50KA High Breaking Capacity Fuse 2



Application of 500VDC fuse

Applicable for electric vehicle drive power system,Energy storage and power batteries,Energy storage capacitor,Frequency conversion controller,charger, wire and other automotive parts and equipment’s short circuit, overload and backup protection.
