Dissmann^®  Low Voltage DC80V 50Amp Electric Vehicle Fuse UL Certified 5G Communication Module Fuse

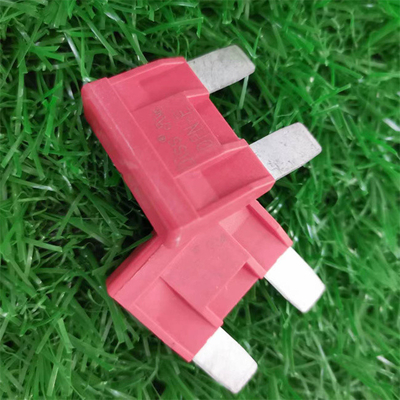

DC80V 50Amp Large Size Automotive Blade Fuse

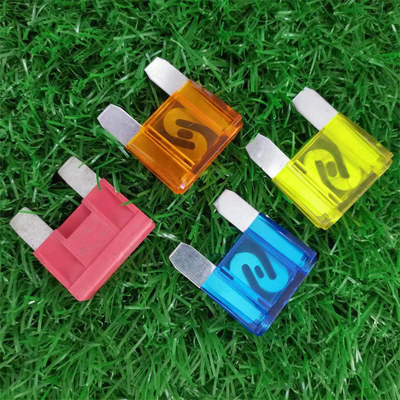

Different rated current different color

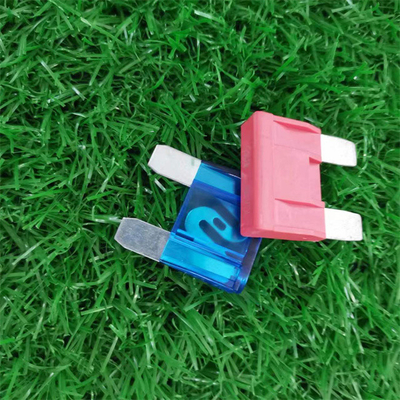

Different size Automotive blade fuse

Basic information of the Automotive blade fuse:

• Type:Plug-in automotive blade fuse
• Dimensions and performance conforming to UL248
• Rated voltage: DC80V
• Rated current: 20A-60A(L size)
• Breaking capacity: DC1000A
• Conform to EU and China RoHS directives
• The executive standard is UL248, UL certification number: E343461
• This series of products are automobile blade fuses, which have the characteristics of small size, low power consumption and . It is applicable to low-speed electric vehicles, motors and charging modules.

Physics drawing of the dimension:

DC80V Large size fast blow automotive blade fuse:

Ordinary produc type you can choose from our factory:

DC80V Large size fast blow automotive blade fuse:

Performance criteria of the automotive blade fuse:

Current characteristic curve of the electric vehicle fuse:

Application of the automotive blade fuse:

Applly to  Automotive electrical

Applly to 5G Communication power module

More other fuses and fuse holder you can choose from our factory:

Products list:

1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders

Certifications of the fuse products:

Certifications we've got:
        UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS and Reach certifications. And we have UL&TUV authorized third-party witness Lab., Enable us to get UL&TUV very fast (within 15days).
