High Current Automotive Low Breaking Capacity Fuse DC32V DC58V DC80V

Dissmann^®  High Current Automotive Fuse DC32V DC58V DC80V for Low Breaking Capacity Fuse

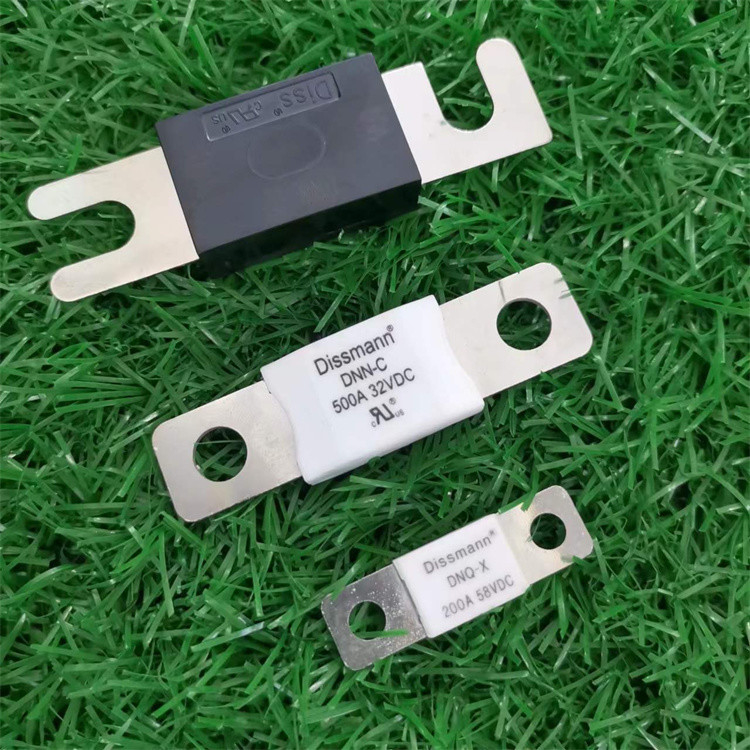

DC32V/DC58V/DC80V/ DC150V FLAT PLUG FUSE FOR MOTORBIKE-LARGE SIZE

DC32V/DC58V/DC80V CERAMIC FLAT PLUG FUSE FOR MOTORBIKE-MEDIUM SIZE

DC32V/DC58V/DC80V CERAMIC FLAT PLUG FUSE FOR MOTORBIKE-MINI SIZE

Basic information of the FLAT PLUG fuse:

• Type:Flat plug type automobile fuse (bolt type installation)
• Dimensions and performance conforming to UL248
• Rated voltage: DC32V/DC58V/DC80V,
• Rated current: 10A~500A(L&M size)；5A-200A(S size),
• Breaking capacity: DC2700A(L&M size)；DC1500A(S size)
• Conform to EU and China RoHS directives
• The executive standard is UL248, UL certification number: E496054
• This series of products are automobile flat plug fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to low-speed electric vehicles, motors and charging modules.

Physics drawing of the dimension:

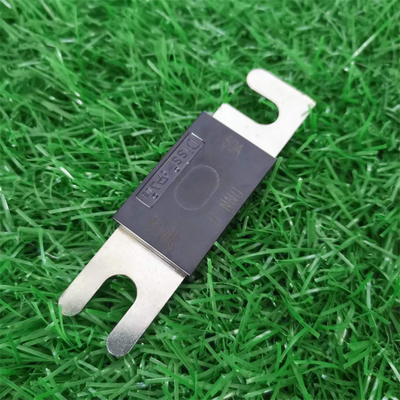

1.DC32V/DC58V/DC80V/ DC150V flat plug fuse dimension:

Notice:When the Rated current ≤275A,the contact foot is thick 0.8mm；

         when the Rated Current ≥300A,the contact foot is thick 1.5mm.

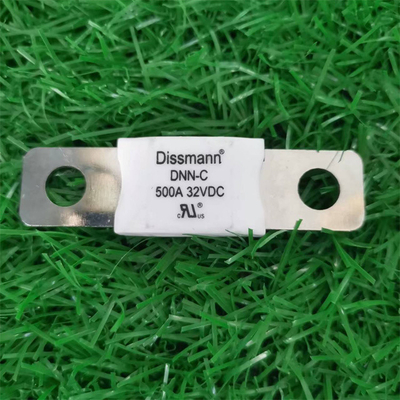

2.DC32V/DC58V/DC80V ceramic flat plug fuse dimension:

Notice:When the Rated current ≤225A,the contact foot is thick 0.8mm；

when the Rated Current ≥250A,the contact foot is thick 1.5mm.

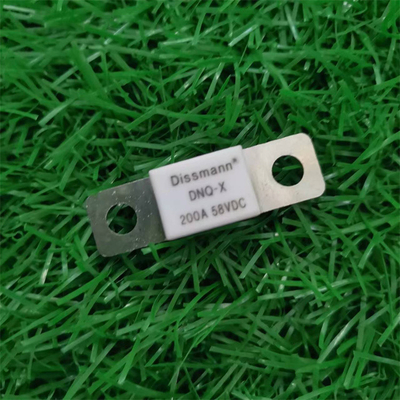

3.DC32V/DC58V/DC80V mini ceramic flat plug fuse dimension:

DNQ series

DNM series

Ordinary produc type you can choose from our factory:

1.DC32V/DC58V/DC80V/ DC150V flat plug fuse dimension:

2.DC32V/DC58V/DC80V ceramic flat plug fuse dimension:

3.DC32V/DC58V/DC80V mini ceramic flat plug fuse dimension:

Other Fuses you can choose for the Two-wheels Mobility Bike

More other fuses and fuse holder you can choose from our factory:

Products list:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Hold,14*51 Hold,10*85Hold,Square Bayonet Series)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. Electronic Fuse (3.6*10Series, 5*20Series, 6*30Series,Square shell)
10. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
11. Fuse blocks and holders
12. Fuse Accessories (Parts) (Fuse wire, Copper cap, Ceramic Tube, Fibre Tube)
13. Fuse Production Equipment
14. Other Non-Standard Automatic Equipment

Certifications of the fuse products:

Certifications we've got:
        UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS and Reach certifications. And we have UL&TUV authorized third-party witness Lab., Enable us to get UL&TUV very fast (within 15days).

Why choose Dissmann Fuse?
1. Dissmann is BYD’s Supplier.
2. Got UL,UR,ASTA,VDE,TUV,PSB,CCC,CQC,ROHS and Patents.
3. Own Complete IATF16949,ISO9001,ISO14001.
4. We’re UL and TUV authorized 3rd-party witness Lab..
5. Core material-Fuse Wire’s manufactured by us.
6. Fuses are Automated-production. 300K BS Fuses / day.
7. Full-automation equipment produced by us.
8. Senior Engineers Team come from famous company.
9. Complete automotive grade Fuse.
10. National High-Tech Enterprises.
