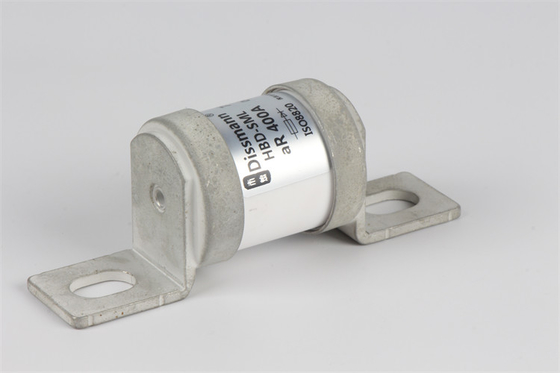

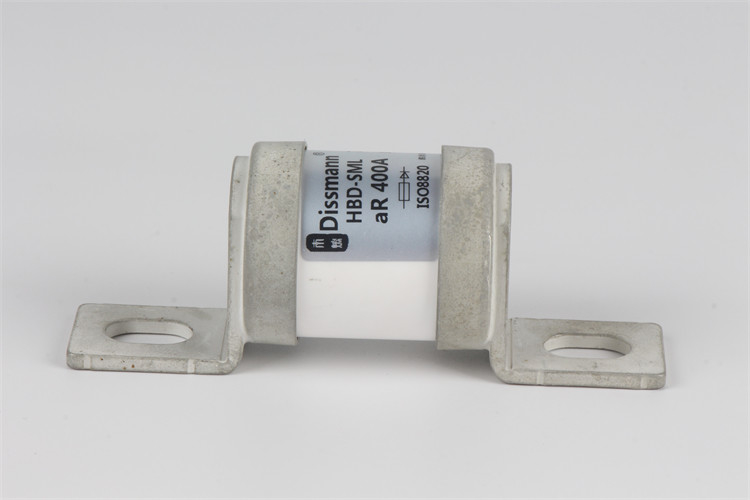

DC1000V Ceramic Fast Blow Fuse , BS88 High Breaking Capacity Fuse

DC1000V Ceramic Fast Blow Fuse , BS88 High Breaking Capacity Fuse
DC1000V Ceramic Fast Blow Fuse , BS88 High Breaking Capacity Fuse DC1000V Ceramic Fast Blow Fuse , BS88 High Breaking Capacity Fuse

Large Image :  DC1000V Ceramic Fast Blow Fuse , BS88 High Breaking Capacity Fuse

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL248-13、ISO8820、JAS0-D622、GB/T13539、RoHS
Model Number: BS88-HBD-200
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 100

DC1000V Ceramic Fast Blow Fuse , BS88 High Breaking Capacity Fuse

Description
Rated Voltage: 240VAC/DC150V Rated Current: 200A
Protection Type: AR Breaking Capacity: AC100KA/ DC50KA
Color: White Material: Ceramic
Size Code: LMP/LMT Application: Charging Pile/Electric Vehicle/Energy Storage System
High Light:

DC1000V Fast Blow Fuse

,

Ceramic BS88 Fuse

,

BS88 High Breaking Capacity Fuse

Dissmann®DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China

DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China

BS88 Ceramic Automotive Fuses

Product basic information of the 1000VDC BS88-HBD series fuse

  • Bolt connection type quick fuse,
  • the size and performance comply with GB13539, IEC60269, UL248
  • Rated voltage: DC1000V or less
  • Rated current: 6A~700A;
  • Protection category: aR;
  • Breaking capacity: DC20KA
  • Conform to EU and China RoHS directives
  • Meet the requirements of UL248-20,QC/T413, ISO8820 and JASOD622
  • This series of products is a round tube type fast fuse with small volume and high breaking capacity. It is applicable to a wide temperature range, can withstand high strength mechanical vibration and impact, wide temperature impact and strong chemical load, is suitable for road vehicle industry applications, and can be used as short circuit, overload and backup protection of electric vehicle driving power system, power conversion system, energy storage and power battery, energy storage capacitor, frequency conversion controller, charger, wire and other vehicle devices and equipment.

Dimension of the 1000VDC BS88 fuse:

DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China

1000VDC BS88 FUSE



DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China  DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China

Size code:CPJ                                                                      Size code:EPJ

DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China  DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China

Size code:HPJ                                                                       Size code:EEPJ



DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China  DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China

Size code:SMJ                                                                   Size code:SMMJ



The BS88-HBD series 1000VDC fuse model

Number

Model

Product code

Rated current

 A

I²t(A²Sec)

Power consumption

 W

Pre-arc Fusing
1 CPJ/CTJ HBD-6CPJ/HBD-6CTJ 6 2.2 13.5 2.0
HBD-10CPJ/HBD-10CTJ 10 7.4 48.0 3.0
HBD-12CPJ/HBD-12CTJ 12 10.5 67 3.2
HBD-16CPJ/HBD-16CTJ 16 17.0 110 7.0
2 EPJ/ETJ HBD-16EPJ/HBD-16ETJ 16 26.0 132 3.2
HBD-20EPJ/HBD-20ETJ 20 41.0 228.0 3.5
HBD-25EPJ/HBD-25ETJ 25 26.5 257.0 7.0
HBD-32EPJ/HBD-32ETJ 32 33.0 350.0 11.0
HBD-35EPJ/HBD-35ETJ 35 52.8 500.0 11.2
HBD-40EPJ/HBD-40ETJ 40 108.0 910.0 9.0
HBD-45EPJ/HBD-45ETJ 45 110.0 1100.0 9.6
HBD-50EPJ/HBD-50ETJ 50 123.0 1250.0 10.8
HBD-56EPJ/HBD-56ETJ 56 140.0 1550.0 13.5
HBD-63EPJ/HBD-63ETJ 63 170.0 1990.0 15.5
HBD-80EPJ/HBD-80ETJ 80 360.0 4000.0 18.0
3 HPJ/HTJ HBD-32HPJ/HBD-32HTJ 32 110 1300 10.8
HBD-40HPJ/HBD-40HTJ 40 170 2200 13.0
HBD-50HPJ/HBD-50HTJ 50 270 3400 16.0
HBD-63HPJ/HBD-63HTJ 63 490 6100 19.3
HBD-80HPJ/HBD-80HTJ 80 920 11400 23.0
HBD-100HPJ/HBD-100HTJ 100 1500 18800 28.5
HBD-125HPJ/HBD-125HTJ 125 2500 30800 34.0
HBD-160HPJ/HBD-160HTJ 160 4400 54800 37.3
4 EEPJ/EETJ HBD-90EEPJ/HBD-90EETJ 90 500 4510 19.0
HBD-110EEPJ/HBD-110EETJ 110 610 6700 26.5
HBD-140EEPJ/HBD-140EETJ 140 1100 12000 34.0
HBD-160EEPJ/HBD-160EETJ 160 1600. 17000 38.0
5 SMJ/STJ HBD-180SMJ/HBD-180STJ 180 1390 13400 39.2
HBD-200SMJ/HBD-200STJ 200 2600 17900 40.0
HBD-225SMJ/HBD-225STJ 225 3600 25400 42.5
HBD-250SMJ/HBD-250STJ 250 5050 36000 47.0
HBD-280SMJ/HBD-280STJ 280 6950 52000 48.0
HBD-315SMJ/HBD-315STJ 315 9900 72800 54.0
HBD-350SMJ/HBD-350STJ 350 14400 98000 55.5
HBD-400SMJ/HBD-400STJ 400 19000 128000 58.0
6 SMMJ/STTJ HBD-400SMMJ/HBD-400STTJ 400 9800 69700 84.0
HBD-450SMMJ/HBD-450STTJ 450 14300 96000 90.0
HBD-500SMMJ/HBD-500STTJ 500 19500 138000 97.5
HBD-550SMMJ/HBD-550STTJ 550 27900 197000 100.0
HBD-630SMMJ/HBD-630STTJ 630 41200 275000 102.0
HBD-700SMMJ/HBD-700STTJ 700 55500 375000 119.5


More other fuses produced by our factory:

The products list showed as below:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders

DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China



Certifications we can supply for the fuse products:

        We invested 2 Million USD for Fuses's design and development, and we get the certifications of fuse include UL, CSA, TUV, VDE, ASTA, PSB, CE, CCC, CQC, IATF16949, ISO9001, ROHS, REACH, SGS etc.

DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China

Our workshop and UL/TUV certified laboratory:

DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China

Our factory located in Shenzhen China:

Why choose Dissmann Fuse?
1. Dissmann is BYD’s Supplier.
2. Got UL,UR,ASTA,VDE,TUV,PSB,CCC,CQC,ROHS and Patents.
3. Own Complete IATF16949,ISO9001,ISO14001.
4. We’re UL and TUV authorized 3rd-party witness Lab..
5. Core material-Fuse Wire’s manufactured by us.
6. Fuses are Automated-production. 300K BS Fuses / day.
7. Full-automation equipment produced by us.
8. Senior Engineers Team come from famous company.
9. Complete automotive grade Fuse.
10. National High-Tech Enterprises.

DC1000V Ceramic Fast Blow Fuse BS88 Fuse High Breaking Capacity Fuse Made in China
