Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 10A-500A | Rated Voltage: | AC/DC500V |
| Type Of Protection: | AR | Interrupting Rated: | AC100KA/DC20KA At AC/DC500V |
| High Light: | 100amp Lithium Battery Fuse,Bmw Lithium Battery Fuse,Ceramic Bmw Battery Fuse |
||
Lithium battery fuse manufacturer in China
Product description of the battery fuse

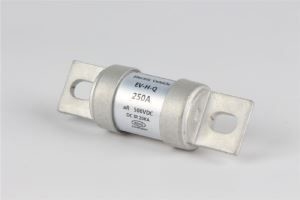

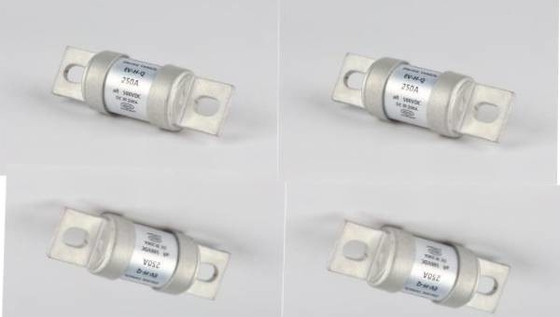

1.This EV battery fuse with the rated current range of 10A~500A,rated voltage of 500VAC/DC,interrupting rated of AC100KA/DC20KA at 500VAC/DC.The installation available in bolt on,bolt Install M8,recommend Torque: 11N.m.We're Dissmann fuse all product's dimension and performance conform to UL248, GB13539, IEC60269, and GB31465.
2.Structure of the EV battery fuse
The fuse is mainly composed of tube body, end cap, fuse and quartz sand.This type of fuse tube is made of ceramic,the end cap is a made of copper alloy tin plating,and fuse wire is made of copper strip.
3.Dimension in milimeter
| Model | Size code | A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-H-Q | VH1 | 94.5 | 30.5 | 52.5 | 74.5 | 9 | 25 | 4 | 13 |
| VH2 | 119.5 | 37 | 56.5 | 88.5 | 11 | 25 | 6 | 15 |
VH1:Rated current range of 80A~350A
VH2:Rated current range of 300A~500A
Conditions of use
Normal use conditions and parameter correction
The fuses work normally under the following normal conditions without any additional correction.
When it exceeds the normal using conditions, some parameters or consultation may need to be corrected if they are within the allowable using conditions. If it is beyond the scope of allowable using conditions, you should consult our company, and carry out the work adaptability evaluation and test of the conditions.
It is recommended that the current value of long-term current shall not be greater than 80% of the rated current. For over-temperature use, please refer to the temperature evaluation curve above.
Altitude: Altitude of the installation site not more than 2000m. If Altitude is more than 2000m, the rated voltage needs to reduce. 2000~4000m, when altitude rise 1000m, the rated voltage reduce 90%.
Ambient Air Temperature
Normal using conditions: -5°C ~ 60°C.
Permitted conditions: -55°C ~ 120°C.
FAQ
How to select the current of the fuse?
Generally, we will calculate our rated current fuse according to 1.5 times of the customer's actual operating current.
