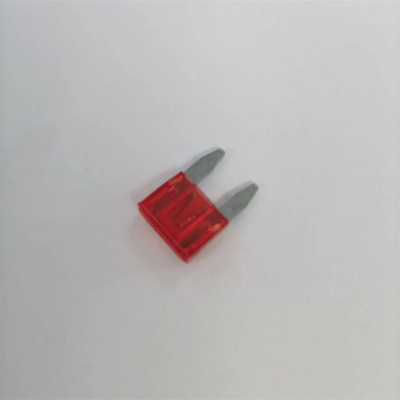

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse
UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

Large Image :  UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL248、ISO8820、RoHS
Model Number: DKN-A-10
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 1000000pcs
Contact Now

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse

Description
Color: Red Rated Voltage: DC32V
Rated Current: 10A Type Protection: Fast-acting
Breaking Capacity: DC1000A Size: Mini Automotive Blade Fuse
High Light:

Mini Automotive Blade Fuses

,

DC32V Low Voltage Fuse

,

10A Low Voltage Fuse

Dissmann® UL Certified DC32V 10A Automotive Blade Fuse Low Voltage Fuse Made in China

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse 0

Specifications of the DKN-A series Automotive Blade Fuse:

1. Dimension of the automotive balde fuse:

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse 1

DKN-A Series Automotive blade fuse



2. DKN-A series fuse model rated voltage is DC32V, it's classification according to rated current :

Model

Product code

Rated current

A

I²t

(A²Sec)

Voltage drop mV

Pigment

DKN-ADKN-A-222.8170(Gray)
DKN-A-339.3152(Violet)
DKN-A-4417120(Pink)
DKN-A-5524128(Tan)
DKN-A-7.57.566135(Brown)
DKN-A-101092108(Red)
DKN-A-151527098(Blue)
DKN-A-202038096(Yellow)
DKN-A-252562085(Clear)
DKN-A-3030112086(Green)

3.DKN-A series Automotive blade fuse Current Characteristic curve:

UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse 2

4.Performance criteria of the Automotive blade fuse

Test current item(A)

Current

Minimum time(s)

Maximum time(s)

110%2A-30A360000∞
135%2A-30A0.75600
200%2A-30A0.155.0
350%2A-30A0.080.5
600%2A-30A0.030.1

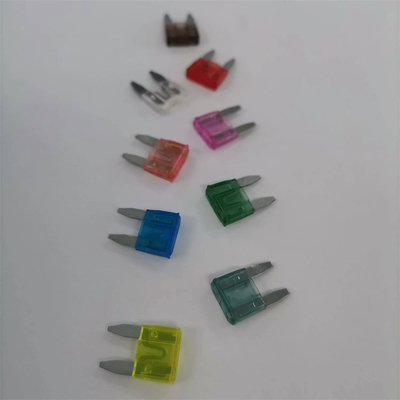

5.Dissmann®  automotive blade fuse, include mini size,medium size,large size:

DC80V 40A Automotive Blade Fuse UL Certified Low Voltage Fuse Supplied by China Factory



6.Other Fuses and fuse holders in our Factory:

DC80V 40A Automotive Blade Fuse UL Certified Low Voltage Fuse Supplied by China Factory

7.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

DC80V 40A Automotive Blade Fuse UL Certified Low Voltage Fuse Supplied by China Factory

8.Dissmann® fuse Factory Display:

DC80V 40A Automotive Blade Fuse UL Certified Low Voltage Fuse Supplied by China Factory


        Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.
