Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 5A-800A | Rated Voltage: | 1000VDC |
| Type Of Protection: | AR | Breaking Capacity: | AC100KA/DC30KA |
| Installtion: | Bolt On | Meet The Requirements: | UL248-20、ISO8820、JASO-D622、EU And RoHS Detective |
| High Light: | 1000VDC High Voltage Fuse,Ceramic Hv Fuse Link,Fiber Hv Fuse Link |
||

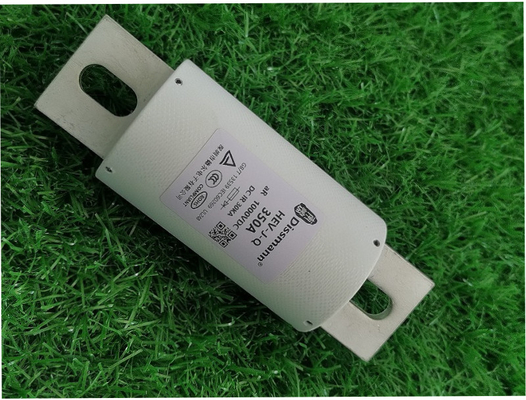

TUV certified HEV fuse supplier in China
Product specification
| Material |
Body :Fiber Caps :Copper alloy Terminal : Copper alloy |
| Characteristic | Use in electric vehicles charging protection boards |
| Interrupting Rating | AC100KA/DC30KA at 1000VDC |
| Ampere Raing | 5A-800A |
| Voltage ( DC) | 1000VDC |
| Voltage(AC) | 1000VAC |
| Permissible Conditions of Use | -40℃～120℃ |
| Green Mark | RoHS |
| Safety Approvals | TUV |
Application of the HEV fuse
This HEV fuse are used extensively in cars, trucks, buses and off-road transportation equipment to protect the cables, wires and electrical components that supply electrical power to operate lights, heaters, air conditioning, radios, power windows and other electrical accessories. They are also used in electric and hybrid vehicles and a variety of electronic applications.
Related standard
This HEV series fuse meet the requirement of UL-248-20,ISO8820,JASO-D622,EU and RoHS detective,etc.
Dimension of the HEV fuse,Choose the dimension according to the rated current.
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HF1 | 124 | 25 | 78 | 100 | 109 | 9 | 18 | 4 | 13.5 |
| HF2 | 117 | 33 | 78 | 93 | 100 | 9 | 22 | 5 | 12.5 |
| HF3 | 139.5 | 38 | 83.5 | 99.5 | 120 | 10.5 | 25 | 6 | 20.7 |
| HF4 | 146.5 | 50 | 89.5 | 106 | 126.5 | 10.5 | 38 | 6 | 20.7 |
| HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 33 |
HF1:HEV-J-Q 5A~80A
HF2:HEV-J-Q 90A~150A
HF3:HEV-J-Q 175A~325A
HF4:HEV-J-Q 350A~500A
HF5:HEV-J-Q 600A~800A
HF1 and HF2 size available in mounting bolt M8 recommened torque 11N·m(Current range of 5A~150A)
HF3 and HF4 size available in mounting bolt M10 recommened torque 20N·m(Current range of 175A~500A)
HF5 size available in mounting bolt M12 recommened torque 28N·m(Current range of 600A~800A)
Material of the HEV fuse
The main boby material is fiber tube,the fuse wire consist of copper or silver and the end cap made of Copper alloy tin plating.
FAQ
Question 1:How to choose a fuse?
Answer:At the beginning,We will send you a customer actual application form.Generally, we need to clear your application field, opperating current and operating voltage, installation methods, certification requirements, and other parameter requirements.
