MEV DC1000V High Voltage Fuse , Ceramic Automotive Fuses With Indicator

MEV DC1000V High Voltage Fuse , Ceramic Automotive Fuses With Indicator
MEV DC1000V High Voltage Fuse , Ceramic Automotive Fuses With Indicator

Large Image :  MEV DC1000V High Voltage Fuse , Ceramic Automotive Fuses With Indicator

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL248-13、ISO8820、JAS0-D622、IEC60269、RoHS
Model Number: MEV-J-F73/G73
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 1000000pcs

MEV DC1000V High Voltage Fuse , Ceramic Automotive Fuses With Indicator

Description
Rated Voltage: DC/AC1000V Rated Current: 160A-800A
Meet The Requirement: UL248-13,ISO8820,JASO-D622,IEC60269,Rohs Type Protection: AR
Breaking Capacity: DC10KA(Time Constant<10ms)
High Light:

MEV High Voltage Fuse

,

DC1000V Ceramic Automotive Fuses

,

Ceramic Automotive Fuses With Indicator

Professional fuse manufacturer/More than 20 years of production experience/ Reliable quality/ Preferential price

 Ceramic Automotive Fuse MEV-J-F73/G73 AC/DC1000V(160A-800A) Fuse

1.Basic information of the Ceramic Automotiva Fuse:

Rated Voltage DC/AC1000V Type Protection aR
Rated Current 160A-800A Breaking Capacity DC10KA(Time constant<10ms)
Meet the Requirement

UL248-13,ISO8820,JASO-D622,IEC60269,Rohs

Remarks ----



2.Overall Dimensions of the Ceramic Automotive Fuse:



Square Ceramic Automotive Fuse with indicator DC1000V High Voltage MEV Fuse

Size Model:MEV-J-73



Square Ceramic Automotive Fuse with indicator DC1000V High Voltage MEV Fuse

Size Model:MEV-J-G73

Difference between the two models is the blade shapes,So the installation method will be different.

3.Product Type of the Ceramic Automotive Fuse:

Model

Product code

Rated current

 A

I²t(A²Sec)

Power consumption

W

Pre-arc Total
MEV-J-F73 MEV-J-F73-160 160 2800 19000 50
MEV-J-F73-200 200 5000 31500 60
MEV-J-F73-250 250 9000 60000 68
MEV-J-F73-315 315 16000 107000 81
MEV-J-F73-350 350 22000 145500 86
MEV-J-F73-400 400 32000 214500 92
MEV-J-F73-450 450 44500 297000 99
MEV-J-F73-500 500 62000 414500 103
MEV-J-F73-550 550 82000 548000 109









MEV-J-G73

MEV-J-G73-250 250 9000 61000 72
MEV-J-G73-315 315 17000 112000 85
MEV-J-G73-350 350 22000 150000 92
MEV-J-G73-400 400 32000 210000 100
MEV-J-G73-450 450 45000 298000 108
MEV-J-G73-500 500 61000 402000 115
MEV-J-G73-550 550 80000 521000 122
MEV-J-G73-630 630 114000 744000 135
MEV-J-G73-700 700 160000 1043000 141
MEV-J-G73-800 800 240000 1562000 155

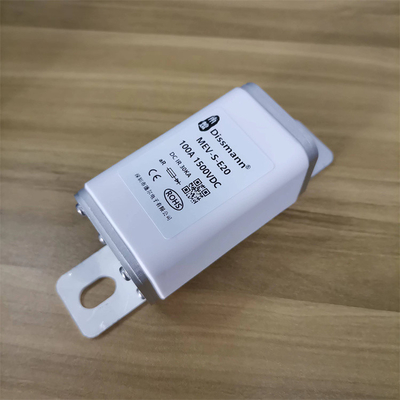

4.Physical Display of the Ceramic MEV Fuse:

Ceramic Automotive Fuse with indicator DC1000V High Voltage MEV Fuse

        The Dissmann MEV Series Fuse are Ceramic Square Fuse.The Rated Voltage include: AC690V/DC750V (10A-400A); AC690V/DC750V(250A-500A);AC/DC600V(40A-630A);AC690V/DC750V(40A-630A);AC690V/DC500V(400A-1250A) etc.
