Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 5A-800A | Rated Voltage: | AC/DC1000V |
| Interrupting Rating: | DC30KA@DC1000V | Type Of Protection: | AR |
| High Light: | Ceramic Automotive Fuses DC30KA,Ceramic Automotive Fuses 1000VDC,EV Charger Ceramic Automotive Fuses |
||

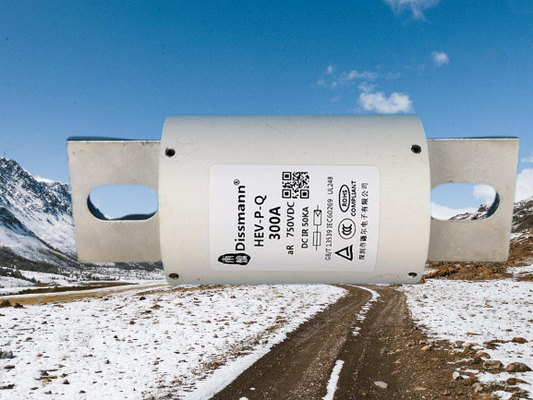

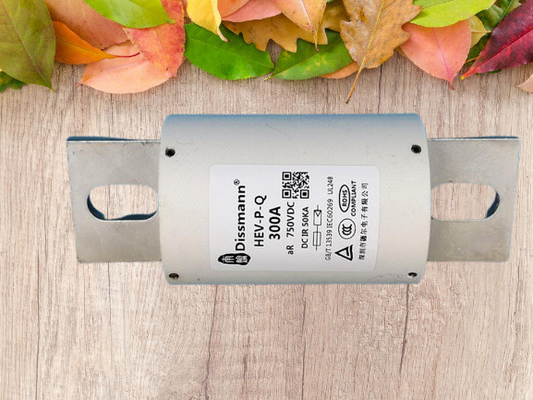

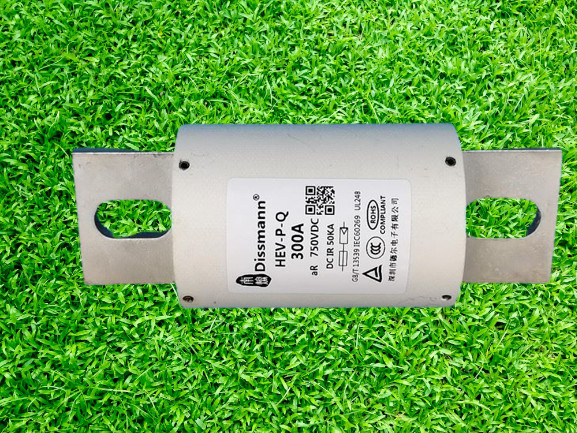

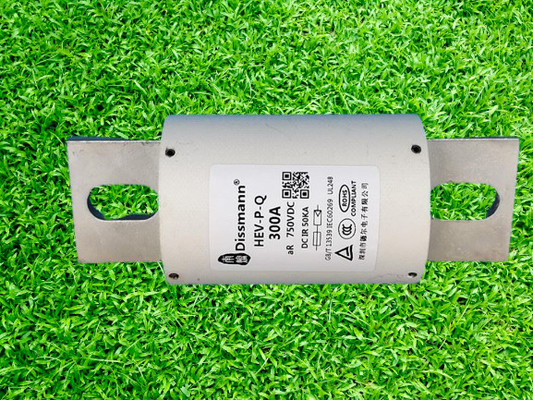

Ceramic EV Charger fuse designed for electric vehicle charging pile
Application for EV charger
This series fuse are rated 1000 volts with ampere ratings from 5 to 800 amps. These types of fuses are used extensively in cars, trucks, buses and off-road transportation equipment to protect the cables, wires and electrical components that supply electrical power to operate lights, heaters, air conditioning, radios, power windows and other electrical accessories. They are also used in electric and hybrid vehicles and a variety of electronic applications.
Feature data
| Model | Rated Current(A) | 100% voltage drop (mv) | Size code | Installation |
| HEV-J-Q-300 | 300 | 298 | HF3 |
Mounting Bolt M10, Recommend Torque: 21N.m |
Product dimension of the HEV fuse
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HF3 | 139.5 | 38 | 83.5 | 99.5 | 120 | 10.5 | 25 | 6 | 20.7 |
Material of the EV charger fuse
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
Packaging Quantity
HF4: 2 fuse links per plastic box.
Each long box is packed with 1 plastic box, a total of 2 fuse links, the size of the long box is 156mm long x 120mm wide x 54mm high.
Each large box contains 20 long strip boxes, a total of 40 fuse links, the size of the large box is 342mm long x 258mm wide x 285mm high.
FAQ:
Question 1:What is your fuse test condition?
Answer 1:Our fuse is tested under the condition of 25 ± 5 ° C in the laboratory.
