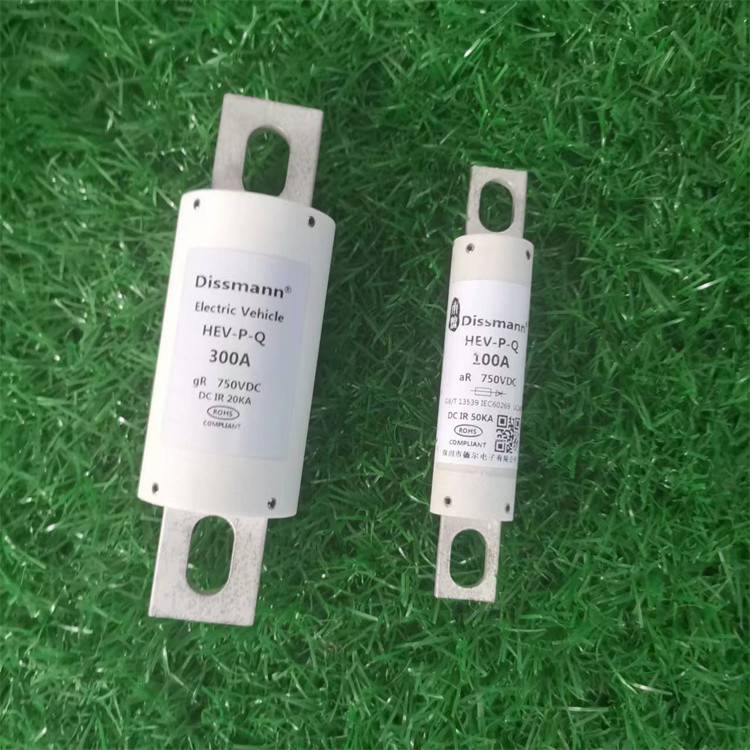

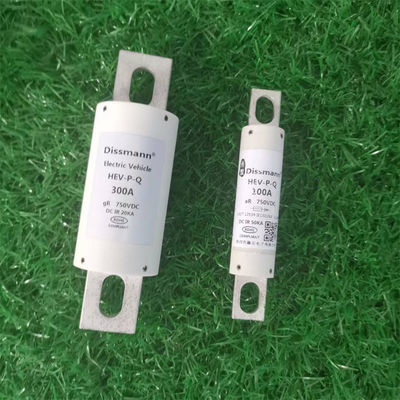

Product Details:
|
| Material: | Fiber Tube | Color: | White |
|---|---|---|---|
| Rated Voltage: | AC/DC1000V | Rated Current: | 5A-800A |
| Type Protection: | AR | Breaking Capacity: | AC100KA / DC30KA |
| Meet The Requirement: | UL248-20、 ISO8820、 JASO-D622、 RoHS | Application: | High Current Automotive Fuse For Electric Vehicle |
| High Light: | Fiber Tube HEV Fuses,High Current Automotive Fuses DC1000V,High Current HEV Fuses |
||
| Size Code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HF1 | 124 | 25 | 78 | 100 | 109 | 9 | 18 | 4 | 13.5 |
| HF2 | 117 | 33 | 78 | 93 | 100 | 9 | 22 | 5 | 12.5 |
| HF3 | 139.5 | 38 | 83.5 | 99.5 | 120 | 10.5 | 25 | 6 | 20.7 |
| HF4 | 146.5 | 50 | 89.5 | 106 | 126.5 | 10.5 | 38 | 6 | 20.7 |
| HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 33 |
|
Model |
Rated CurrentA |
I2t(A2s) |
Power dissipation W |
Size code |
Install |
|
| 弧前 | 总 | |||||
| HEV-J-Q-5 | 5A | 20 | 115 | 1.8 | HF1 |
Mounting Bolt M8 recommended torque 11N·m |
| HEV-J-Q-10 | 10A | 30 | 170 | 2.2 | ||
| HEV-J-Q-15 | 15A | 48 | 220 | 3.1 | ||
| HEV-J-Q-20 | 20A | 72 | 360 | 3.6 | ||
| HEV-J-Q-25 | 25A | 85 | 510 | 4.2 | ||
| HEV-J-Q-30 | 30A | 110 | 830 | 5.1 | ||
| HEV-J-Q-35 | 35A | 180 | 1250 | 6.3 | ||
| HEV-J-Q-40 | 40A | 290 | 1650 | 7.8 | ||
| HEV-J-Q-45 | 45A | 350 | 1900 | 8.5 | ||
| HEV-J-Q-50 | 50A | 440 | 2450 | 10.0 | ||
| HEV-J-Q-60 | 60A | 600 | 3500 | 12.5 | ||
| HEV-J-Q-70 | 70A | 820 | 5500 | 14 | ||
| HEV-J-Q-80 | 80A | 1050 | 6500 | 16 | ||
| HEV-J-Q-90 | 90A | 1800 | 10500 | 17 | HF2 | |
| HEV-J-Q-100 | 100A | 2300 | 12000 | 18 | ||
| HEV-J-Q-125 | 125A | 3400 | 21000 | 20 | ||
| HEV-J-Q-150 | 150A | 4900 | 25500 | 27 | ||
| HEV-J-Q-175 | 175A | 9200 | 40000 | 30 | HF3 |
Mounting Bolt M10 recommended torque 20N·m |
| HEV-J-Q-200 | 200A | 15000 | 60000 | 32 | ||
| HEV-J-Q-225 | 225A | 19000 | 105000 | 40 | ||
| HEV-J-Q-250 | 250A | 24000 | 113000 | 47 | ||
| HEV-J-Q-275 | 275A | 25000 | 130000 | 49 | ||
| HEV-J-Q-300 | 300A | 26000 | 160000 | 52 | ||
| HEV-J-Q-325 | 325A | 33000 | 180000 | 55 | ||
| HEV-J-Q-350 | 350A | 42000 | 230000 | 60 | HF4 | |
| HEV-J-Q-400 | 400A | 71000 | 320000 | 65 | ||
| HEV-J-Q-450 | 450A | 78000 | 300000 | 80 | ||
| HEV-J-Q-500 | 500A | 105000 | 350000 | 95 | ||
| HEV-J-Q-600 | 600A | 163000 | 530000 | 105 | HF5 |
Mounting bolt M12 recommended torque 28N·m |
| HEV-J-Q-700 | 700A | 320000 | 680000 | 155 | ||
| HEV-J-Q-800 | 800A | 420000 | 870000 | 185 | ||
