UL Certified DC80V 30A Low Voltage Fuse For 5G Communication Module System

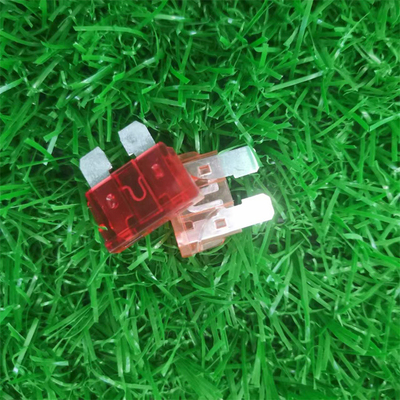

Large Image : UL Certified DC80V 30A Low Voltage Fuse For 5G Communication Module System

Product Details:

Place of Origin:	China
Brand Name:	Dissmann
Certification:	UL
Model Number:	DFN-A-40

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Carton Packing
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T
Supply Ability:	1000000pcs

Contact Now

UL Certified DC80V 30A Low Voltage Fuse For 5G Communication Module System

Description

Color:	5 Colors According To The Rated Current	Rated Voltage:	DC32V
Rated Current:	30A	Characteristic:	Fast-acting
Breaking Capacity:	DC1000A	Application:	For 5G Communication Module System
High Light:	DC80V Automotive Blade Fuse , 30A Low Voltage Fuse , 5G Communication Low Voltage Fuse

Dissmann® UL Certified DC80V 30A Low Voltage Automotive Blade Fuse Made in China Factory

UL Certified Automotive Blade Fuse DC32V 40A Low Voltage Fuse for 5G Conmunication Module System

Specifications of the DFN-A series Automotive Blade Fuse:

1.Size of the automotive balde fuse:

UL Certified Automotive Blade Fuse DC80V 30A Low Voltage Fuse for 5G Conmunication Module System

2.DFN-E series fuse model rated voltage is DC80V, it's classification according to rated current :

Model 型号	Product code 产品代码	Rated current 额定电流 A	I²t (A²Sec)	Voltage drop 电压降 mV	Pigment 颜色
DFN-E	DFN-E-20	20	3500	100	黄色(Yellow)
	DFN-E-30	30	8200	97	绿色(Green)
	DFN-E-40	40	14200	93	橙色(Orange)
	DFN-E-50	50	22500	90	红色(red)
	DFN-E-60	60	23000	95	蓝色(Blue)

3.DFN-E series fuse Current Characteristic curve of the fuse:

UL Certified Automotive Blade Fuse DC80V 30A Low Voltage Fuse for 5G Conmunication Module System

4.Performance criteria of the automotive blade fuse

测试电流项目 Test current item(A)	电流 Current	最小时间 Minimum time(s)	最大时间 Maximum time(s)
110%	20A-60A	360000s	-
150%	20A-60A	-	1800s
200%	20A-60A	2s	60s
350%	20A-60A	0.20s	7s
600%	20A-60A	0.040s	1s

5.Dissmann® automotive blade fuse, include mini size,medium size,large size:

6.Other Fuses and fuse holders in our Factory:

7.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

8.Dissmann® fuse Factory Display:

Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.
