Product Details:
|
| Material: | Zinc Alloy Tin Plating | Color: | Red,Blue,Black,Brown,Blear,Yellow,Green |
|---|---|---|---|
| Rated Current: | 1A-40A | Rated Voltage: | DC32V |
| Breaking Capacity: | DC1000A | Meet The Requirement: | UL248、ISO8820、EU And RoHS |
| High Light: | DC32V Car Blade Fuse,RoHS Car Blade Fuse,ATC Automotive Blade Fuses |
||

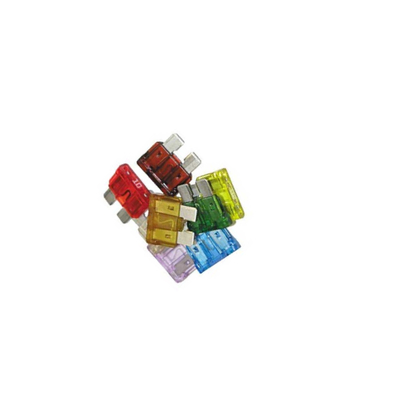

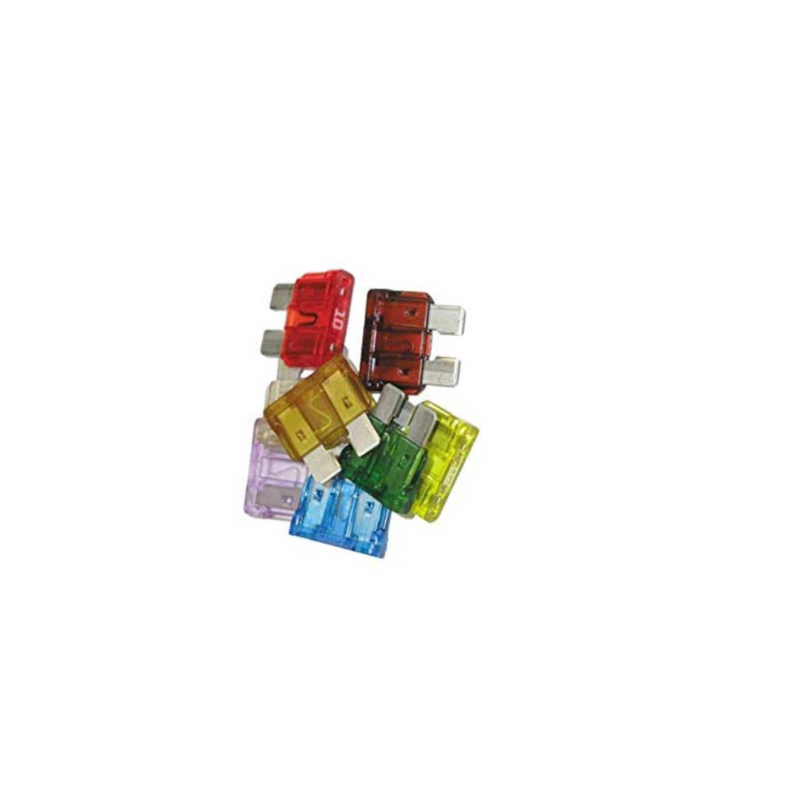

Famous car blade fuse in China factory
Application of car blade fuse
This car blade fuses are rated from 32 to 80 volts with ampere ratings from 1amp to 400 amps. This types of fuses are used extensively in cars, trucks, buses and off-road transportation equipment to protect the cables, wires and electrical components that supply electrical power to operate lights, heaters, air conditioning, radios, power windows and other electrical accessories. They are also used in electric and hybrid vehicles and a variety of electronic applications.
Structure of the car blade fuse
The car blade fuse is composed of transparent shells, fuses, and tentacles. The shell is made of Polycarbonate, and the annex is Zinc Aloy Tin Plating.
Product dimension in milimeter
Product type of the car blade fuse
|
Model
|
Product code |
Rated current |
I²t (A²Sec) |
Voltage drop |
Pigment |
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | (Orange) |
Current characteristic curve
Why choose our Dissmann Fuse?
The DISSMANN R & D team was established in 2000 and began to be committed to the independent R & D design and investment in the fuse industry. In the early 20th century's electronics industry, our companies stood out in this industry with glass pipe fuse and BS1362 fuse, and became the preferred supplier of many small home appliance manufacturers. Our company is a member of the Standardization Committee of China Small Fractives and Low -voltage Fuse. It participates in the formulation and modification of series of national standards such as GB9364 and GB13539. It has 4 invention patents and 12 practical patents.
Since the battery has been used in mobile phones and laptops, we have led the fuse technology used in DC circuit protection.
Based on these experiences and achievements, we have developed and added DC fuses for protecting EV/HEV/solar photovoltaic, high -voltage, large current, and high breaks.
Many of our products have been used as car components.
