Product Details:
|
| Material: | Electric Wood Shell | Color: | Black |
|---|---|---|---|
| Rated Current: | 10A-500A | Rated Voltage: | 80VDC/125VAC |
| Breaking Capacity: | DC2700A | Installation: | Bolt On |
| Keyword: | Car Blade Fuse | Application: | Automobile,BMS Battery |
| High Light: | CCC Car Blade Fuse,Copper Alloy Auto Blade Fuse,32VDC Auto Blade Fuse |
||

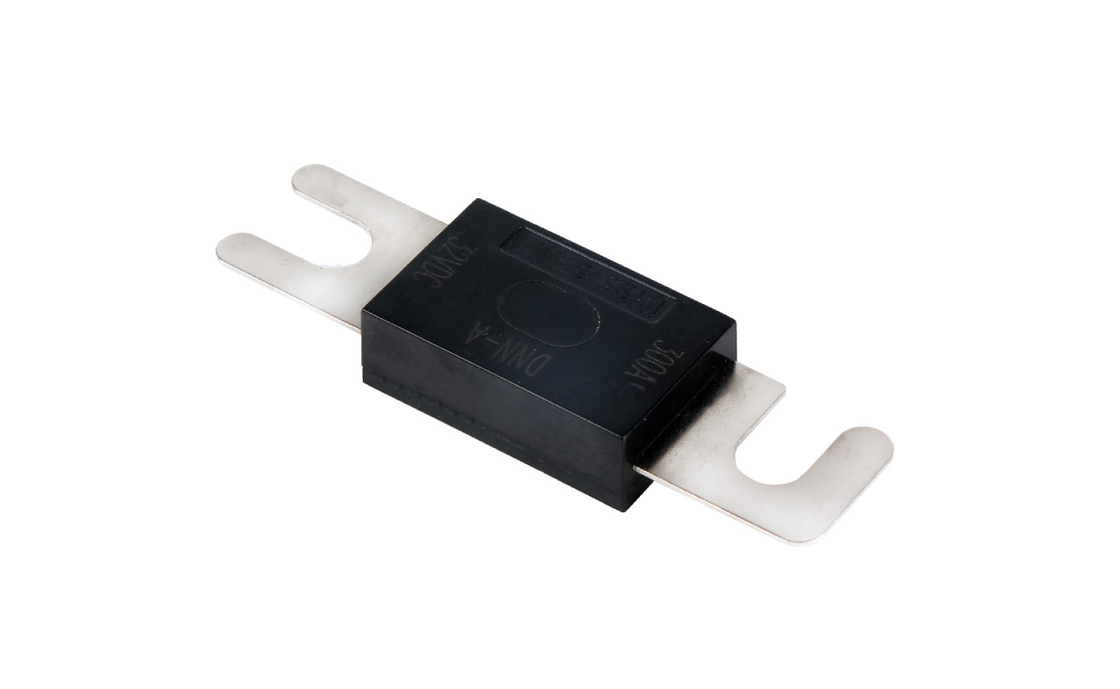

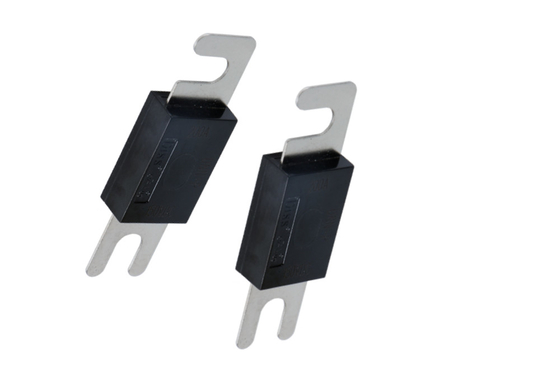

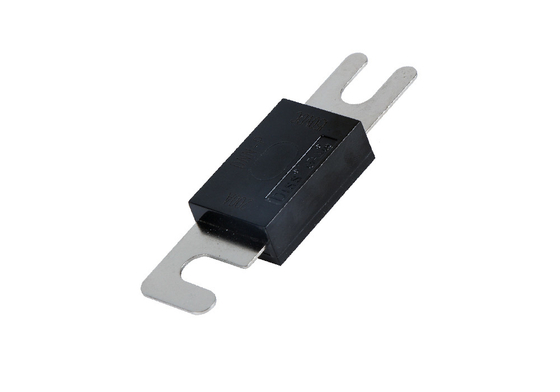

80VDC automotive bolted tag fuse made in China factory
Product specification of the car blade fuse
Rated Voltage:80VDC/125VAC
Rated Current:10A-500A
Breaking Capacity:DC2700A
Meet the Requirement:UL248-13,ISO8820,JASO-D622,RoHS and EU Detective.
Type of Protection:aR
Car blade fuse dimension in milimeter
Manufacturing material
| Component name | Material |
| Contact the foot | Copper alloy |
| Noumenon | Electric wood shell |
Performance criteria
| Load | Opening time | |
| 10A～500A | ||
| min | max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(200A or below) | 0 | 100 |
| 200%(200A or above) | 0 | 300 |
| 250%(200A or below) | 0 | 60 |
| 250%(200A or above) | 0.8 | 120 |
| 600% | 0.02 | 10 |
| Model | Product code | Rated current | Voltage drop | Installation requirement |
| DNN-H | DNN-H-35 | 35 | 130 | Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-H-40 | 40 | 125 | ||
| DNN-H-50 | 50 | 120 | ||
| DNN-H-60 | 60 | 116 | ||
| DNN-H-80 | 80 | 112 | ||
| DNN-H-100 | 100 | 110 | ||
| DNN-H-125 | 125 | 105 | ||
| DNN-H-130 | 130 | 100 | ||
| DNN-H-150 | 150 | 96 | ||
| DNN-H-175 | 175 | 90 | ||
| DNN-H-200 | 200 | 86 | ||
| DNN-H-225 | 225 | 83 | ||
| DNN-H-250 | 250 | 80 | ||
| DNN-H-275 | 275 | 77 | ||
| DNN-H-300 | 300 | 75 | ||
| DNN-H-325 | 325 | 83 | ||
| DNN-H-350 | 350 | 81 | ||
| DNN-H-400 | 400 | 80 | ||
| DNN-H-425 | 425 | 78 | ||
| DNN-H-450 | 450 | 78 | ||
| DNN-H-500 | 500 | 76 |
FAQ
Question: What are the characteristics of the car fuse?
Answer: The characteristics of the car fuse: UL certified, fast fuse, fireproof, small size, obvious voltage type, the fuse color is easy to distinguish, shockproof.
