Product Details:
|
| Material: | Electric Wood Shell | Color: | Black |
|---|---|---|---|
| Rated Current: | 10A-500A | Rated Voltage: | 32VDC |
| Breaking Capacity: | DC2700A | Installation: | Bolt On |
| High Light: | Time Lag Automotive Blade Fuse,500A Time Lag Fuse,32VDC Time Lag Fuse |
||

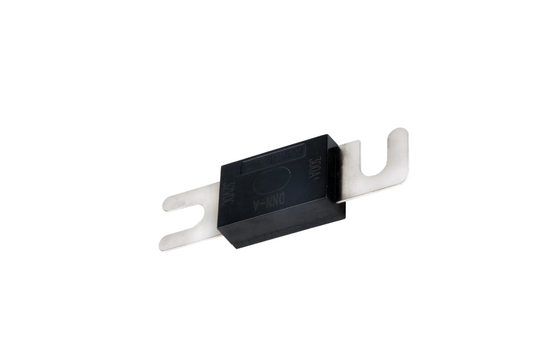

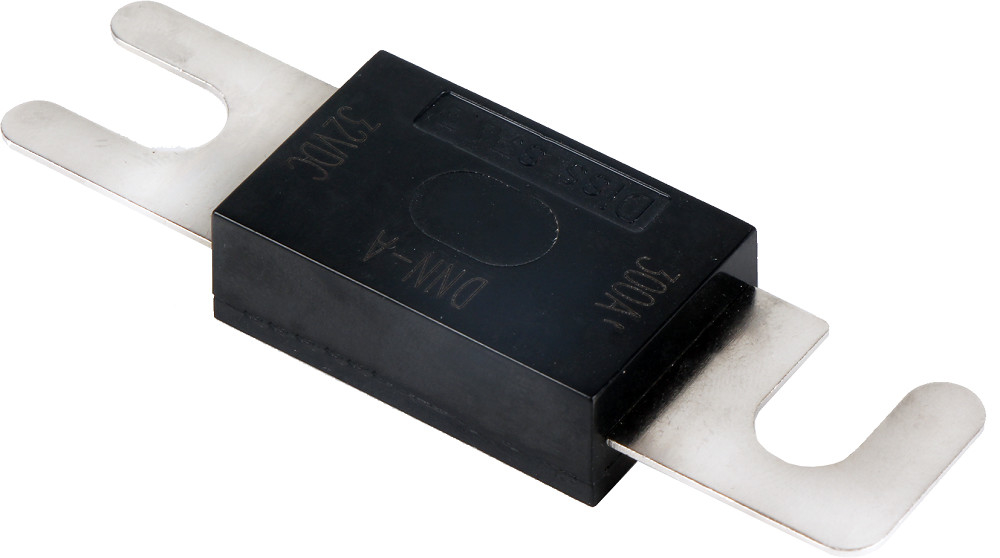

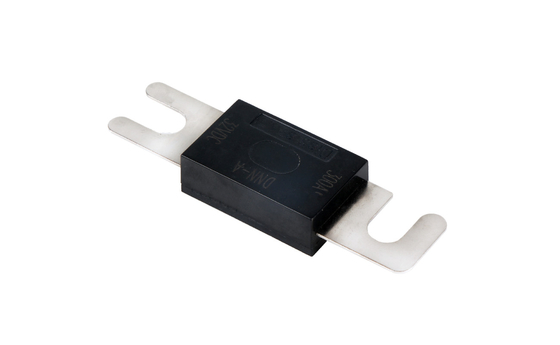

32VDC Auto blade fuse main us on car supply in China factory
Application of the auto blade fuse
This blade type fuse applicable to rated voltage of 32VDC,rated current range of 10A-500A,breaking capacity of DC2700A,applications in Electric Vehicles (EV) or Hybrid EV are relatively new in the industry and they could be regarded as a crossover product between low voltage fuse and automotive fuse.
Product specification of the car blade fuse
| Material |
Body :Electric wood shell Caps :Copper alloy Terminal : Copper alloy |
| Characteristic | Use in electric vehicles charging protection boards |
| Interrupting Rating |
2700A at 32VDC |
| Ampere Raing | 10A-500A |
| Voltage ( DC) | 32VDC |
|
Permissible Conditions of Use |
-40℃～120℃ |
| Green Mark | RoHS |
| Safety Approvals |  |
Car blade fuse dimension in milimeter
Performance criteria
| Load | Opening time | |
| 10A～500A | ||
| min | max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(200A or below) | 0 | 100 |
| 200%(200A or above) | 0 | 300 |
| 250%(200A or below) | 0 | 60 |
| 250%(200A or above) | 0.8 | 120 |
| 600% | 0.02 | 10 |
| Model | Product code | Rated current | Installation requirement |
| DNN-A | DNN-A-35 | 35 | Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-A-40 | 40 | ||
| DNN-A-50 | 50 | ||
| DNN-A-60 | 60 | ||
| DNN-A-80 | 80 | ||
| DNN-A-100 | 100 | ||
| DNN-A-125 | 125 | ||
| DNN-A-130 | 130 | ||
| DNN-A-150 | 150 | ||
| DNN-A-175 | 175 | ||
| DNN-A-200 | 200 | ||
| DNN-A-225 | 225 | ||
| DNN-A-250 | 250 | ||
| DNN-A-275 | 275 | ||
| DNN-A-300 | 300 | ||
| DNN-A-325 | 325 | ||
| DNN-A-350 | 350 | ||
| DNN-A-400 | 400 | ||
| DNN-A-425 | 425 | ||
| DNN-A-450 | 450 | ||
| DNN-A-500 | 500 |
FAQ
Question: What are the characteristics of the car fuse?
Answer: The characteristics of the car fuse: UL certified, fast fuse, fireproof, small size, obvious voltage type, the fuse color is easy to distinguish, shockproof.
