DC32V 20A Automotive Blade Fuse , UL Certified Low Voltage Fuse

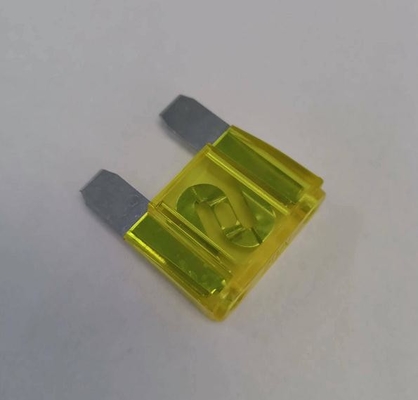

Large Image : DC32V 20A Automotive Blade Fuse , UL Certified Low Voltage Fuse

Product Details:

Place of Origin:	China
Brand Name:	Dissmann
Certification:	UL248、ISO8820、RoHS
Model Number:	DFN-A

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Carton Packing
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T
Supply Ability:	1000000pcs

Contact Now

DC32V 20A Automotive Blade Fuse , UL Certified Low Voltage Fuse

Description

Color:	Yellow	Rated Voltage:	DC32V
Rated Current:	20A	Type Protection:	Fast-acting
Breaking Capacity:	DC1000A	Size:	Medium Automotive Blade Fuse
High Light:	UL248 Automotive Blade Fuse , Automotive Blade Fuse 20A , DC1000A Low Voltage Fuse

Dissmann® UL Certified DC32V 20A Automotive Blade Fuse Low Voltage Fuse

UL Certified DC32V 20A Automotive Blade Fuse Low Voltage Fuse

Specifications of the DFN-A series Automotive Blade Fuse:

1.Shape and mounting dimensions of the blade fuse:

UL Certified DC32V 20A Automotive Blade Fuse Low Voltage Fuse made in China

2.DFN-A series fuse model classification according to rated current :

Model 型号	Product code 产品代码	Rated current 额定电流 A	I²t (A²Sec)	Voltage drop 电压降 mV	Pigment 颜色
DFN-A	DFN-A-1	1	0.4	174	黑色(Black)
	DFN-A-2	2	1.5	140	灰色(Gray)
	DFN-A-3	3	6.3	137	浅紫色(Violet)
	DFN-A-4	4	13	135	粉红色(Pink)
	DFN-A-5	5	25	125	浅棕色(Tan)
	DFN-A-7.5	7.5	56	115	棕色(Brown)
	DFN-A-10	10	110	110	红色(Red)
	DFN-A-15	15	295	102	蓝色(Blue)
	DFN-A-20	20	480	96	黄色(Yellow)
	DFN-A-25	25	1000	90	透明色(Clear)
	DFN-A-30	30	1460	86	绿色(Green)
	DFN-A-35	35	2205	88	深绿色(Dark green)
	DFN-A-40	40	3200	95	橙色(Orange)

3.DFN-A series fuse Current Characteristic curve of the fuse:

UL Certified DC32V 20A Automotive Blade Fuse Low Voltage Fuse made in China

4.Dissmann® fuses can produce different kinds of automotive blade fuse, include mini size,medium size,large size:

5.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

Ceramic Automotive Car Fuse for Electric Vehicle Driving Power System

Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.
