Product Details:
|
| Material: | Fiber Tube | Colour: | White |
|---|---|---|---|
| Breaking Capacity: | DC10KA | Protection Type: | AR |
| Advantage: | HEV Fuse For Automotive | Rated Voltage: | AC250V/DC150V |
| Rated Current: | 800A | Certification: | UL248、ISO8820、JAS0-D622、RoHS |
| Product Model: | HEV-A-Q-800 | ||
| High Light: | High Current Automotive Fuses DC150V,High Current Automotive Fuses 800A,HEV Fuse For Cars |
||

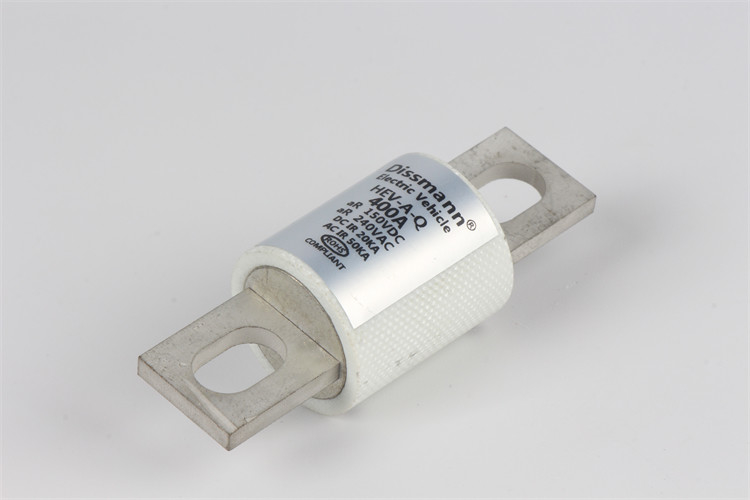

Dissmann®HEV-A-Q Module series fuses offers rated current 5A- 800 A, rated voltage AC250V/DC150V. Hybrid Electric Vehicle (HEV) fuses have been tested to automotive quality standards for environmental reliability, transient current cycling, and device electrical and fusing characteristics. They are RoHS compliant and halogen free,and certified UL248-20,ISO8820,JAS0-D622.
1.Shape and mounting dimensions of the HEV fuses:
| Size Code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HW1 | 68.2 | 25 | 29 | 44 | 53 | 9 | 18 | 3.3 | 13.5 |
| HW2 | 94 | 38 | 38 | 54 | 74.5 | 10.5 | 25 | 6 | 20.7 |
|
Model 型号 |
Rated Current 额定电流A |
I2t(A2s) |
Power dissipation 功耗W |
Size code 尺寸代码 |
Install 安装 |
|
| 弧前 | 总 | |||||
| HEV-A-Q-70 | 70A | 460 | 3920 | 6.8 | HW1 |
Mounting Bolt M8 recommended torque 11N·m 安装螺栓M8推荐扭矩11N·m |
| HEV-A-Q-80 | 80A | 665 | 5850 | 7.5 | ||
| HEV-A-Q-100 | 100A | 1120 | 11100 | 8.8 | ||
| HEV-A-Q-125 | 125A | 1840 | 17600 | 11.0 | ||
| HEV-A-Q-150 | 150A | 2650 | 25400 | 12.8 | ||
| HEV-A-Q-200 | 200A | 4750 | 44000 | 17.5 | ||
| HEV-A-Q-250 | 250A | 7420 | 68500 | 22.5 | ||
| HEV-A-Q-300 | 300A | 11000 | 99000 | 26.5 | ||
| HEV-A-Q-350 | 350A | 14800 | 139000 | 30.4 | ||
| HEV-A-Q-400 | 400A | 18800 | 180000 | 34.8 | ||
| HEV-A-Q-500 | 500A | 36000 | 110000 | 34.5 | HW2 |
Mounting Bolt M10 recommended torque 20N·m 安装螺栓M10推荐扭矩20N·m |
| HEV-A-Q-600 | 600A | 43500 | 125000 | 45.6 | ||
| HEV-A-Q-700 | 700A | 68000 | 198000 | 48.5 | ||
| HEV-A-Q-800 | 800A | 86000 | 255000 | 57.0 | ||
| HEV-A-Q-1000 | 1000A | 152000 | 470000 | 59.5 | ||
